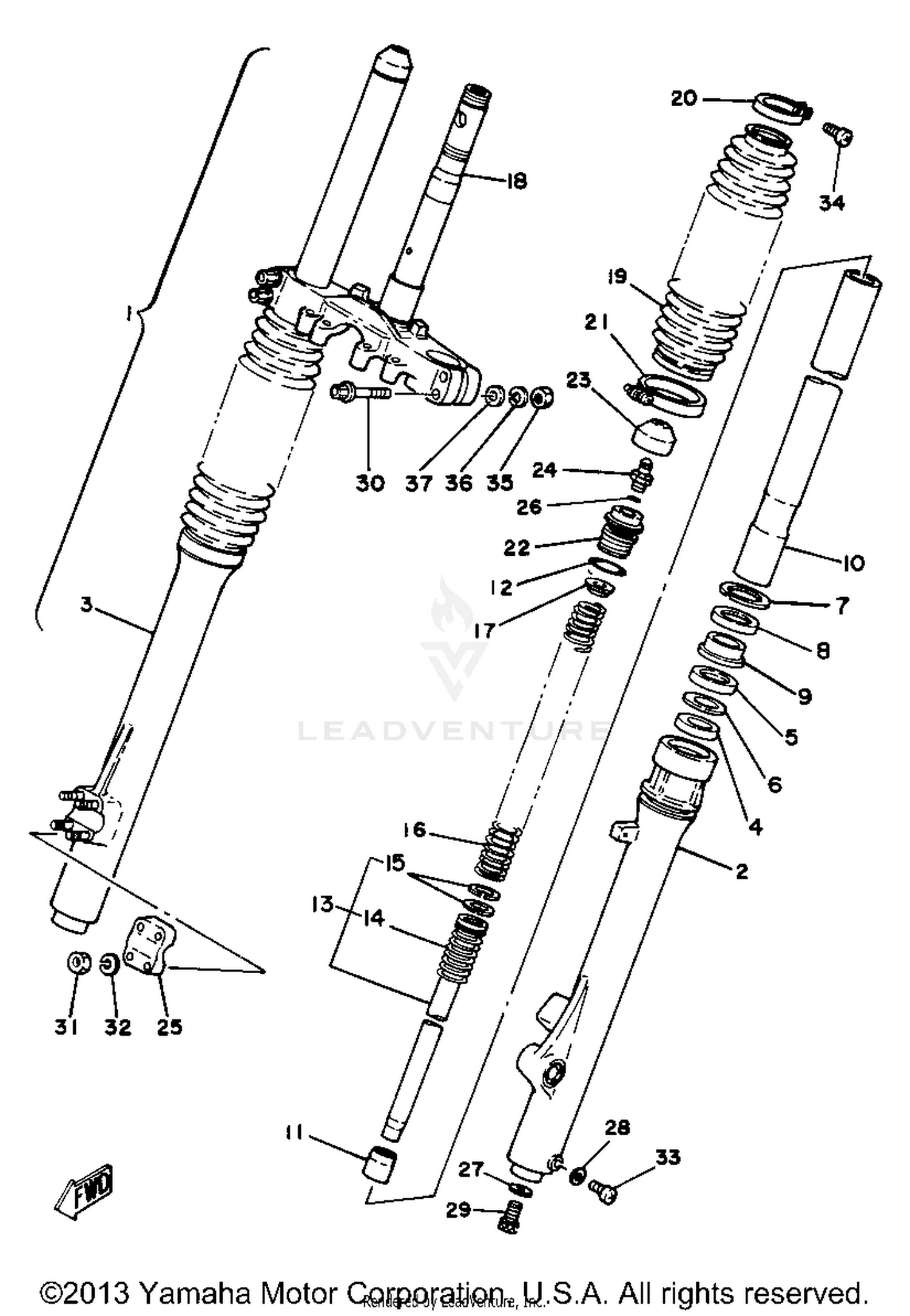

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
4V2-23101-L0-00
|
$333.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
4V2-23126-L1-00
|
$206.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
4V2-23136-L0-00
|
$167.99 | ||
|
Unavailable |
|||
|
#4
METAL, SLIDE 1
2YK-23125-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
3EN-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
4V2-23146-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, SNAP
3R4-23153-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, DUST
3R4-23144-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#9
COVER, DUST SEAL
3R4-23148-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#10
INNER TUBE 1
4V2-23110-L0-00
|
$187.99 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
3R4-23173-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#12
GASKET
1W4-23114-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CYLINDER, FRTFRK
4V2-23170-L0-00
|
$44.08 | ||
|
Unavailable |
|||
|
#14
SPRING, REBOUND
1W4-23151-L0-00
|
$7.46 | ||
|
Unavailable |
|||
|
#15
RING, PISTON FRTFRK
4V2-23157-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
SPRING, FRONT FORK
3R4-23141-10-00
|
$31.56 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK SOFT
4V2-23141-10-00
|
$18.66 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK HARD
4V2-23141-20-00
|
$33.20 | ||
|
Unavailable |
|||
|
#17
SEAT, SPRING UPPER
1W4-23142-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
UNDER BRACKET
4V2-23340-L0-33
|
$187.99 | ||
|
Unavailable |
|||
|
#19
BOOT, FRONT FORK
3R4-23191-M0-00
|
$70.99 | ||
|
Unavailable |
|||
|
#20
BAND
1W4-23192-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#21
BAND
1W4-23489-L0-00
|
$7.52 | ||
|
Unavailable |
|||
|
#22
BOLT, CAP
1W4-23111-L1-00
|
$29.99 | ||
|
Unavailable |
|||
|
#23
COVER, VALVE
1W1-23185-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
AIR VALVE
509-23190-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#25
HOLDER, AXLE
4V2-23167-L0-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
509-23163-L0-00
|
$3.75 | ||
|
Unavailable |
|||
|
#27
GASKET
2K8-23158-L0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
3R4-23181-L0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT 1
4V2-23346-L0-00
|
$6.66 | ||
|
Unavailable |
|||
|
#31
NUT
95311-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
98506-04020-00
Superseded by 98517-04020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
