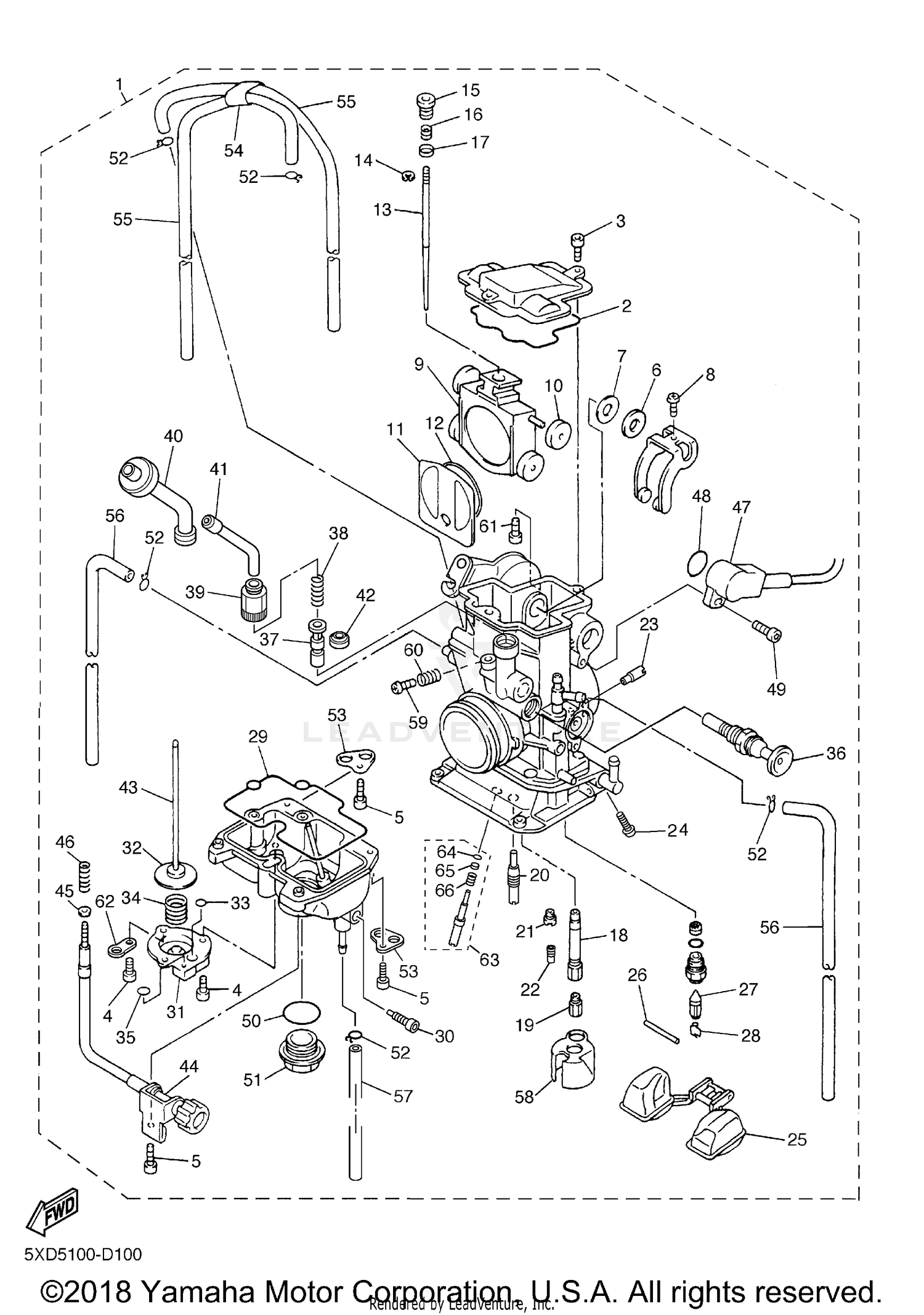

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
5XD-14101-50-00
|
$1,483.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
5JG-14959-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-04012-00
Superseded by 91317-04012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
688-14592-00-00
Superseded by 98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-08045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
5JG-14951-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, ADJUST
5JG-14522-00-00
Superseded by 5JG-14522-09-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, VACUUM CONTROL
5JG-14388-00-00
|
$543.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER
3TJ-14267-40-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, NEEDLE
5JG-14546-01-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL
4FN-14997-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFLR)
5TA-14916-LR-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFLN)
5TA-14916-LN-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFLP)
5TA-14916-LP-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFLQ)
5TA-14916-L1-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFLS)
5TA-14916-LS-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFLT)
5TA-14916-LT-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFLU)
5TA-14916-LU-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFPN)
5TA-14916-PN-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFPP)
5TA-14916-PP-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFPQ)
5TA-14916-P1-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFPR)
5TA-14916-PR-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFPS)
5TA-14916-PS-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFPT)
5TA-14916-PT-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#NFPU)
5TA-14916-PU-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
3TJ-14159-40-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, ADJUST
5JG-14521-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
5JG-14275-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
5JG-14264-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NOZZLE, MAIN
5XD-14947-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#175)
4MX-14943-42-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#165)
4MX-14943-40-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#168)
4MX-14943-91-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#170)
4MX-14943-41-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#172)
4MX-14943-92-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#178)
4MX-14943-93-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#158)
4MX-14943-89-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#160)
4MX-14943-39-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#162)
4MX-14943-90-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#152)
4MX-14943-88-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#155)
4MX-14943-38-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#48)
4MX-14948-06-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#42)
4MX-14948-04-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#45)
4MX-14948-05-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#50)
4MX-14948-07-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#52)
4MX-14948-08-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#38)
4MX-14948-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#40)
4MX-14948-03-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET (#68)
3TJ-1494F-14-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET (#70)
3TJ-1494F-15-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET (#72)
3TJ-1494F-16-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET (#75)
3TJ-1494F-17-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET (#78)
3TJ-1494F-18-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#40)
4TJ-1494F-03-00
Superseded by 4JT-1494F-03-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#35)
4TJ-1494F-01-00
Superseded by 4JT-1494F-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#45)
4TJ-1494F-05-00
Superseded by 4JT-1494F-05-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#50)
4TJ-1494F-07-00
Superseded by 4JT-1494F-07-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#55)
4TJ-1494F-09-00
Superseded by 4JT-1494F-09-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, MAIN (#100)
5TA-14943-27-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
5XD-14325-00-00
Superseded by 5XD-14325-09-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLOAT
4SR-14985-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, FLOAT ARM
676-14548-00-00
Superseded by 663-14548-00-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
PILOT SCREW SET
4MX-14392-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
633-14159-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, FLOAT CHAMBER
5JG-14984-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG, DRAIN
3TJ-14191-40-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER 1
3TJ-14293-40-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DIAPHRAGM, ACC PUMP (DPH#25)
5JG-14940-18-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DIAPHRAGM, ACC PUMP (DPH#35)
5JG-14940-17-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DIAPHRAGM, ACC PUMP (DPH#45)
5JG-14940-16-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
3TJ-14536-40-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, DIAPHRAGM
3TJ-14933-40-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
6H4-14561-00-00
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUNGER, STARTER
5TA-14171-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUNGER, STARTER
5TA-14371-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, PLUNGER
5TA-14335-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
5TA-14991-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CAP, PLUNGER
5TA-14374-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
GUIDE, CABLE
5TA-14155-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SEAL
5TA-14997-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
ROD, STARTER
5JG-14379-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, THROTTLE
5JG-14922-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLATE
90201-08410-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRING, THROTTLE STOP
5TA-14934-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
THROTTLE SENSOR ASSY
5TA-85885-00-00
Superseded by 5TA-85885-01-00
|
$286.99 | ||
|
Unavailable |
|||
|
#48
O-RING
5NX-14562-00-00
Superseded by 33D-14562-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW
5NX-14216-00-00
Superseded by 1DX-14216-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
O-RING
4MX-14561-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
PLUG, SCREW
4MX-14115-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLIP
3TJ-14137-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
PLATE
5BE-14146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
HOLDER
5TA-14261-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
PIPE
5TA-14196-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIPE
5TA-14197-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
HOSE
5TJ-14987-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
PLATE
5JG-14346-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
SCREW
5JG-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
SPRING, ADJUST SCREW
5JG-14531-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW
5JG-14591-00-00
Superseded by 5JG-14591-09-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
PLATE
5PA-14146-00-00
|
$4.95 | ||
|
Unavailable |
|||
|
#63
PILOT SCREW SET
5NL-14105-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
O-RING
3TJ-14562-40-00
Superseded by 8ES-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
WASHER
3TJ-14952-40-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
COIL, SPRING
3TJ-14160-40-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
