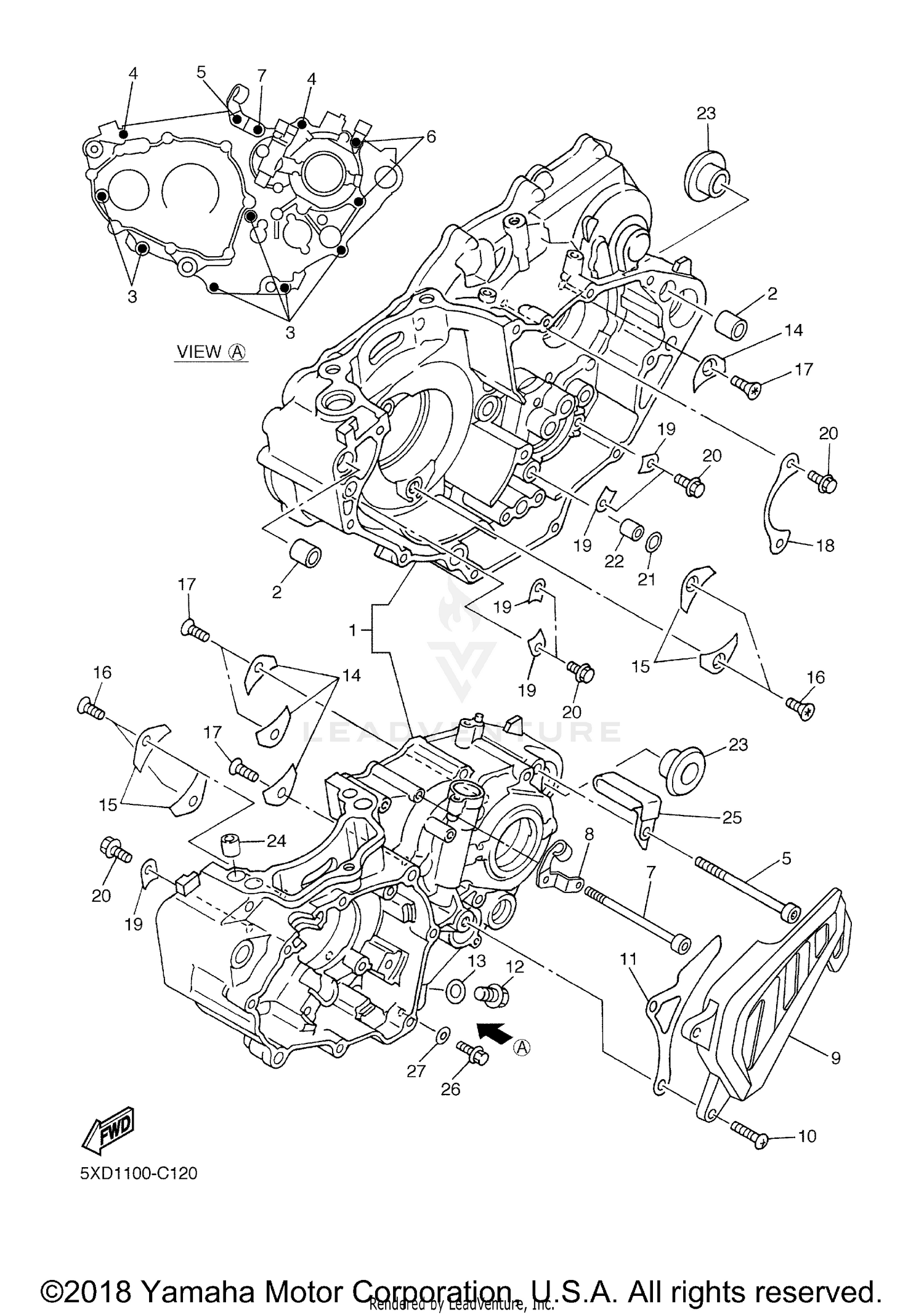

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5TA-15150-11-00
Superseded by 5TA-15100-11-YX
|
$710.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL A
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91317-06060-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91314-06065-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
91317-06075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91314-06080-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, CLUTCH CABLE
5XD-15441-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#9
COVER, CRANKCASE 2
5TA-15421-00-00
Superseded by 5TA-15421-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, CHAIN
5TA-17466-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-10188-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, BEARING COVER
4JT-15381-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, BEARING COVER
5BE-15383-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06126-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90149-06326-00
Superseded by 90151-06052-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, COVER
4L0-17471-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, STOPPER 2
5DH-18562-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-06553-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-10197-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-18007-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL
99530-10116-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90461-10136-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
