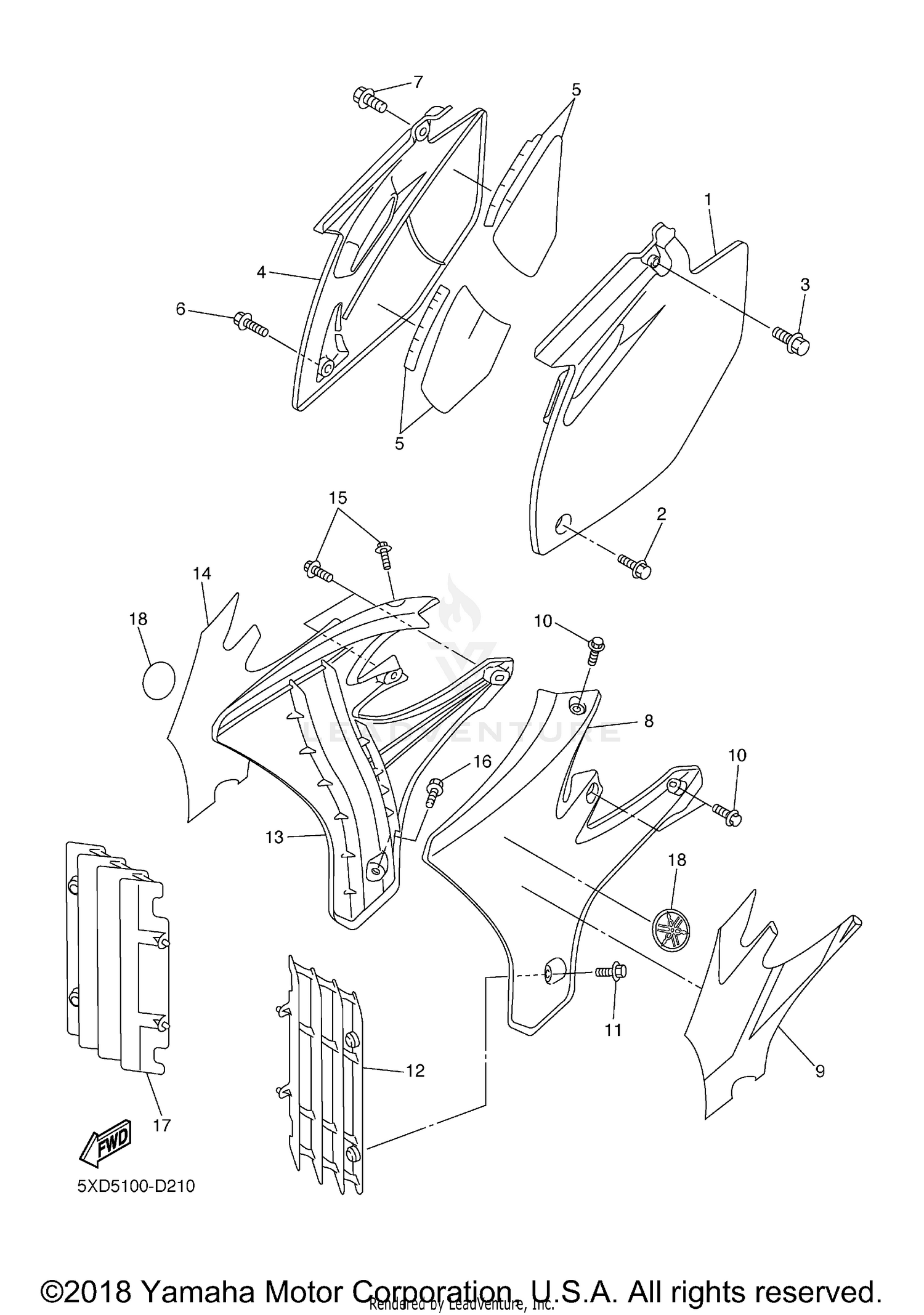

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5TA-21711-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-08238-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SIDE 2
5TA-21721-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, SIDE COVER
5TA-2174A-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#7
BOLT, WITH WASHER
90119-08238-00
|
$4.05 | ||
|
Unavailable |
|||
|
#8
SIDE COVER ASSY 3
5TA-21730-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRAPHIC 1
5XD-2173E-10-00
|
$78.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-06055-00
Superseded by 90105-06064-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, WITH WASHER
90159-06078-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PANEL 1
5TA-2172A-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SIDE COVER ASSY 4
5TA-21740-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GRAPHIC 2
5XD-2173F-10-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-06055-00
Superseded by 90105-06064-00
|
$3.60 | ||
|
Unavailable |
|||
|
#16
SCREW, WITH WASHER
90159-06078-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
PANEL 1
5TA-2172A-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#18
TUNING FORK MARK
5MV-2175C-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
