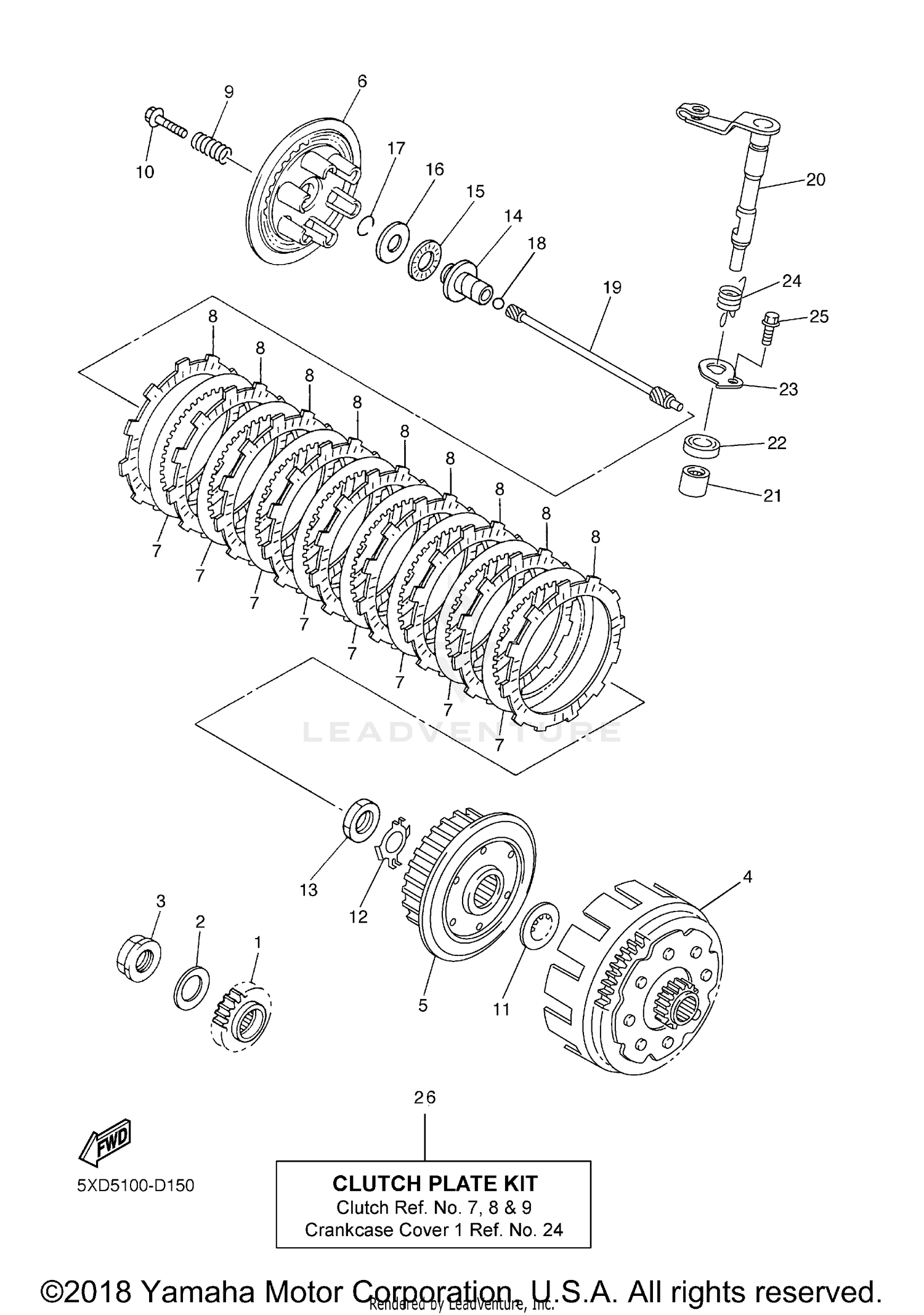

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
5XD-16111-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, CONICAL SPRING
90208-25045-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-20009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEAR COMP.
5XD-16150-50-00
Superseded by 5XD-16150-60-00
|
$566.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOSS, CLUTCH
5TA-16371-10-00
Superseded by 5TA-16371-20-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, PRESSURE 1
5JG-16351-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
5JG-16325-00-00
Superseded by 5JG-16325-10-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
PLATE, FRICTION
5TA-16321-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-231E9-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-06092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, THRUST 1
5XD-16154-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOCK
90215-20005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-20327-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, PUSH 1
5JG-16356-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93340-21505-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-125L6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93440-10085-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 2
5TA-16357-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PUSH LEVER COMP.
5XD-16381-00-00
|
$63.88 | ||
|
Unavailable |
|||
|
#21
BEARING
93317-11287-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, SEAT
5TA-16384-01-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-12007-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH PLATE KIT
2S2-W001G-00-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
