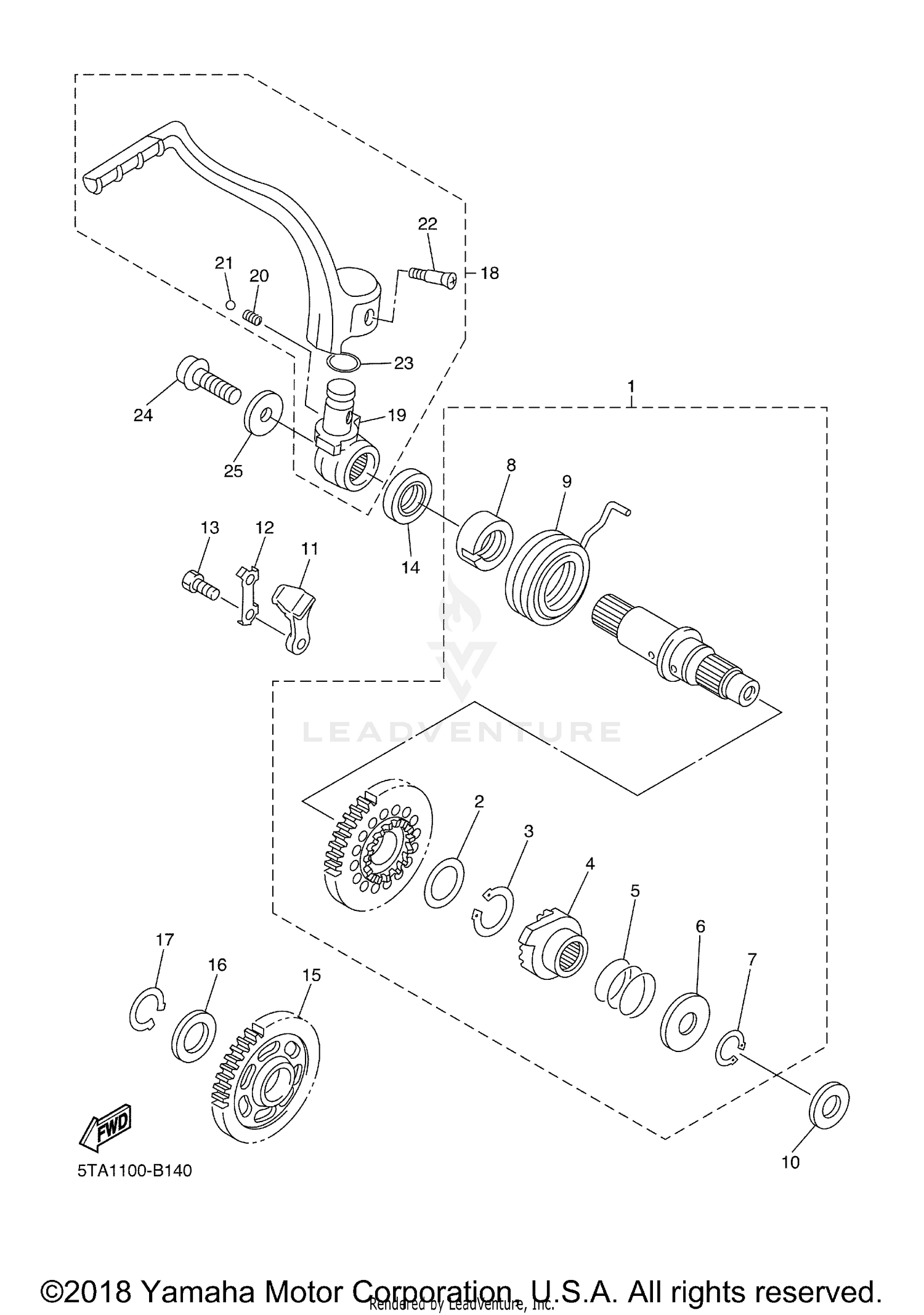

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK SHAFT ASSY
5XD-15601-00-00
Superseded by 5XD-15601-10-00
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE (T=0.5)
90201-20685-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP, S-TYPE
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
WHEEL, RATCHET
4GY-15671-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-16016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-167P7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-16400-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, SPRING
5GR-15664-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TORSION
90508-305B0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-162H4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER
5SG-15668-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOCK
214-15686-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-06001-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-20108-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, KICK IDLE
5TA-15651-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE (T=1.0)
90201-20276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
KICK CRANK ASSY
5XD-15620-00-00
|
$256.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOSS, KICK CRANK
5XD-15621-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-147A5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93507-32009-00
Superseded by 93507-32031-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, COUNTERSUNK
90152-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-17570-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90110-08035-00
Superseded by 90109-085E3-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-087A9-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
