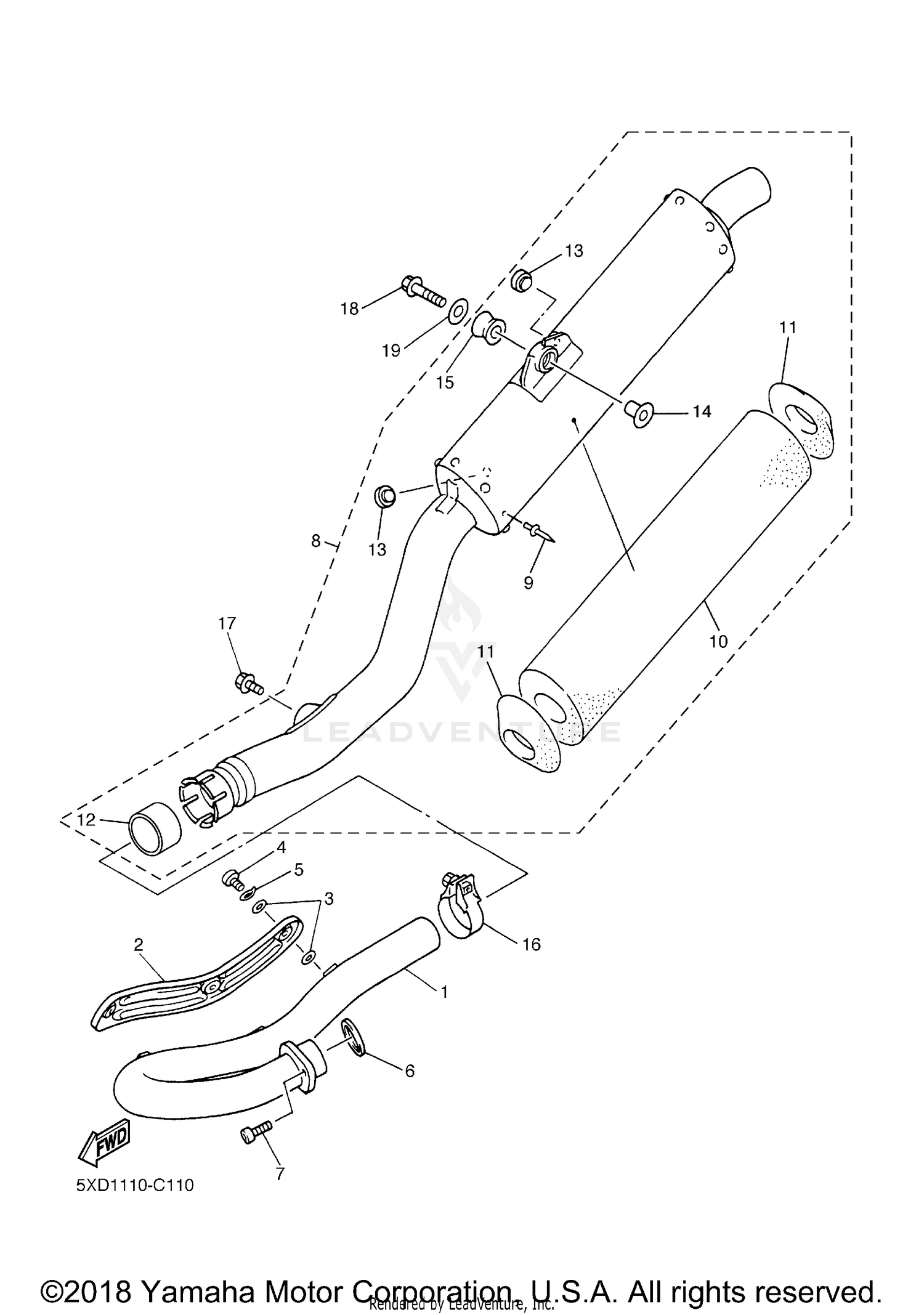

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5TA-14611-00-00
|
$352.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5TA-14628-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
3VD-14613-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET HEAD
91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SILENCER ASSY
5XD-Y1475-00-00
|
$861.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET, BLIND
90267-48084-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
FIBER
5TA-1469A-00-00
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FIBER
5TA-1469E-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
5XD-14714-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-0814J-00
Superseded by 90387-08081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, MUFFLER
5BE-14747-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, SILENCER
5BE-14788-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08057-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-08659-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
