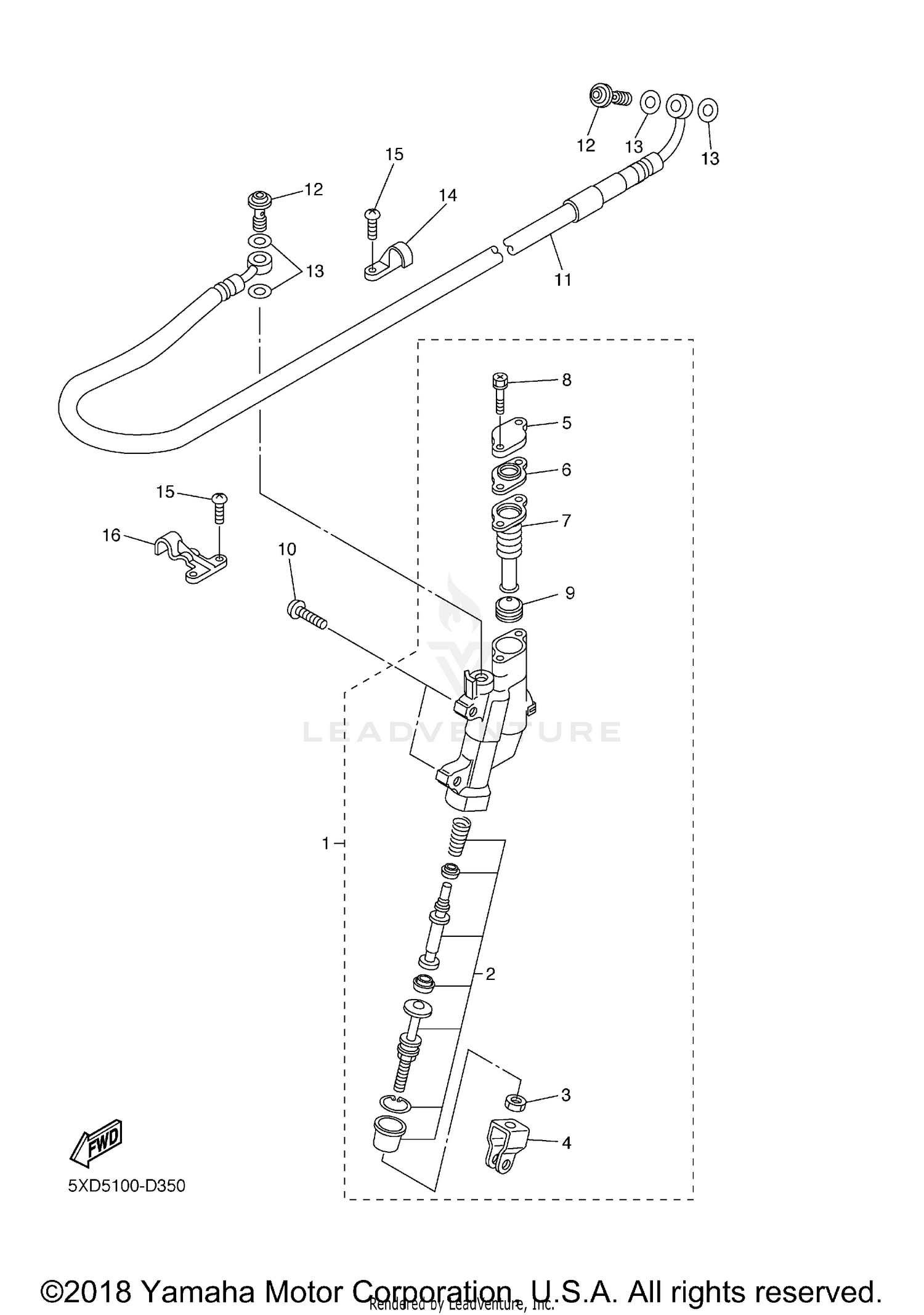

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR. MASTER CYLINDER ASSY.
5UN-2583V-00-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5UN-W0042-50-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
5UN-27218-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
5UN-27222-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, RESERVOIR
5UN-25852-50-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DIAPHRAGM
5UN-2585B-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM, RESERVOIR
5UN-25854-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
5UN-27217-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEPARATOR ASSY
5CG-25715-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-06029-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, BRAKE 2
5UN-25873-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, BRAKE HOSE 2
2VM-25876-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, BRAKE HOSE 2
1C3-25876-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
