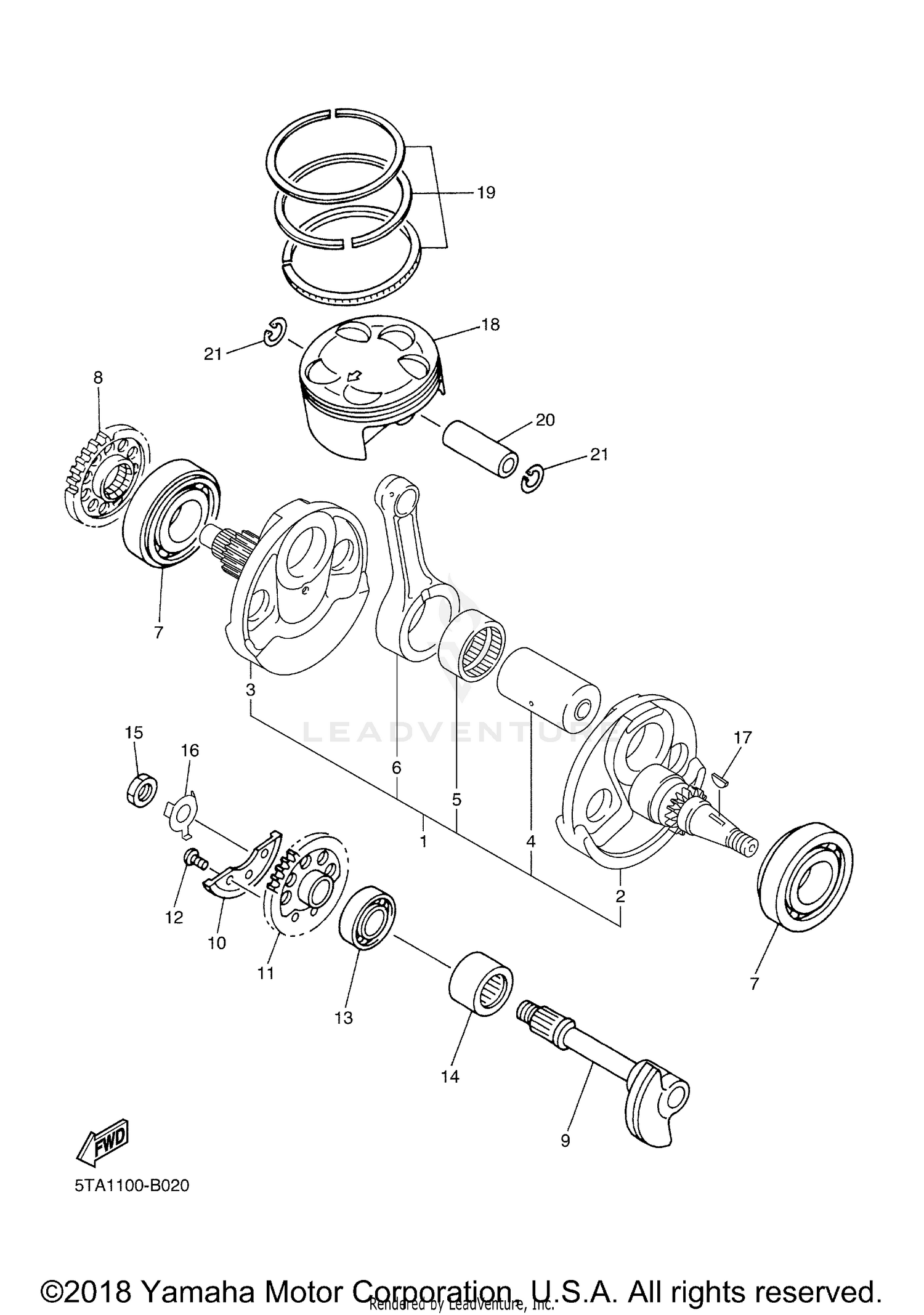

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
5XD-11400-00-00
Superseded by 5XD-11400-01-00
|
$575.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
5TA-11412-00-00
|
$389.04 | ||
|
Unavailable |
|||
|
#3
CRANK 2
5TA-11422-00-00
|
$300.89 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK 1
5TA-11681-00-00
Superseded by 5TG-11681-01-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-63417-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
5XD-11651-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30633-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE
5TA-11536-00-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT 1
5TA-11455-11-00
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT 1
5BE-11454-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, BALANCE WEIGHT
5TA-11531-01-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
90149-06250-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20335-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93311-62574-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK
90215-14287-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY, WOODRUFF
90280-03001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON (STD)
5TJ-11631-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PISTON RING SET (STD)
5JG-11603-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, PISTON
5TA-11633-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
93420-18082-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
