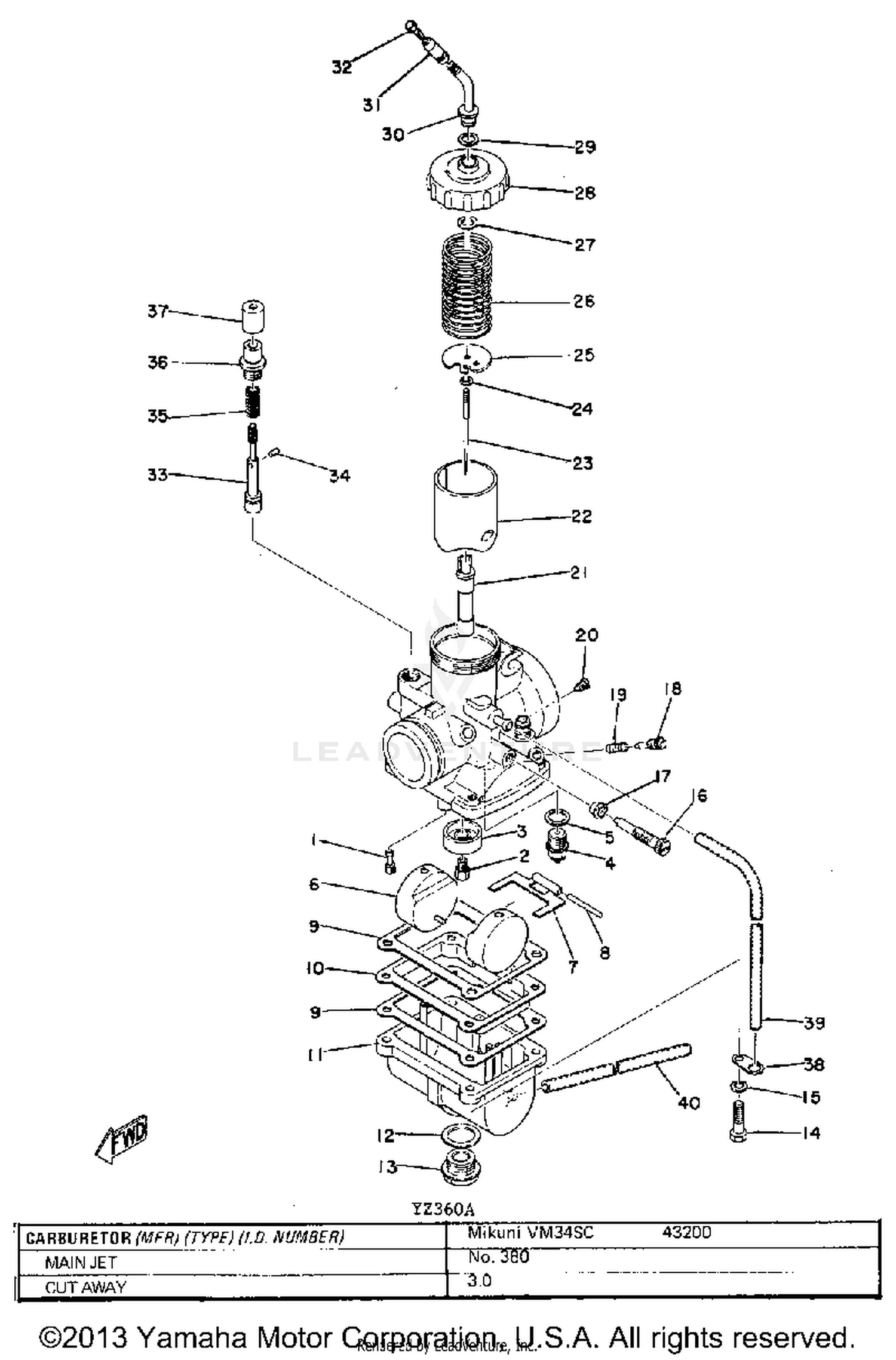

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JET, PILOT (#60)
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#
JET, PILOT ( 70)
193-14142-70-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
431-14101-03-00
|
$163.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
432-14101-02-00
|
$119.99 | ||
|
Unavailable |
|||
|
#2
JET, MAIN (350)
137-14143-70-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (380)
137-14143-76-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING
310-14194-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#4
NEEDLE VALVE SET (#3.3)
24X-14107-33-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, NEEDLE VALVE
239-14195-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
310-14185-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#7
ARM, FLOAT
310-14187-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, FLOAT CHMBR
310-14184-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#10
PLATE
310-14146-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#11
BODY, FLOAT CHMBR 1
310-14181-00-33
|
$17.80 | ||
|
Unavailable |
|||
|
#12
WASHER, PLUG SCREW
239-14117-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#13
PLUG, SCREW
239-14115-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
THROTTLE SCREW SET
23X-14103-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CABLE ADJUSTING
310-14161-00-00
|
$2.40 | ||
|
Unavailable |
|||
|
#18
AIR SCREW SET
23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PILOT JET, AIR (2.0)
239-14172-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NOZZLE, MAIN P-8
239-14141-48-00
|
$16.49 | ||
|
Unavailable |
|||
|
#22
VALVE, THROTTLE 1
275-14112-20-00
|
$15.48 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
275-14112-30-00
|
$27.76 | ||
|
Unavailable |
|||
|
#23
NEEDLE
239-14116-05-00
|
$13.99 | ||
|
Unavailable |
|||
|
#24
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT, SPRING
239-14136-00-00
|
$7.78 | ||
|
Unavailable |
|||
|
#26
SPRING, THRTL VALVE
275-14131-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#27
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
TOP, MIXING CHAMBER
364-14158-00-33
|
$8.88 | ||
|
Unavailable |
|||
|
#29
GASKET
363-14198-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GUIDE, CABLE
363-14155-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE ADJUST SCREW SET
17L-14106-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUNGER, STARTER
432-14171-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#34
CLIP, PLUNGER
432-14138-01-00
|
$8.99 | ||
|
Unavailable |
|||
|
#35
COIL, SPRING
127-14135-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAP, PLUNGER
432-14174-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#37
COVER, PLUNGER CAP
432-14173-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#38
PLATE
313-14146-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#39
PIPE (43214-19700-00)
510-14197-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#40
PIPE, OVERFLOW
310-14196-00-00
|
$17.49 | ||
|
Unavailable |
|||
