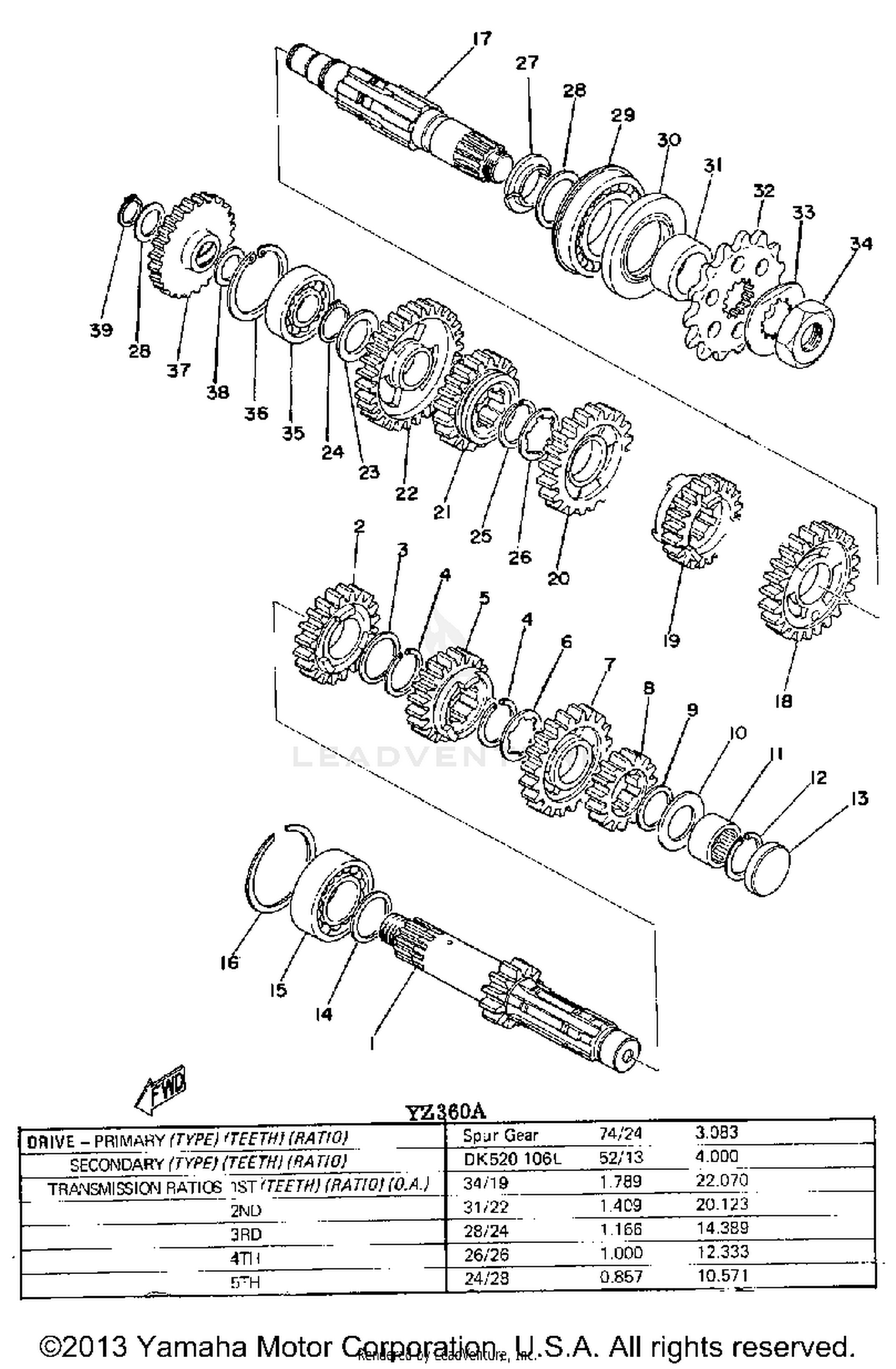

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
431-17411-00-00
|
$94.60 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
431-17141-00-00
|
$57.16 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-25490-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
431-17131-00-00
|
$44.88 | ||
|
Unavailable |
|||
|
#6
WASHER, SPEC''L SHAP
90209-21080-00
|
$2.10 | ||
|
Unavailable |
|||
|
#7
GEAR, 5TH PINION
431-17151-01-00
|
$51.99 | ||
|
Unavailable |
|||
|
#8
GEAR, 5TH PINION
431-17151-01-00
|
$51.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM 1
137-17427-00-09
|
$3.95 | ||
|
Unavailable |
|||
|
#11
BEARING
93315-22004-00
|
$46.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP, R-TYPE (R-26)
93420-26024-00
|
$3.16 | ||
|
Unavailable |
|||
|
#13
PLUG, SPEC''L SHAPE
90338-32031-00
|
$2.10 | ||
|
Unavailable |
|||
|
#14
SHIM 1
156-17417-00-01
|
$6.49 | ||
|
Unavailable |
|||
|
#
SHIM 1 (25.1-31-0.2)
156-17417-00-02
|
$6.49 | ||
|
Unavailable |
|||
|
#
SHIM 1
156-17417-00-03
|
$6.49 | ||
|
Unavailable |
|||
|
#15
BEARING (B6205Z SPECIAL)
93306-20503-00
|
$46.99 | ||
|
Unavailable |
|||
|
#16
CIRCLIP, INNER
93450-52014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#17
AXLE, DRIVE
291-17421-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#18
GEAR, 2ND WHEEL
431-17221-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#19
GEAR, 5TH WHEEL
431-17251-00-00
|
$53.90 | ||
|
Unavailable |
|||
|
#20
GEAR, 3RD WHEEL
431-17231-01-00
|
$74.99 | ||
|
Unavailable |
|||
|
#21
GEAR, 4TH WHEEL
431-17241-00-00
|
$52.22 | ||
|
Unavailable |
|||
|
#22
GEAR, 1ST WHEEL
431-17211-00-00
|
$46.48 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99009-19400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#26
WASHER, SPEC''L SHAP
90209-21080-00
|
$2.10 | ||
|
Unavailable |
|||
|
#27
SPACER, DRIVE AXLE
156-17429-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#28
SHIM 2 (25-34-0.5)
168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#29
BEARING
93306-30506-00
Superseded by 93306-30504-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (SD-35-62-6 HS)
93102-35109-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-25193-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
SPROCKET, DRIVE (13T)
9383E-13144-00
Superseded by 9383E-13216-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
9383E-15082-00
Superseded by 4DN-17460-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING
93306-20306-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP
99009-42500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GEAR, KICK IDLE (23T)
275-15651-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#38
SHIM 1 (1.0T)
164-17417-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
