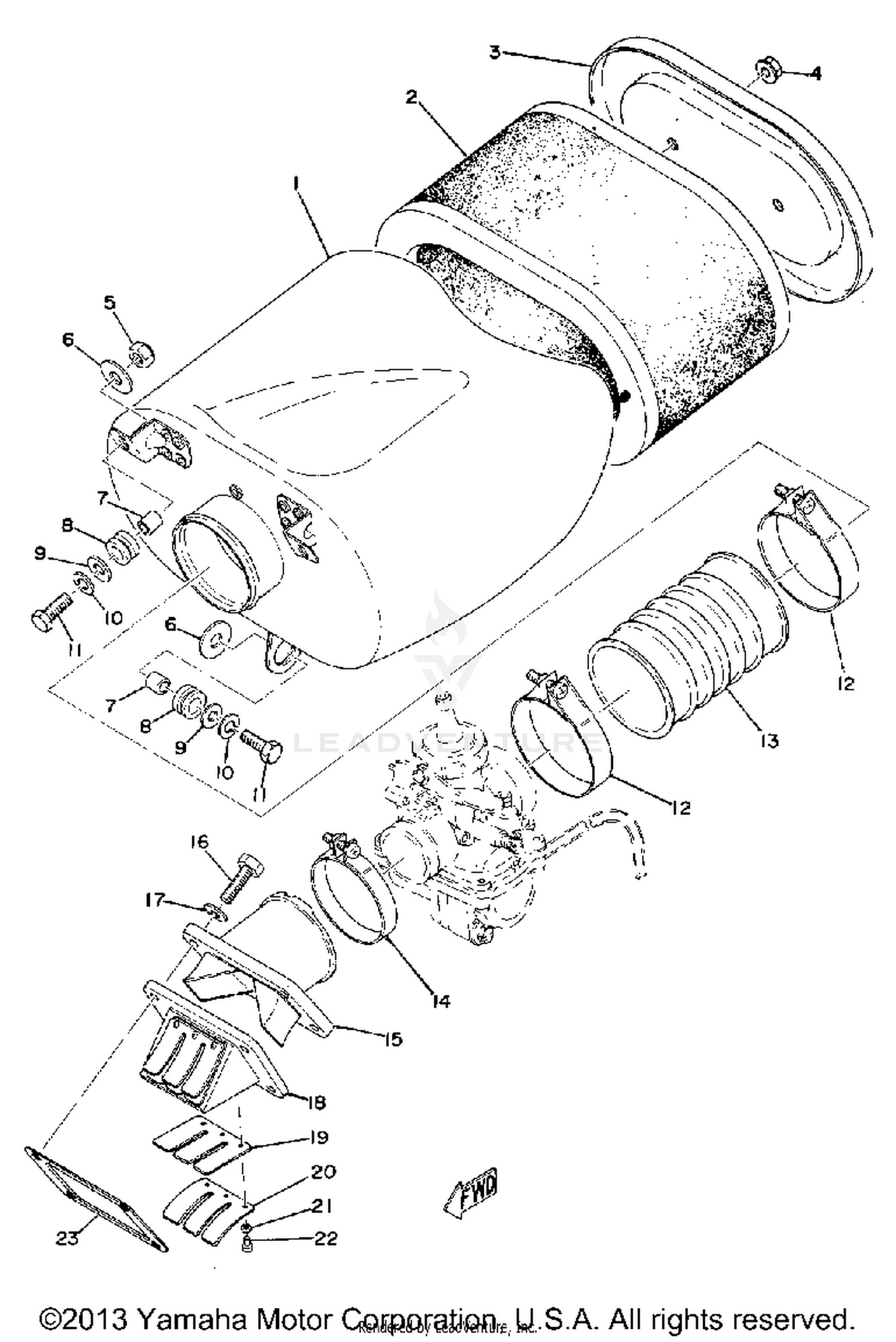

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, AIR CLEANER 1
431-14411-00-00
|
$63.47 | ||
|
Unavailable |
|||
|
#2
ELEMENT, AIR CLNR
431-14451-00-00
|
$17.04 | ||
|
Unavailable |
|||
|
#3
CAP, CLEANER CASE 1
431-14412-00-00
|
$11.66 | ||
|
Unavailable |
|||
|
#4
NUT, NYLON
95701-06300-00
Superseded by 95707-06300-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-06009-00
Superseded by 90179-06403-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06216-00
Superseded by 90387-060A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-14052-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, HOSE
90460-61064-00
|
$3.40 | ||
|
Unavailable |
|||
|
#13
JOINT, AIR CLNR 1
431-14453-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#14
CLAMP, HOSE
90460-49058-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
MANIFOLD, INTAKE
431-13555-01-00
|
$42.99 | ||
|
Unavailable |
|||
|
#16
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
REED VALVE ASSEMBLY
431-13610-01-00
|
$107.99 | ||
|
Unavailable |
|||
|
#19
REED, VALVE
363-13613-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#20
STOPPER, REED VALVE
363-13616-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#21
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, MANIFOLD
8Y7-13556-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
