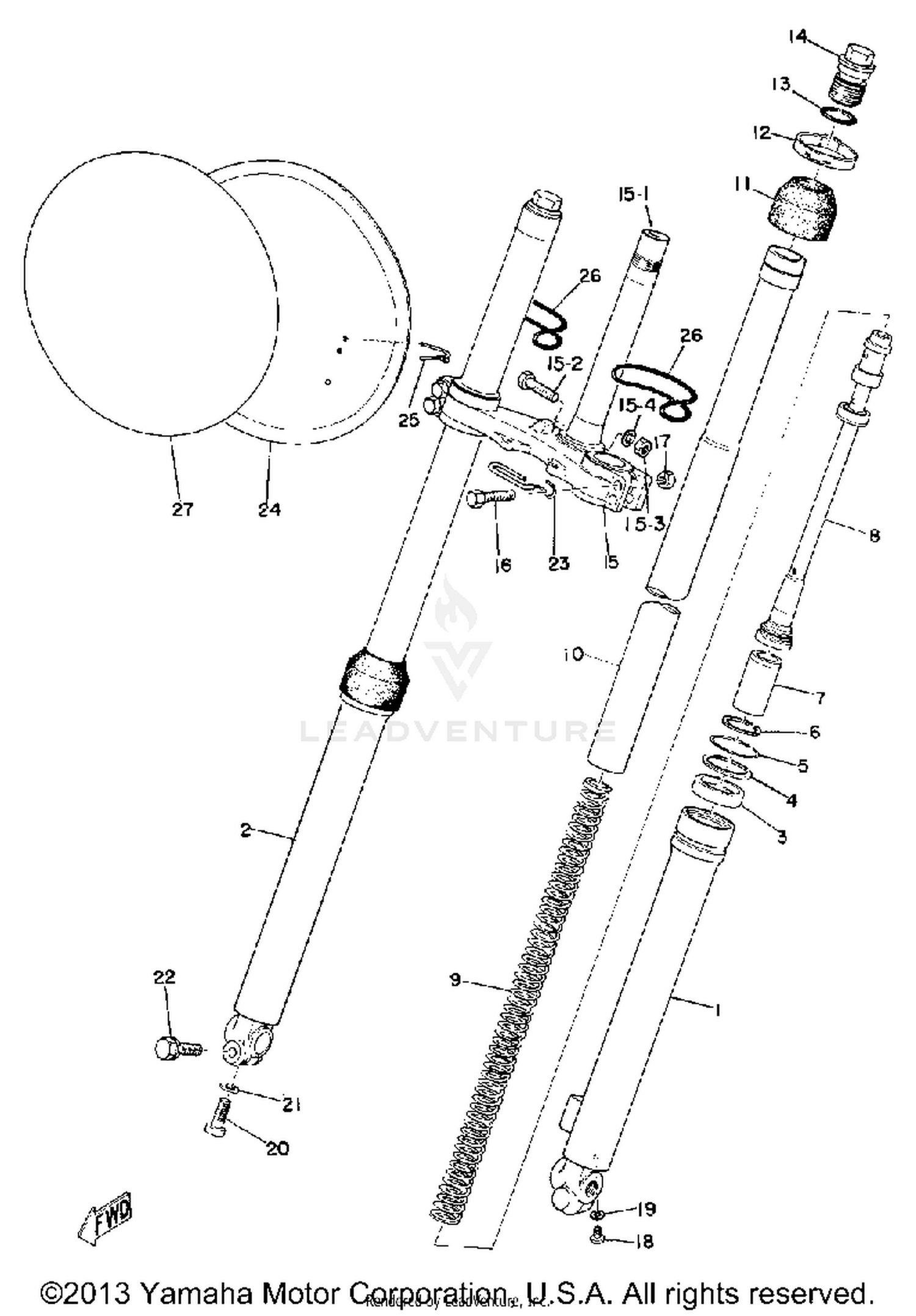

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
431-23101-01-00
|
$370.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
431-23126-00-00
|
$144.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
431-23136-00-00
|
$144.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#6
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PISTON, FRONT FORK
322-23171-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#8
CYLINDER, FRTFRK
363-23170-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#9
SPRING, FRONT FORK
363-23141-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#10
TUBE, INNER 1
431-23124-00-00
|
$61.25 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
292-23144-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#12
CLAMP, HOSE
90460-54061-00
|
$3.00 | ||
|
Unavailable |
|||
|
#13
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#14
BOLT, CAP
291-23111-60-00
|
$43.24 | ||
|
Unavailable |
|||
|
#15
UNDER BRACKET
431-23340-00-33
|
$184.99 | ||
|
Unavailable |
|||
|
#16
BOLT 1
322-23346-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT 1 (90119-08011)
J60-23346-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
PLATE, NUMBER
322-23485-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#23
STAY, PLATE
431-23486-02-00
|
$5.99 | ||
|
Unavailable |
|||
|
#24
O-RING
93210-99103-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
EMBLEM
322-23395-00-00
|
$13.72 | ||
|
Unavailable |
|||
