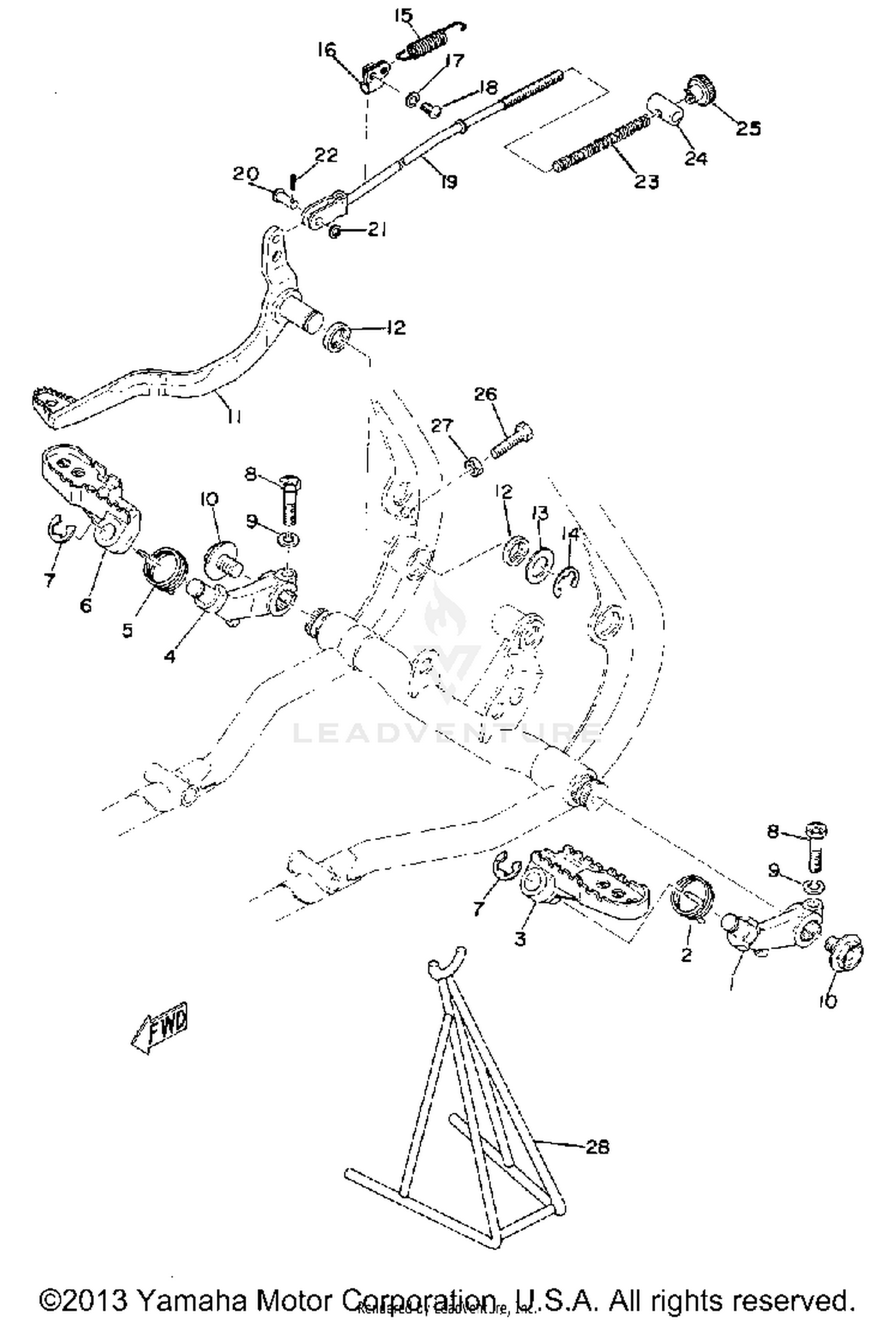

Footrest Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FOOTREST 1
483-27412-02-00
|
$84.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TORSION
90508-26039-00
|
$2.40 | ||
|
Unavailable |
|||
|
#3
FOOTREST 1
431-27411-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, FOOTREST 2
483-27422-02-00
|
$81.99 | ||
|
Unavailable |
|||
|
#5
SPRING, TORSION
90508-26112-00
|
$1.95 | ||
|
Unavailable |
|||
|
#6
FOOTREST 2
431-27421-01-00
|
$70.99 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PEDAL, BRAKE
431-27211-01-33
|
$44.08 | ||
|
Unavailable |
|||
|
#12
OIL SEAL, SO-TYPE
93104-15005-00
|
$4.30 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-15340-00
Superseded by 90201-153A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSION
90506-18068-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
HOOK, SPRING
322-21452-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, BRAKE
431-27231-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#20
PIN, CLEVIS
90240-06027-00
|
$2.39 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPEC''L SHAPE
90179-06006-00
|
$10.09 | ||
|
Unavailable |
|||
|
#26
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAND, SIDE
431-27311-00-00
|
$41.64 | ||
|
Unavailable |
|||
