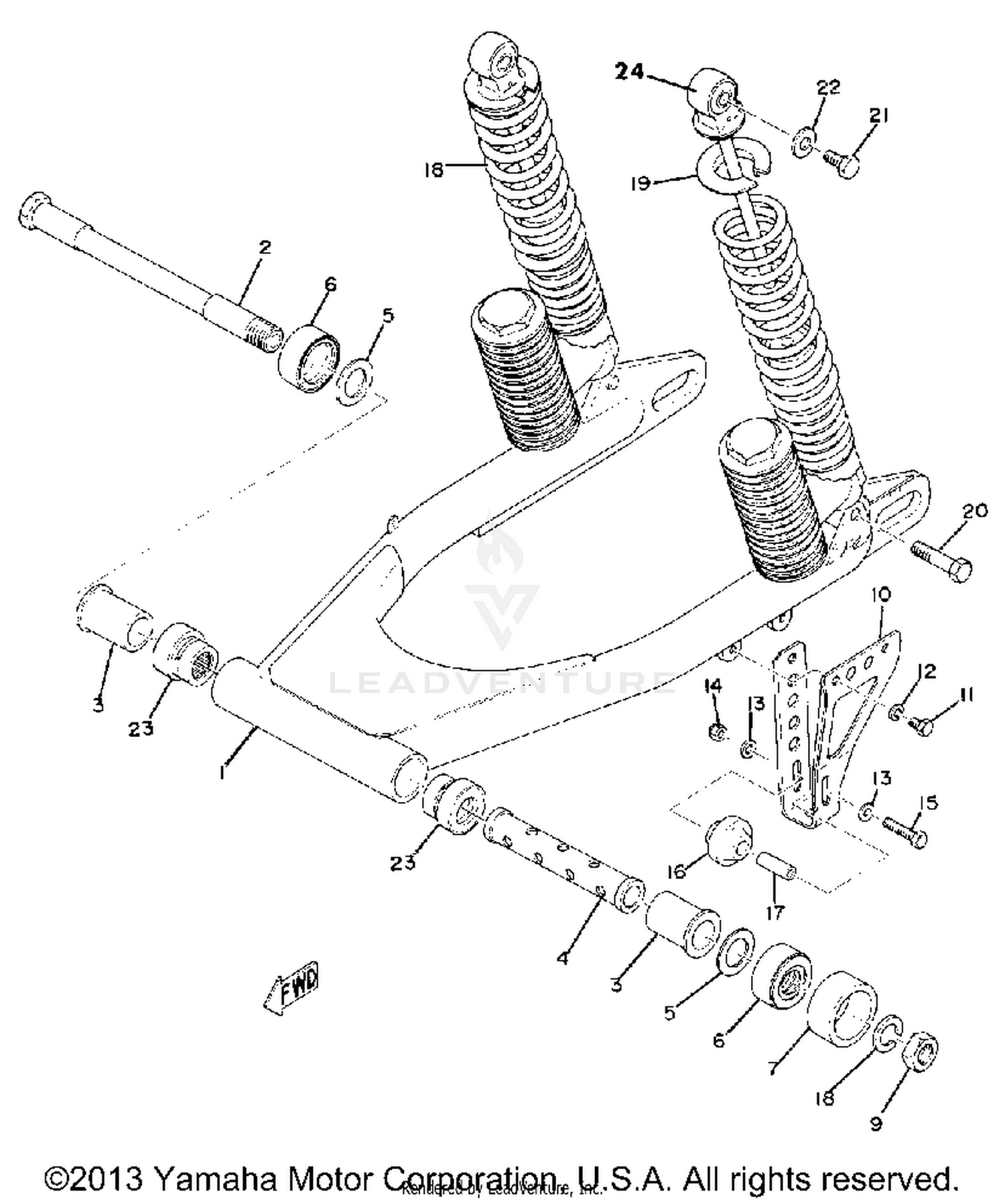

Rear Arm Rear Cushion Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
431-22110-01-33
|
$117.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, PIVOT
1W4-22141-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#3
COLLAR
90387-16449-00
|
$5.99 | ||
|
Unavailable |
|||
|
#4
COLLAR, DISTANCE
431-22126-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#5
SHIM
431-22127-00-04
|
$1.55 | ||
|
Unavailable |
|||
|
#
SHIM
431-22127-00-05
|
$2.05 | ||
|
Unavailable |
|||
|
#6
COVER, THRUST 1
431-22128-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#7
SEAL, GUARD
431-22151-03-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#10
GUARD, CHAIN
322-22153-00-33
|
$79.99 | ||
|
Unavailable |
|||
|
#11
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPEC''L SHAPE (256-27218-0
90179-06034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (682)
97313-06040-00
Superseded by 97095-06040-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
TENSIONER
322-22178-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#17
SPACER (322-22137-00)
90560-06003-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
SHK/ABS ASSEMBLY, REAR
431-22210-04-00
|
$93.99 | ||
|
Unavailable |
|||
|
#19
SEAT, SPRING UPPER
322-22213-20-00
|
$5.44 | ||
|
Unavailable |
|||
|
#20
BOLT
90109-10195-00
|
$6.99 | ||
|
Unavailable |
|||
|
#21
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, CYLINDER.#21
93321-22001-00
|
$84.92 | ||
|
Unavailable |
|||
|
#24
DAMPER UNIT ASSEMBLY
431-22250-09-00
|
$50.46 | ||
|
Unavailable |
|||
