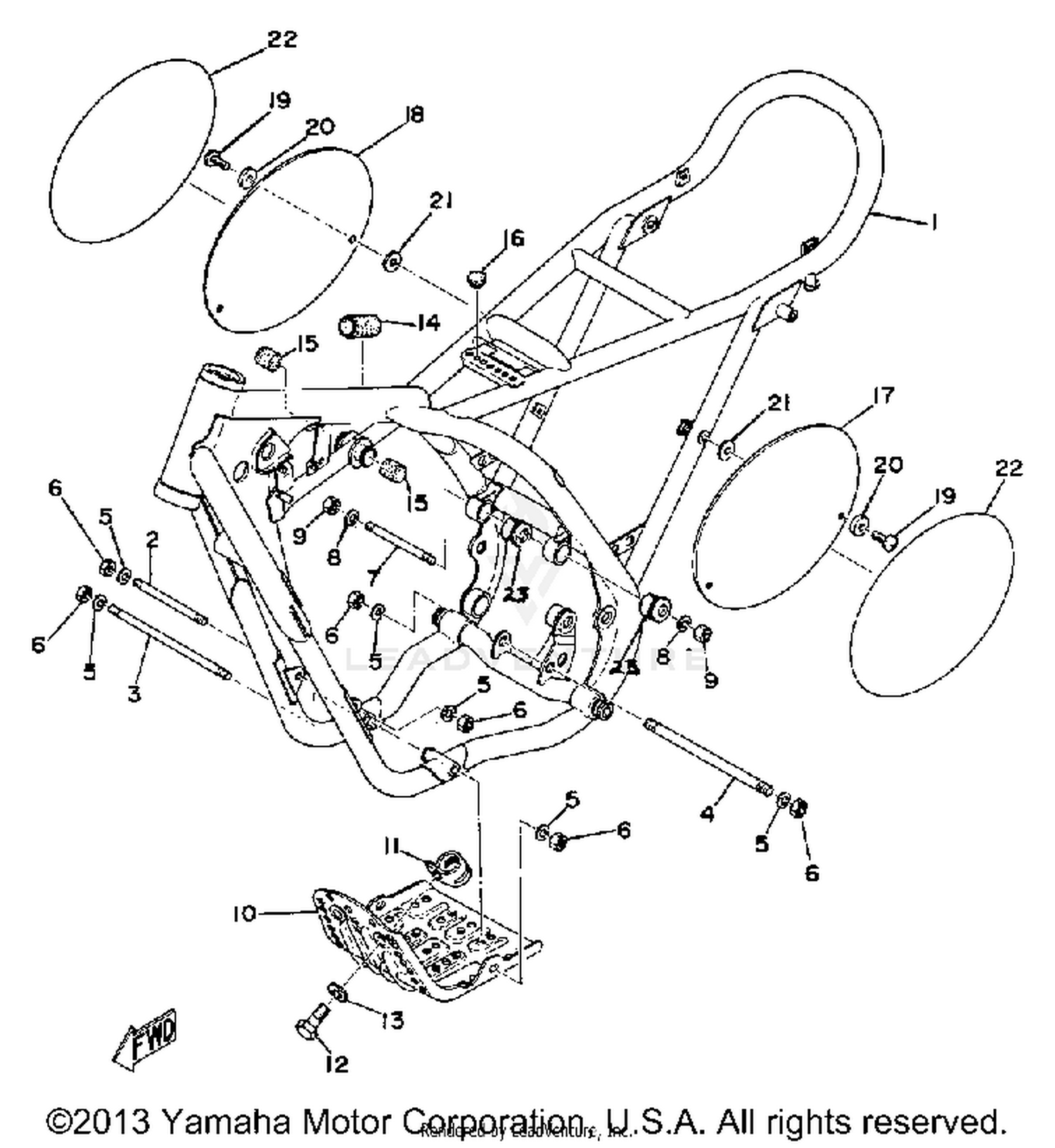

Frame Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
431-21110-00-33
|
$348.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08141-00
|
$2.92 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08144-00
|
$3.36 | ||
|
Unavailable |
|||
|
#4
BOLT, STUD
90116-08142-00
|
$3.27 | ||
|
Unavailable |
|||
|
#5
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-10143-00
|
$2.92 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR, ENGINE
483-21471-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#11
BRACKET, PROTC FRT
214-21433-00-33
|
$5.99 | ||
|
Unavailable |
|||
|
#12
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, SEAT
431-24723-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#15
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, SIDE 1
431-21711-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#18
COVER, SIDE 1
431-21711-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#19
SCREW
98903-06018-00
Superseded by 90149-06306-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90202-07048-00
|
$1.69 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-06066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM 7
401-21787-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#23
Damper
328-15316-00-00
Superseded by 90388-08003-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
