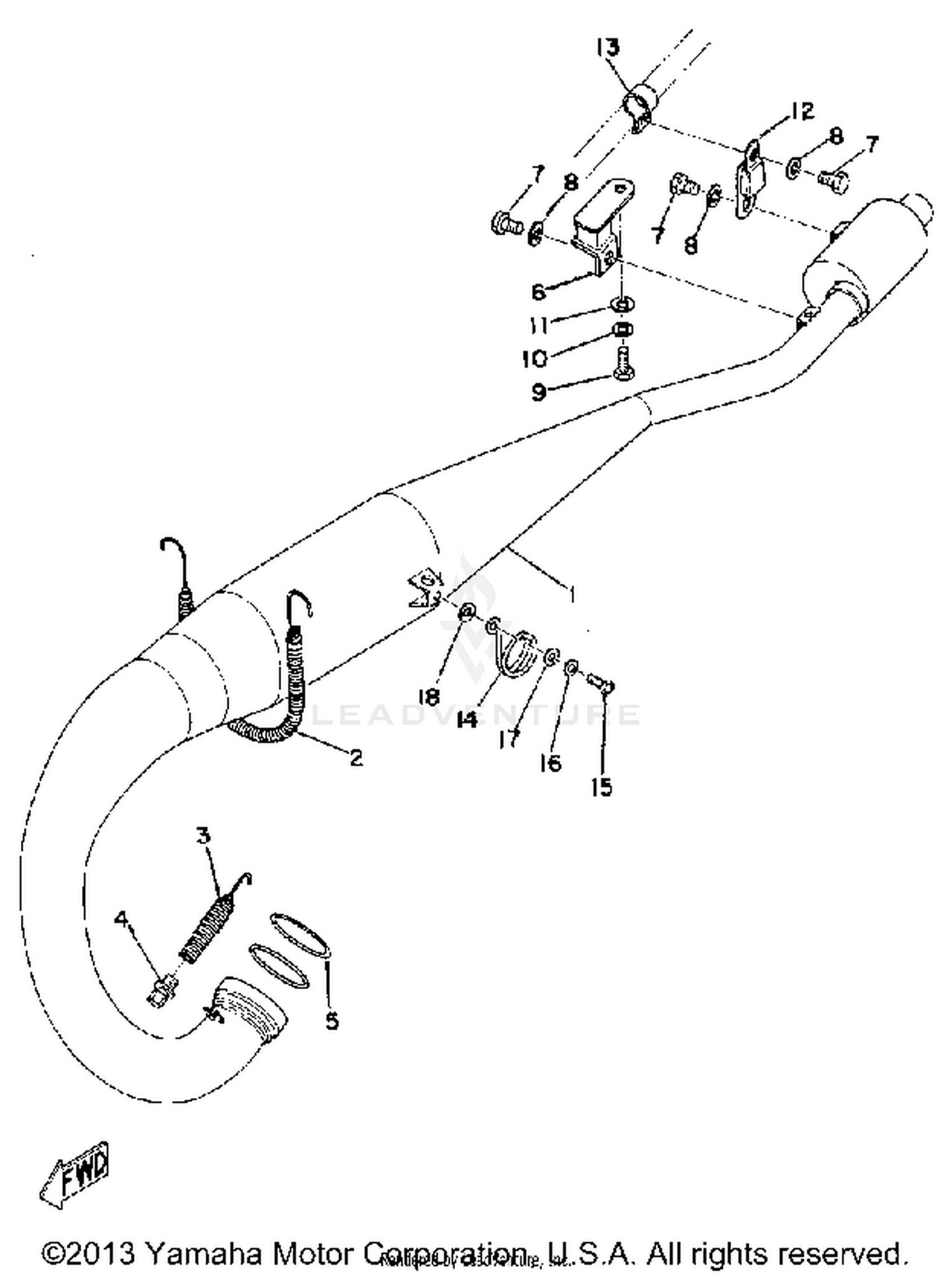

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
431-14610-00-00
|
$187.99 | ||
|
Unavailable |
|||
|
#
EXHAUST PIPE ASSEMBLY L
432-14610-00-00
|
$265.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-16016-00
|
$3.85 | ||
|
Unavailable |
|||
|
#3
SPRING, TENSION (145-14683-00)
90507-20012-00
|
$14.99 | ||
|
Unavailable |
|||
|
#4
BOLT (322-14684-10)
90109-08305-00
|
$4.85 | ||
|
Unavailable |
|||
|
#5
GASKET, EXST PIPE
431-14613-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#6
STAY, MUFFLER
285-14791-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, MUFFLER 1
308-14771-00-00
|
$15.26 | ||
|
Unavailable |
|||
|
#13
STAY, MUFFLER
322-14792-10-00
|
$3.57 | ||
|
Unavailable |
|||
|
#14
GUIDE, CABLE
431-26399-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#15
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
