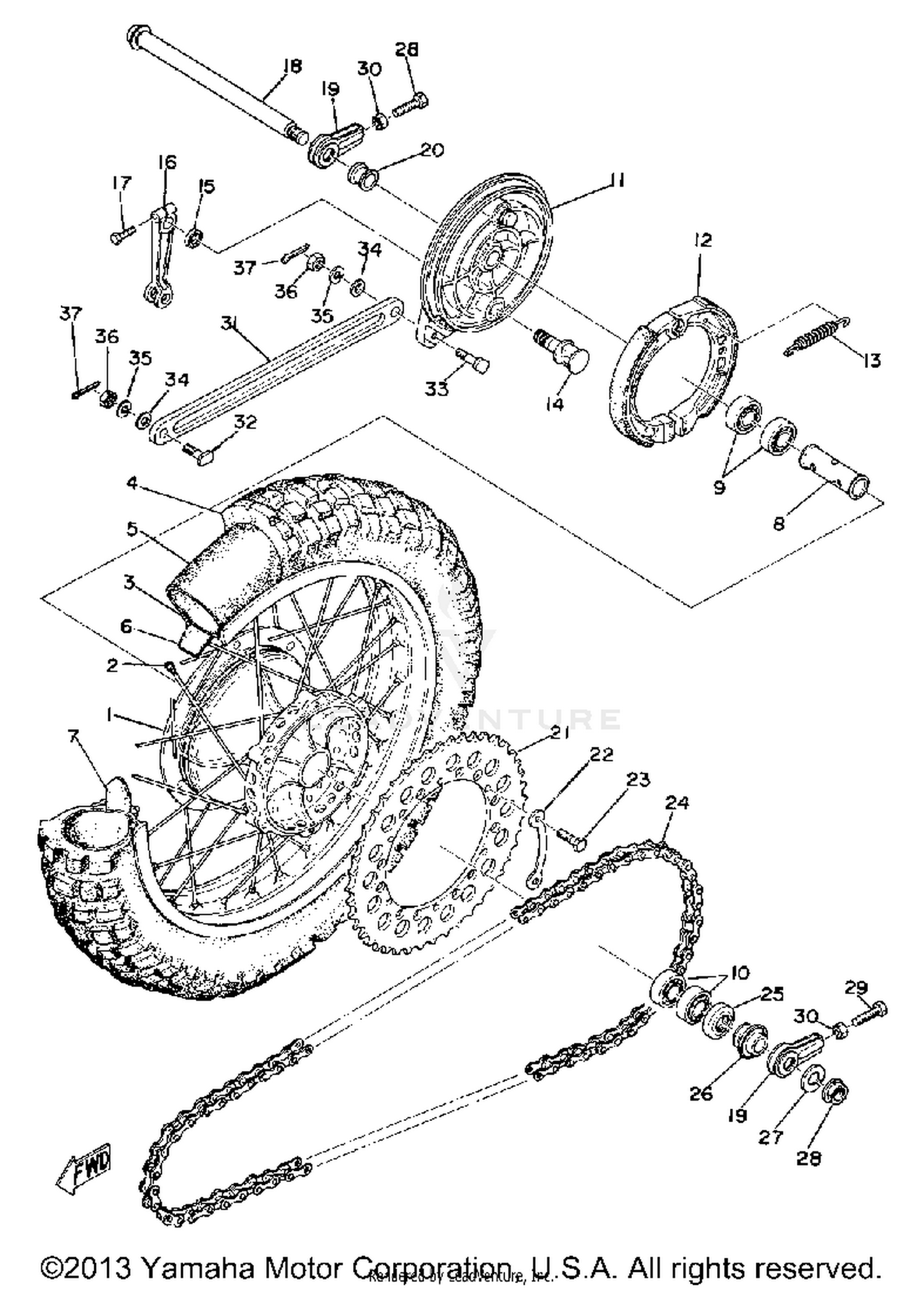

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
483-25311-13-98
|
$179.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR (431-25304-00)
431-25304-01-00
|
$147.99 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
431-25391-90-00
|
$4.50 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 2
431-25396-90-00
|
$4.50 | ||
|
Unavailable |
|||
|
#
SPOKE SET, OUTER 1
431-25392-90-00
|
$4.05 | ||
|
Unavailable |
|||
|
#3
RIM 2.15X18 (94421-18151) (2.15
94421-18238-00
|
$307.99 | ||
|
Unavailable |
|||
|
#4
400X18 YOKO Y612
94140-18070-00
|
$46.36 | ||
|
Unavailable |
|||
|
#
460X18 DUN SR SPRT
94146-18109-00
|
$40.96 | ||
|
Unavailable |
|||
|
#5
TUBE (110-140/80-100-18 M/C)
94240-18098-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#
TUBE
94246-18040-00
|
$11.37 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94340-18022-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEAD
363-25394-00-00
Superseded by 1T1-25394-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#8
SPACER, BEARING
431-25317-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#9
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20333-00
Superseded by 93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#11
PLATE, BRAKE SHOE
431-25321-00-98
|
$73.77 | ||
|
Unavailable |
|||
|
#12
BRAKE SHOE SET-2PCS
431-W2536-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#13
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAMSHAFT
431-25351-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#15
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
AXLE, WHEEL
431-25381-00-00
|
$47.04 | ||
|
Unavailable |
|||
|
#19
PULLER, CHAIN 1
431-25388-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#20
COLLAR
90387-17215-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
SPROCKET, DRIVN 48T
431-25448-04-XX
|
$52.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 50TSPROCKET WHE
431-25450-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 52T
431-25452-04-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 54TSPROCKET WHE
431-25454-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#22
WASHER
431-25412-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#23
BOLT (214-25411-00)
90109-08377-00
|
$3.65 | ||
|
Unavailable |
|||
|
#24
520 DS 110L
94585-20110-00
|
$76.99 | ||
|
Unavailable |
|||
|
#
520 DS 106L
94585-20106-00
|
$47.04 | ||
|
Unavailable |
|||
|
#25
OIL SEAL, SD-TYPE
93102-25061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-17555-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEXAGON
90170-16177-00
|
$9.99 | ||
|
Unavailable |
|||
|
#29
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAR, TENSION
431-25371-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#32
BOLT
90109-08378-00
|
$2.20 | ||
|
Unavailable |
|||
|
#33
BOLT
90109-08176-00
|
$4.54 | ||
|
Unavailable |
|||
|
#34
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92903-08100-00
Superseded by 92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#37
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
