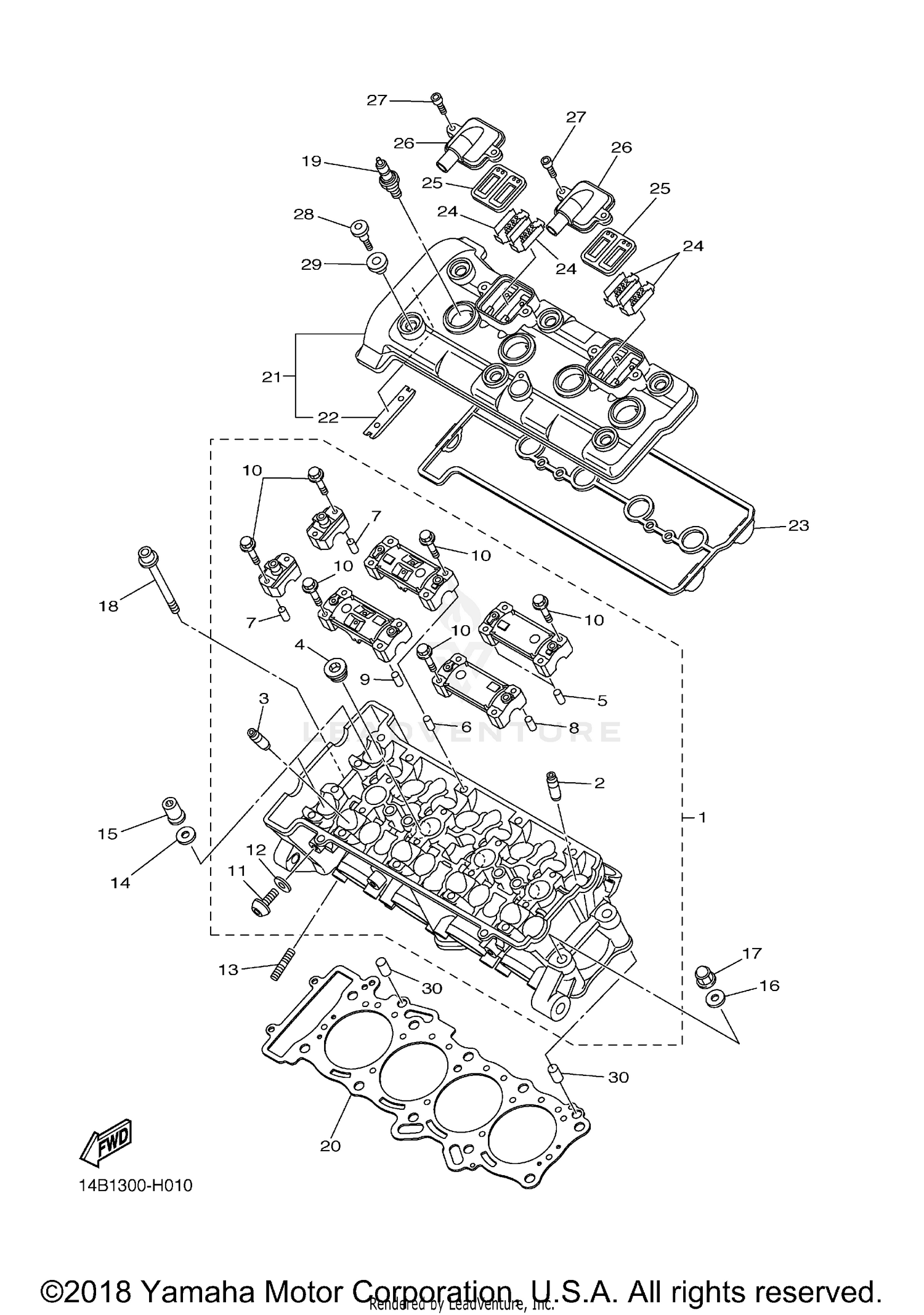

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
14B-11101-00-00
Superseded by 14B-11101-19-00
|
$2,455.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
14B-11133-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
4C8-11134-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-06027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06070-00
Superseded by 90149-06156-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10050-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-10029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10050-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
NUT, CROWN
90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90110-06315-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LMAR9EJ NGK SPLUG
NGK-LMAR9-EJ-00
Superseded by LMA-R9EJ0-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#20
GASKET, CYLINDER HEAD 1
14B-11181-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CYLINDER HEAD 1
14B-11191-00-00
|
$410.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, HEAD COVER 1
14B-11193-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE
5VY-1482K-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
REED VALVE ASSY
5SL-14890-10-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, CASE
14B-14899-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-066F0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
