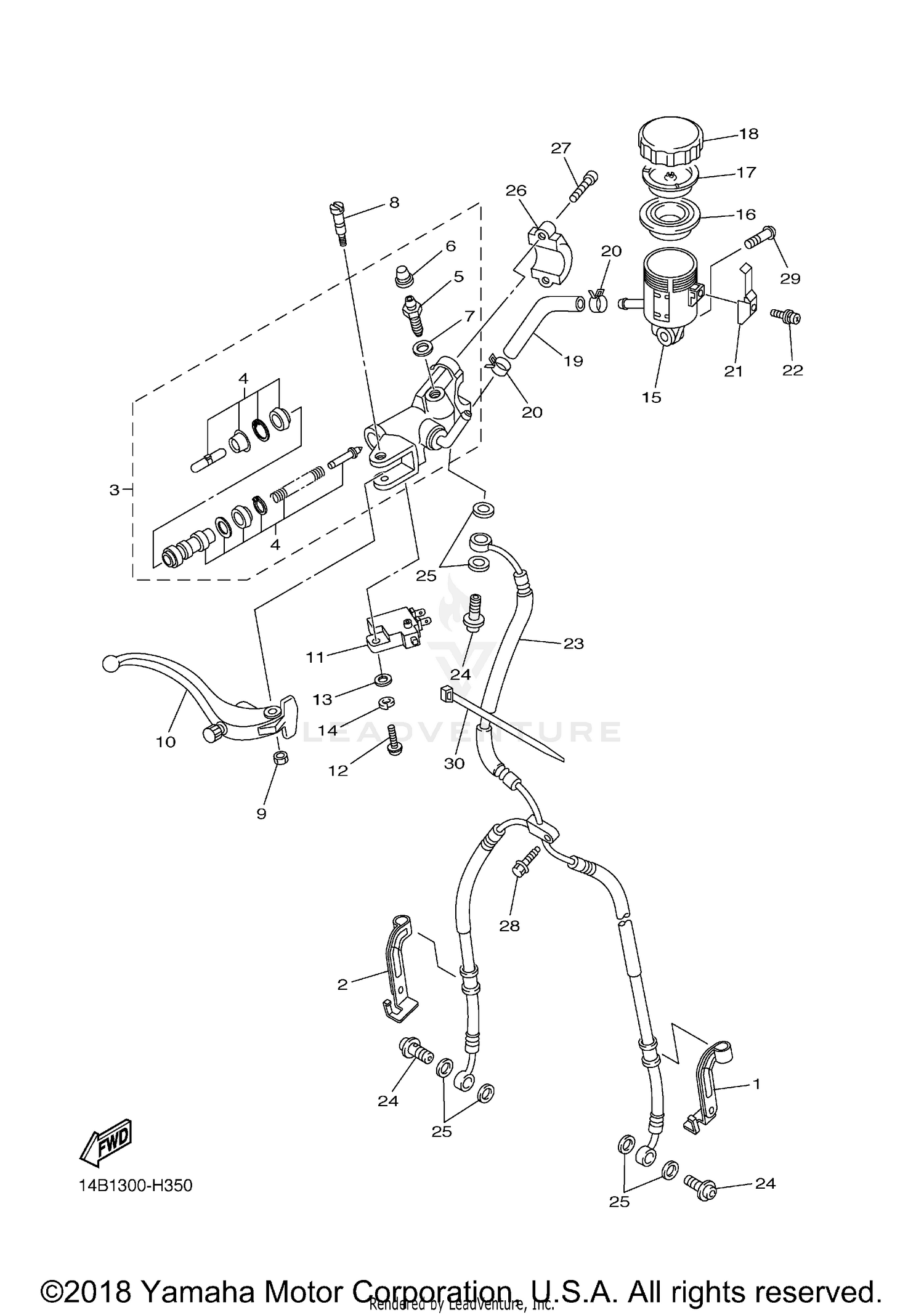

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, BRAKE HOSE 1
14B-25875-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, BRAKE HOSE 2
14B-25876-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER SUB ASSY
14B-W2587-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYLINDER KIT, MASTER
2S3-W0041-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BLEED
3YK-25824-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
3YK-25825-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL 1
5VY-25975-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, LEVER
5VY-2589F-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, S/L
95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER 2
14B-83922-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRONT STOP SWITCH ASSY
4HM-83980-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANK, RESERVOIR
5SL-25894-20-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DIAPHRAGM, RESERVOIR
5VY-25854-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH, DIAPHRAGM
5VY-25855-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, RESERVOIR
5VY-25852-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, RESERVOIR
5VY-25895-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-120A3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER
5VY-2589G-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
5VY-2589H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, BRAKE 1
14B-25872-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, MASTER CYLINDER
5VS-25867-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
5VS-26332-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
90105-06041-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-59001-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
