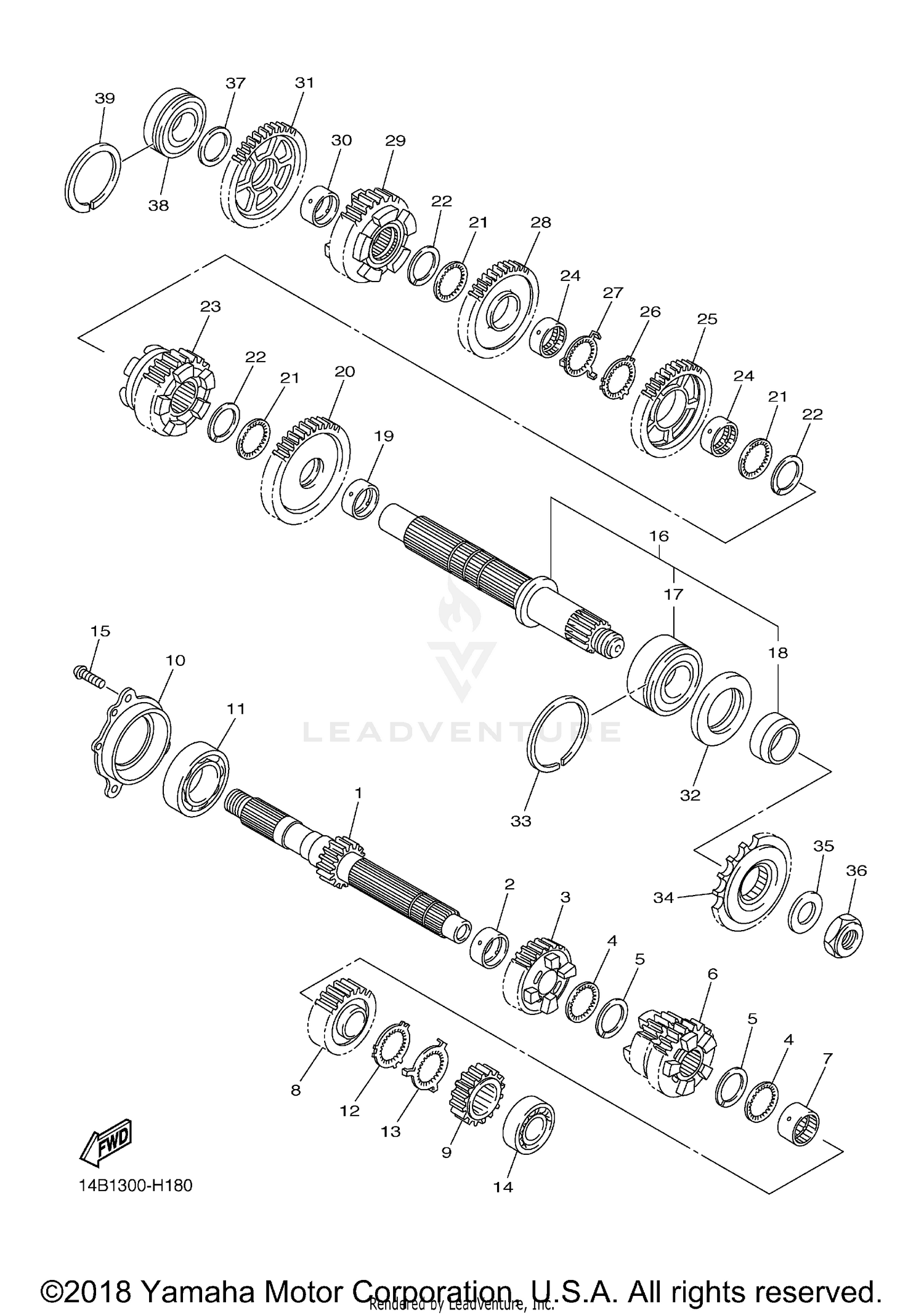

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (15T)
14B-17411-00-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-28003-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (22T)
4C8-17151-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-25011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-28184-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (21/23T)
14B-17131-00-00
Superseded by 1KB-17131-00-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-25023-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 6TH PINION (26T)
14B-17161-00-00
Superseded by 1KB-17161-00-00
|
$232.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND PINION (16T)
2D1-17121-10-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING, BEARING 1
14B-15163-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20652-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, CLAW
90214-25004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CLAW
90214-25003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-27208-00
Superseded by 93306-27209-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06082-00
Superseded by 90149-06081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DRIVE AXLE ASSY
14B-17402-00-00
Superseded by 1KB-17402-00-00
|
$383.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93305-20605-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-30012-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-31003-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 2ND WHEEL (33T)
14B-17221-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
90209-28008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
93440-31187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 6TH WHEEL (33T)
14B-17261-00-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-28004-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 4TH WHEEL (35T)
14B-17241-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, CLAW
90214-29002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, CLAW
90214-28002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 3RD WHEEL (37T)
14B-17231-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 5TH WHEEL (30T)
14B-17251-00-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-25008-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 1ST WHEEL (38T)
5VY-17211-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL
93102-40330-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
93440-62032-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, DRIVE (17T)
4C8-17460-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-22015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90179-22019-00
Superseded by 90179-22018-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-257H0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING
93306-205A2-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
93440-52009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
