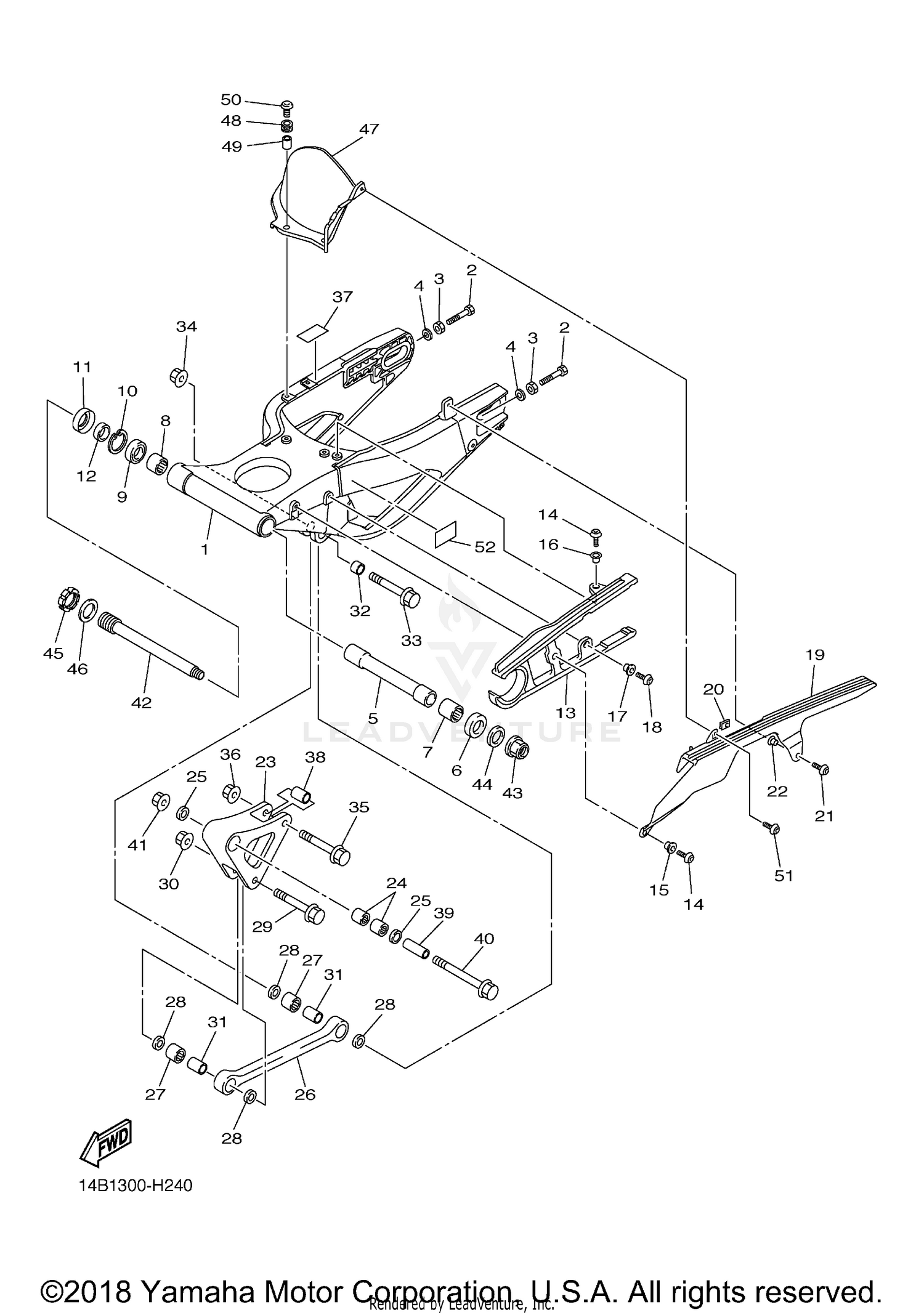

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
14B-22110-00-P0
|
$1,181.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90101-08013-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, HEXAGON
95302-08600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
14B-22184-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
5VY-22128-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93317-52897-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93317-428U8-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-97202-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-42500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93106-28004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-22023-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, GUARD
14B-22151-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92012-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-062X0-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-06066-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06066-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
BOLT, BUTTON HEAD
92012-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
CASE, CHAIN
14B-22311-00-00
Superseded by 14B-22311-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#20
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06298-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-07717-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
ARM, RELAY
14B-2217A-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93315-31758-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
ARM 1
14B-2217M-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93315-31758-00
|
$37.99 | ||
|
Unavailable |
|||
|
#28
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-10017-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-1012A-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-1013U-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
90105-10018-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
90105-10017-00
|
$20.99 | ||
|
Unavailable |
|||
|
#36
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Unavailable |
|||
|
#37
TAPE, 1
2C0-21566-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-1012A-00
|
$19.49 | ||
|
Unavailable |
|||
|
#39
COLLAR
90387-10034-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
90105-10150-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Unavailable |
|||
|
#42
SHAFT, PIVOT
14B-22141-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SELF-LOCKING
90185-20008-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90201-20026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
4C8-22252-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
90201-30016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
REAR FENDER COMP.
14B-21650-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
GROMMET
90480-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
COLLAR
90387-06057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW
90149-06302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
LABEL, TIRE
14B-21668-00-00
Superseded by 14B-21668-01-00
|
$2.25 | ||
|
Unavailable |
|||
