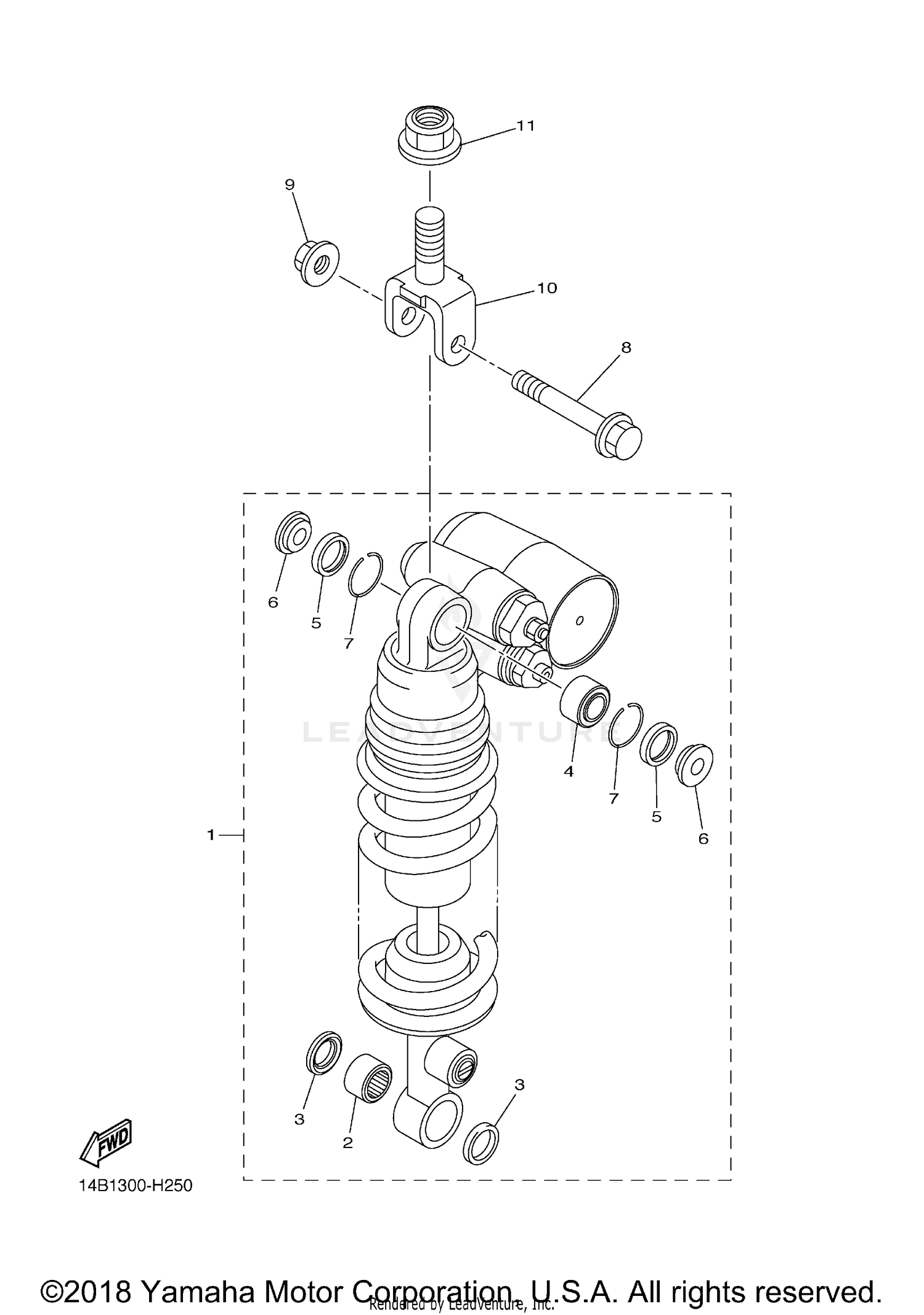

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
14B-22210-10-00
|
$716.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93315-31758-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93399-999T4-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93101-18061-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, DISTANCE
14B-22253-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-10020-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, UPPER
14B-22219-00-00
Superseded by 1KB-22219-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
95602-16200-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
