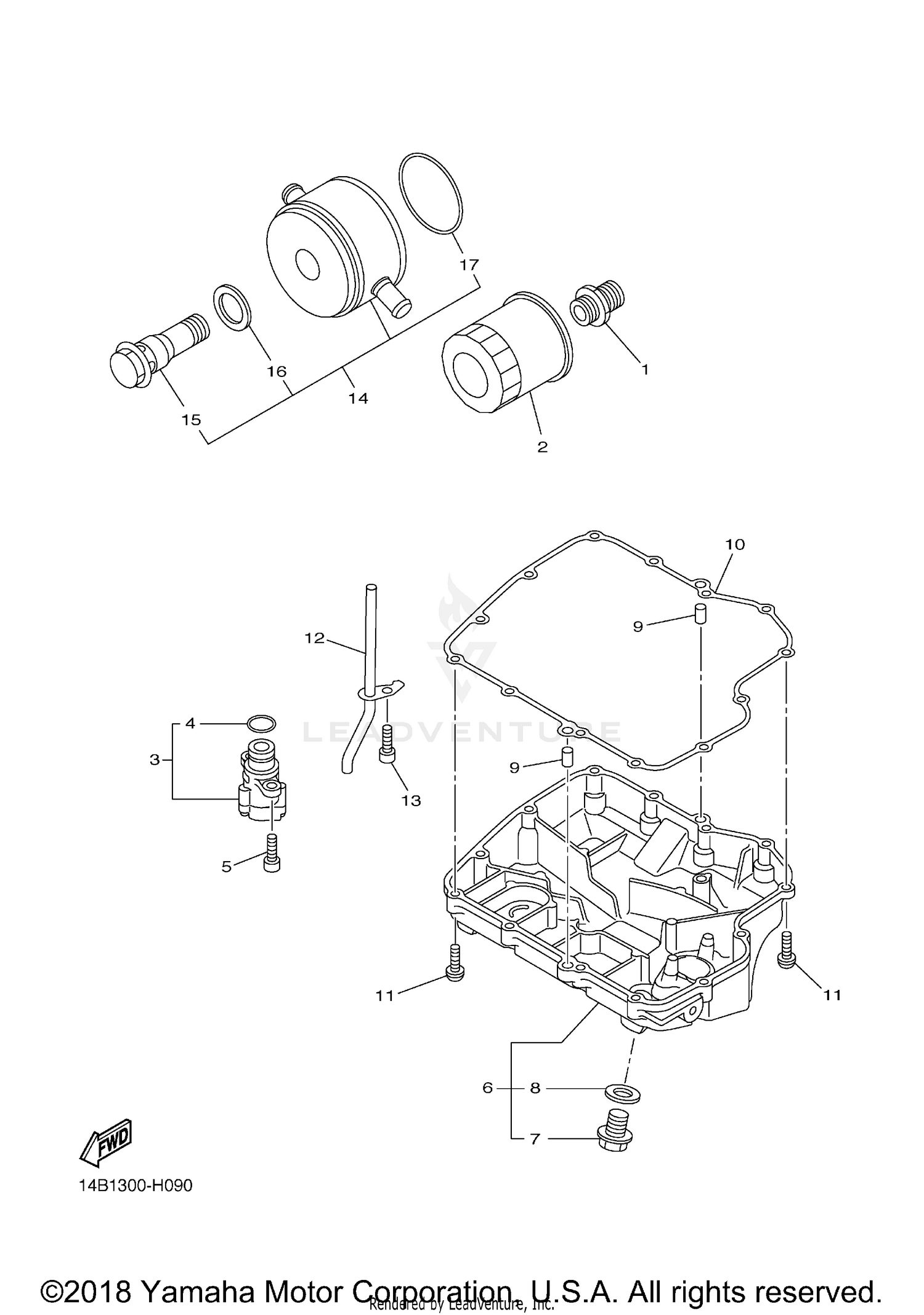

Oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, UNION
90401-20145-00
Superseded by 90401-20007-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ELEMENT ASSY, OIL CLEANER
5GH-13440-20-00
Superseded by 5GH-13440-80-00
|
$14.99 | ||
|
Unavailable |
|||
|
#3
RELIEF VALVE ASSY
14B-13490-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90110-06169-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRAINER COVER ASSY
14B-13400-00-00
Superseded by 1KB-13400-00-00
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, STRAINER COVER
14B-13414-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06079-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, DELIVERY 1
14B-13161-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL COOLER ASSY
14B-13470-00-00
|
$437.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UNION
5FL-12822-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
5EB-13475-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
14B-13473-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
