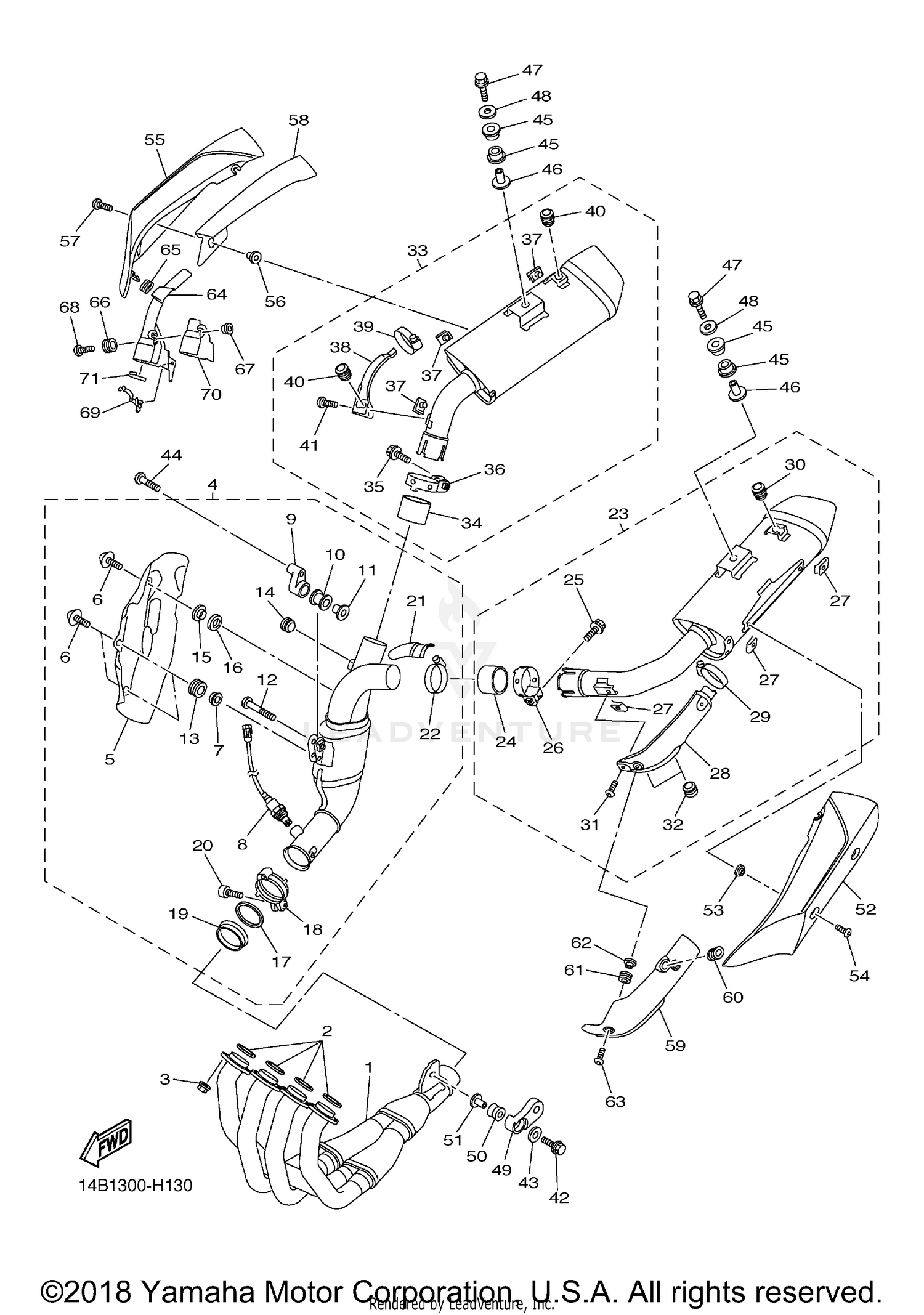

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE COMP.
14B-14602-00-00
|
$1,260.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, EXHAUST PIPE
4FM-14613-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CATALYST ASSY.
14B-14740-00-00
|
$1,120.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, MUFFLER 3
14B-14738-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06112-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR, OXYGEN
14B-8592A-00-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, MUFFLER 1
14B-21445-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, MUFFLER
4XV-27424-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-08005-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92014-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-12579-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, MUFFLER
2D1-14737-00-00
Superseded by 2D1-14737-01-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06217-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08080-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, EXHAUST PIPE
14B-14623-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, MUFFLER
14B-14725-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, STOPPER
14B-14618-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-06343-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, PROTECTOR 3
14B-1465U-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE CLAMP ASSY
90450-45001-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
MUFFLER ASSY 1
14B-14710-10-00
|
$1,314.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, MUFFLER
5VY-14714-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-08063-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, MUFFLER
3D8-14715-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SPRING
90183-060A2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, PROTECTOR 1
14B-1465R-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE CLAMP ASSY
90450-45001-00
|
$19.99 | ||
|
Unavailable |
|||
|
#30
DAMPER, MUFFLER
3D7-14737-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, BUTTON HEAD
92012-06010-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER, LOCATING 1
4FM-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
MUFFLER ASSY 2
14B-14720-10-00
|
$1,292.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, MUFFLER
5VY-14714-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
90105-08063-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
BAND, MUFFLER
3D8-14715-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#37
NUT, SPRING
90183-060A2-00
|
$8.49 | ||
|
Unavailable |
|||
|
#38
PLATE, PROTECTOR 2
14B-1465T-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE CLAMP ASSY
90450-45001-00
|
$19.99 | ||
|
Unavailable |
|||
|
#40
DAMPER, MUFFLER
3D7-14737-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#41
BOLT, BUTTON HEAD
92012-06010-00
|
$4.05 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE
95812-08040-00
Superseded by 95817-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-087G2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEX. SOCKET BUTTON
90111-08071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER, FOOTREST 2
14B-27424-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
COLLAR
90387-08020-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE
95814-08045-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, PLATE
90201-08034-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
STAY, MUFFLER 2
14B-21446-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
DAMPER, MUFFLER
5VY-14747-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
COLLAR
90387-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PROTECTOR, MUFFLER 1
14B-14718-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
COLLAR
90387-06170-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, HEX. SOCKET BUTTON
90111-06127-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
PROTECTOR, MUFFLER 2
14B-14728-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
COLLAR
90387-06170-00
|
$7.49 | ||
|
Unavailable |
|||
|
#57
BOLT, HEX. SOCKET BUTTON
90111-06127-00
|
$7.49 | ||
|
Unavailable |
|||
|
#58
SEAT
14B-1476P-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
COVER, REAR FENDER 2
14B-2163E-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#61
GROMMET
90480-12581-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
COLLAR
90387-087L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT, HEX. SOCKET BUTTON
90111-06095-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
COVER, REAR FENDER 3
14B-2163F-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
GROMMET
90480-01558-00
|
$3.95 | ||
|
Unavailable |
|||
|
#66
GROMMET
90480-12581-00
|
$6.49 | ||
|
Unavailable |
|||
|
#67
COLLAR
90387-087L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#68
BOLT, HEX. SOCKET BUTTON
90111-06095-00
|
$7.49 | ||
|
Unavailable |
|||
|
#69
CLAMP
90464-16006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
SEAT
14B-1478P-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
SEAT 5
14B-1479P-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
