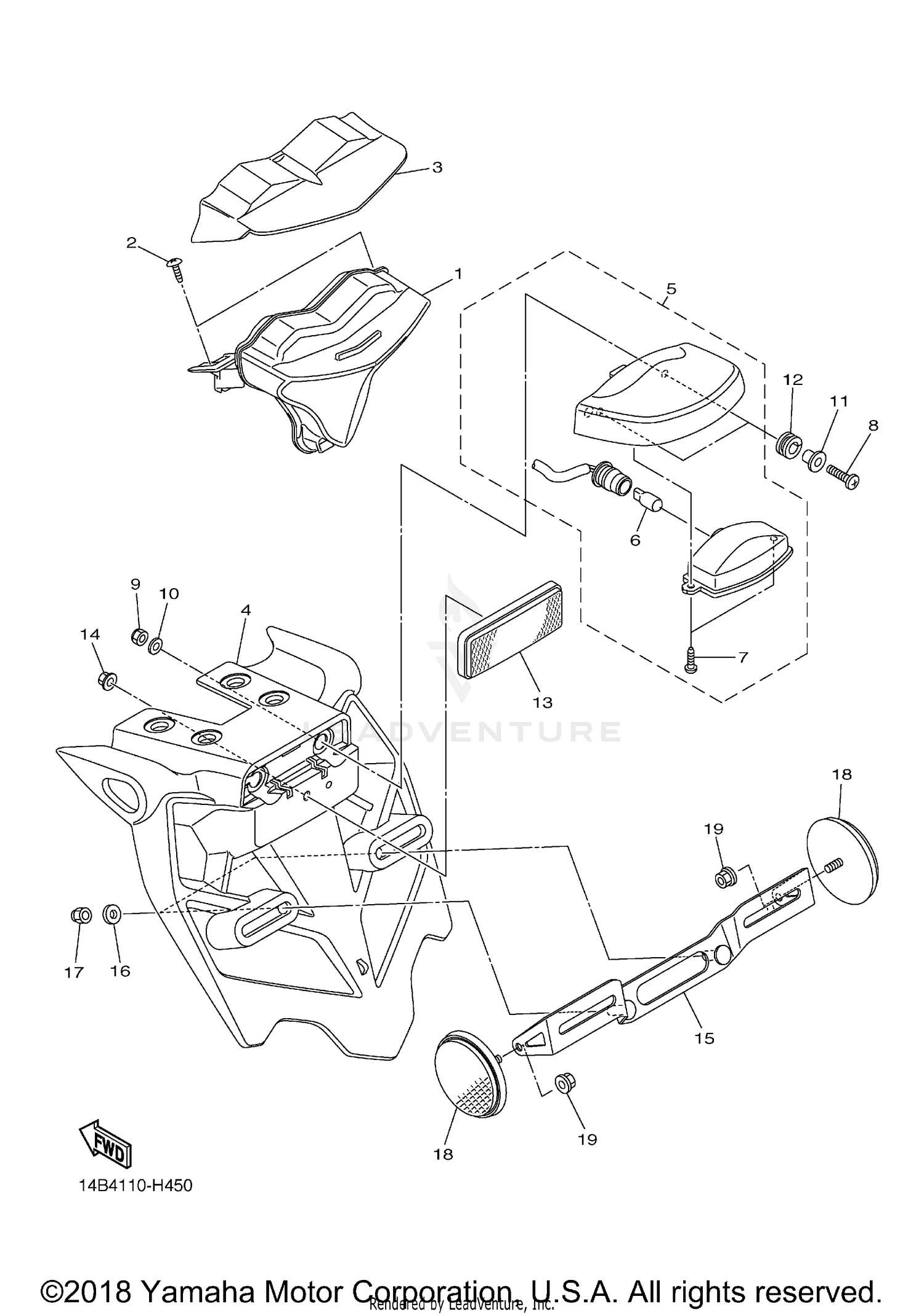

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
14B-84710-10-00
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, TAILLIGHT
14B-84516-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUARD, MUD
14B-21629-00-00
Superseded by 14B-21629-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LICENSE LIGHT UNIT ASSY
5VX-84745-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V-5W)
4SV-84347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, TAPPING
97706-04012-00
Superseded by 97707-40012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, BIND
98902-05020-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-05003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-11009-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, S/L FLANGE
95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, LICENSE
14B-84751-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
REFLECTOR, REAR 1
449-85131-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
