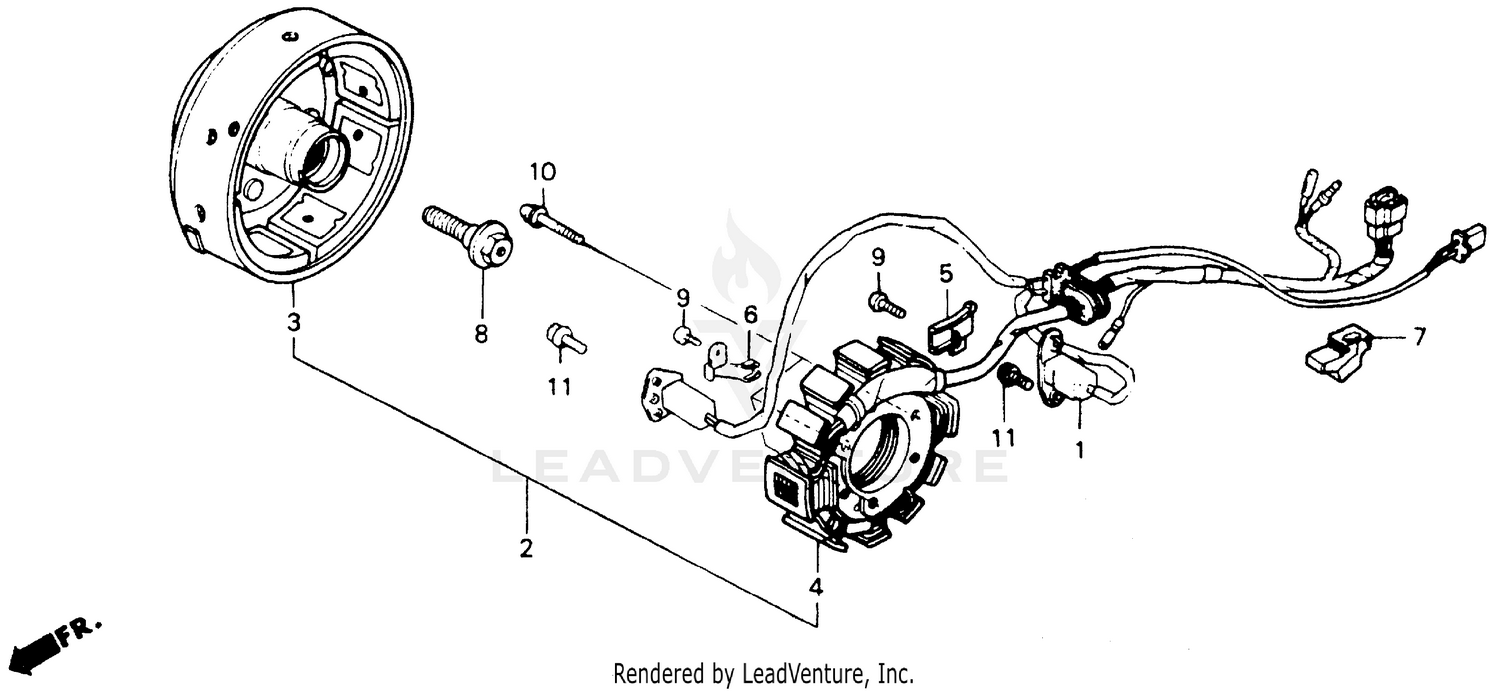

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GENERATOR ASSY., PULSE
30300-KC1-004
|
$118.28 | ||
|
Available to order. Add to View Price |
|||
|
#1
GENERATOR ASSY., PULSE
30300-KC1-920
Superseded by 30300-KC1-004
|
$118.28 | ||
|
Unavailable |
|||
|
#2
GENERATOR ASSY., FLYWHEEL TYPEA.C. (DENSO) (NOT AVAILABLE)
31100-KC1-921
|
$657.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLYWHEEL (DENSO)
31110-KC1-921
|
$380.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
STATOR (DENSO) (NOT AVAILABLE)
31120-KC1-921
|
$241.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, WIRE
32912-KB4-670
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, WIRE
32912-KC1-000
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET, ALTERNATOR WIRE
32972-KC1-850
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, ROTOR SETTING
90123-402-700
|
$14.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SOCKET (5X12)
90089-KR0-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (5X12)
93500-05012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (5X28) (NOT AVAILABLE)
93892-05028-08
|
$0.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-WASHER (6X20) (NOT AVAILABLE)
93892-06020-08
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
