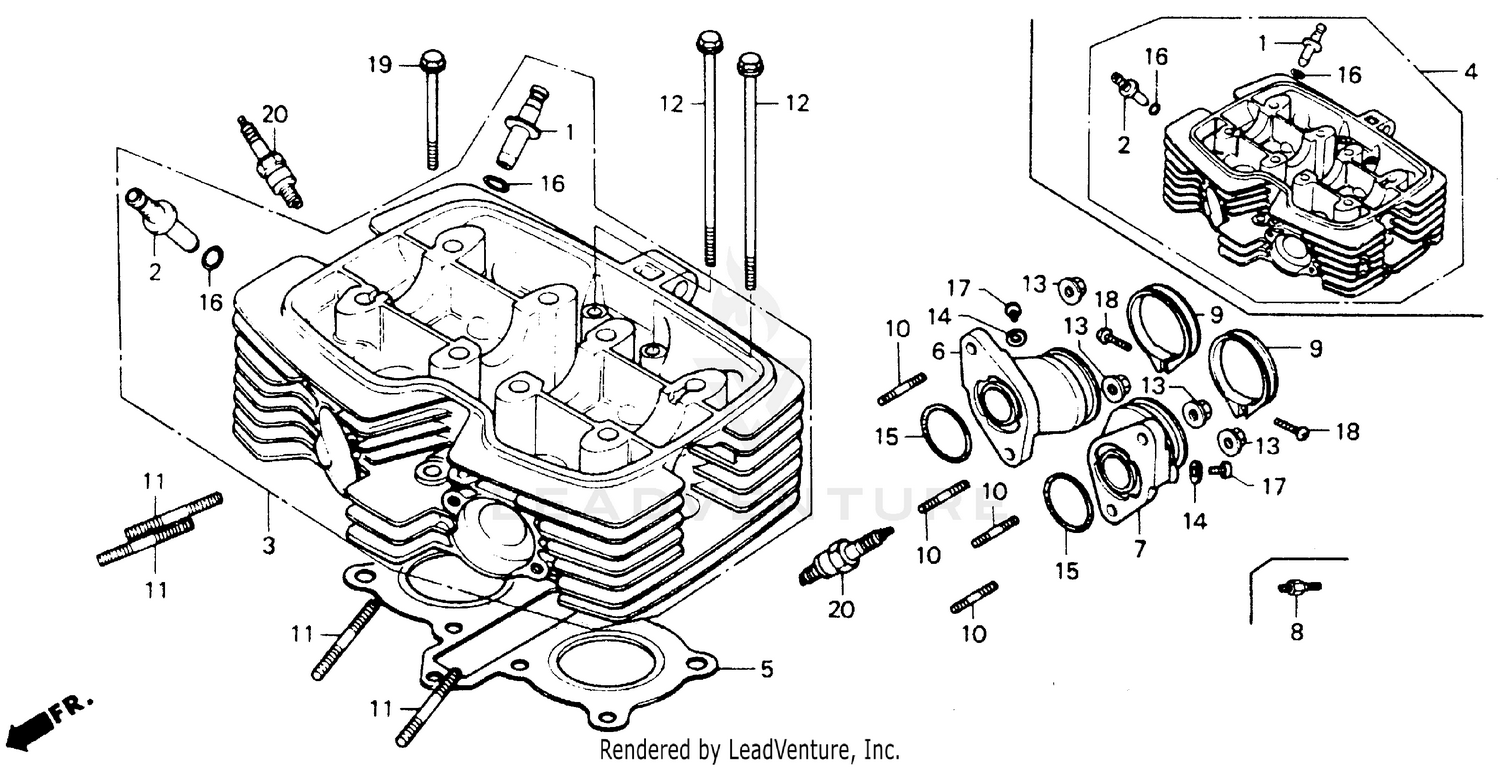

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, VALVE
12021-149-300
Superseded by 12021-149-405
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#1
GUIDE, VALVE
12021-149-405
|
$13.75 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
12023-116-300
Superseded by 12023-465-405
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE
12023-465-405
|
$21.91 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD (NOT AVAILABLE)
12200-KC1-920
|
$441.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET SET, CYLINDER HEAD
12251-399-023
Superseded by 12251-399-307
|
$24.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET SET, CYLINDER HEAD
12251-399-306
Superseded by 12251-399-307
|
$24.40 | ||
|
Unavailable |
|||
|
#5
GASKET SET, CYLINDER HEAD
12251-399-307
|
$24.40 | ||
|
Unavailable |
|||
|
#5
GASKET SET, CYLINDER HEAD
12251-399-309
Superseded by 12251-399-307
|
$24.40 | ||
|
Unavailable |
|||
|
#6
INSULATOR, R. CARBURETOR
16211-KC1-730
|
$35.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, L. CARBURETOR
16221-KC1-730
|
$35.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, INSULATOR
16223-KR3-600
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD (6X28)
90033-KR3-601
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD (6X33)
90034-KR3-000
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X134)
90048-399-000
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (6MM)
90203-PD1-000
Superseded by 94050-06070
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (6MM)
94050-06070
|
$1.45 | ||
|
Unavailable |
|||
|
#14
WASHER, SEALING (5MM)
90452-323-000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (25.5X2.5) (ARAI)
91301-KR3-003
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (10X1.6)
91301-200-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X6)
93500-05006-0A
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (5X20)
93500-05020-0G
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X65)
95701-06065-07
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (CR6HSA) (NGK)
98056-56718
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (U20FSR-U) (DENSO)
98056-56726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (CR7HSA) (NGK)
98056-57718
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (U22FSR-U) (DENSO)
98056-57726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (CR8HSA) (NGK)
98056-58718
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (U24FSR-U) (DENSO)
98056-58726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
