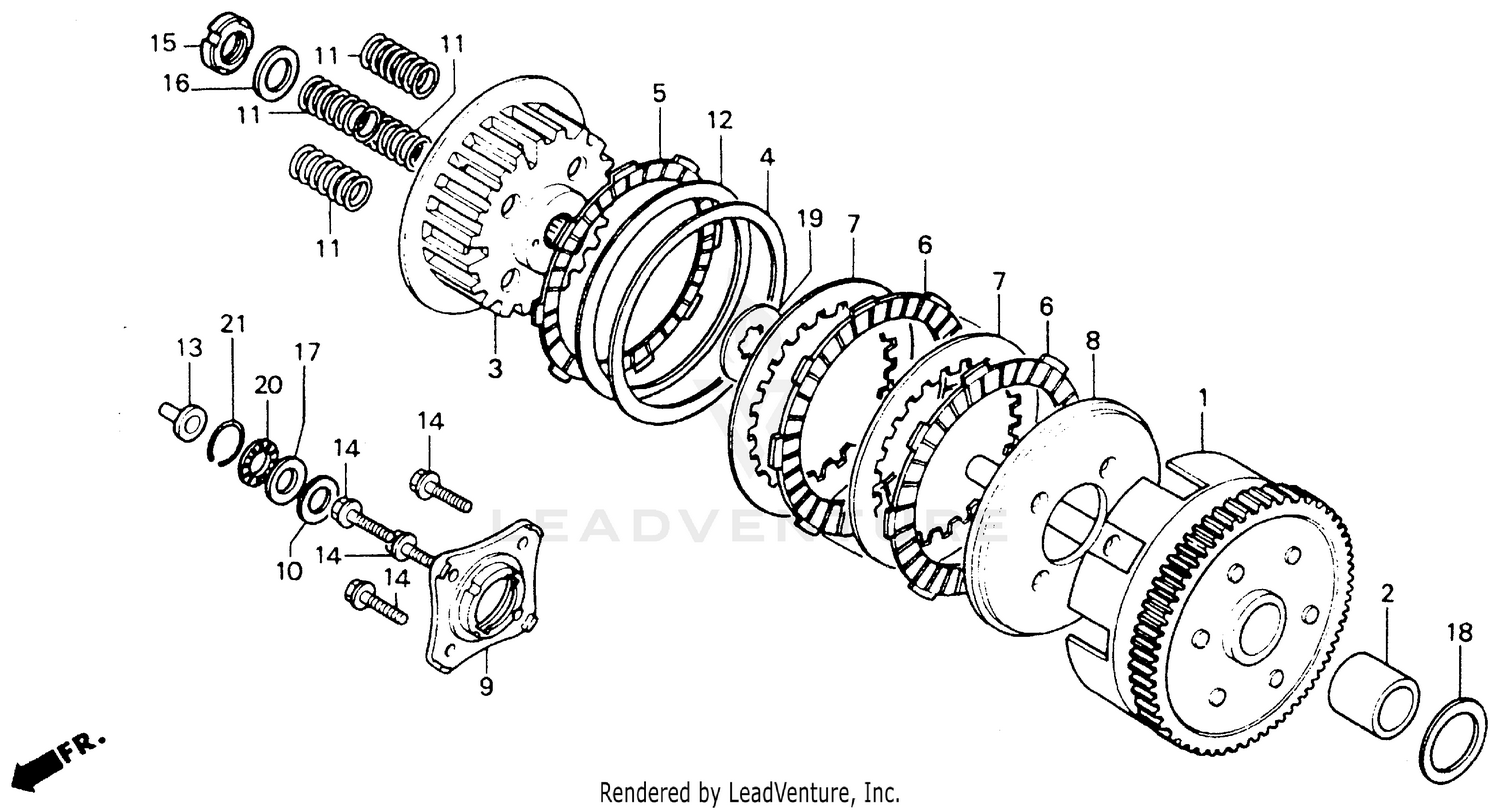

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER
22100-KB4-670
|
$303.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CLUTCH (OUTER)
22116-KB4-671
|
$27.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
CENTER, CLUTCH
22121-KCS-650
|
$41.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
CENTER, CLUTCH
22121-107-010
Superseded by 22121-KCS-650
|
$41.93 | ||
|
Unavailable |
|||
|
#4
SEAT, JUDDER SPRING
22125-MJ8-010
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK, CLUTCH FRICTION
22201-MJ8-000
Superseded by 22201-KAZ-000
|
$30.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-166-000
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH
22311-KN4-680
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH
22311-107-000
Superseded by 22311-KN4-680
|
$7.58 | ||
|
Unavailable |
|||
|
#8
PLATE, CLUTCH PRESSURE
22350-107-010
|
$35.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH LIFTER
22361-437-000
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, CLUTCH LIFTER
22362-KR3-600
|
$26.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH
22401-MB0-000
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, JUDDER
22402-MJ8-010
|
$19.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLUTCH LIFTER
22820-KK0-000
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL FLANGE (6X22)
90050-357-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, LOCK (16MM)
90231-KB5-720
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, LOCK (16MM)
90231-KR3-000
Superseded by 90231-KB5-720
|
$5.63 | ||
|
Unavailable |
|||
|
#16
WASHER (16MM)
90434-KR3-000
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (12MM) (TOYO)
90452-147-003
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (20MM)
90459-KB4-670
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER B, SPLINE (20MM)
90461-107-000
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12MM) (NTN)
91001-147-003
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, NEEDLE THRUST BEARING (12MM)
91012-KF0-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
