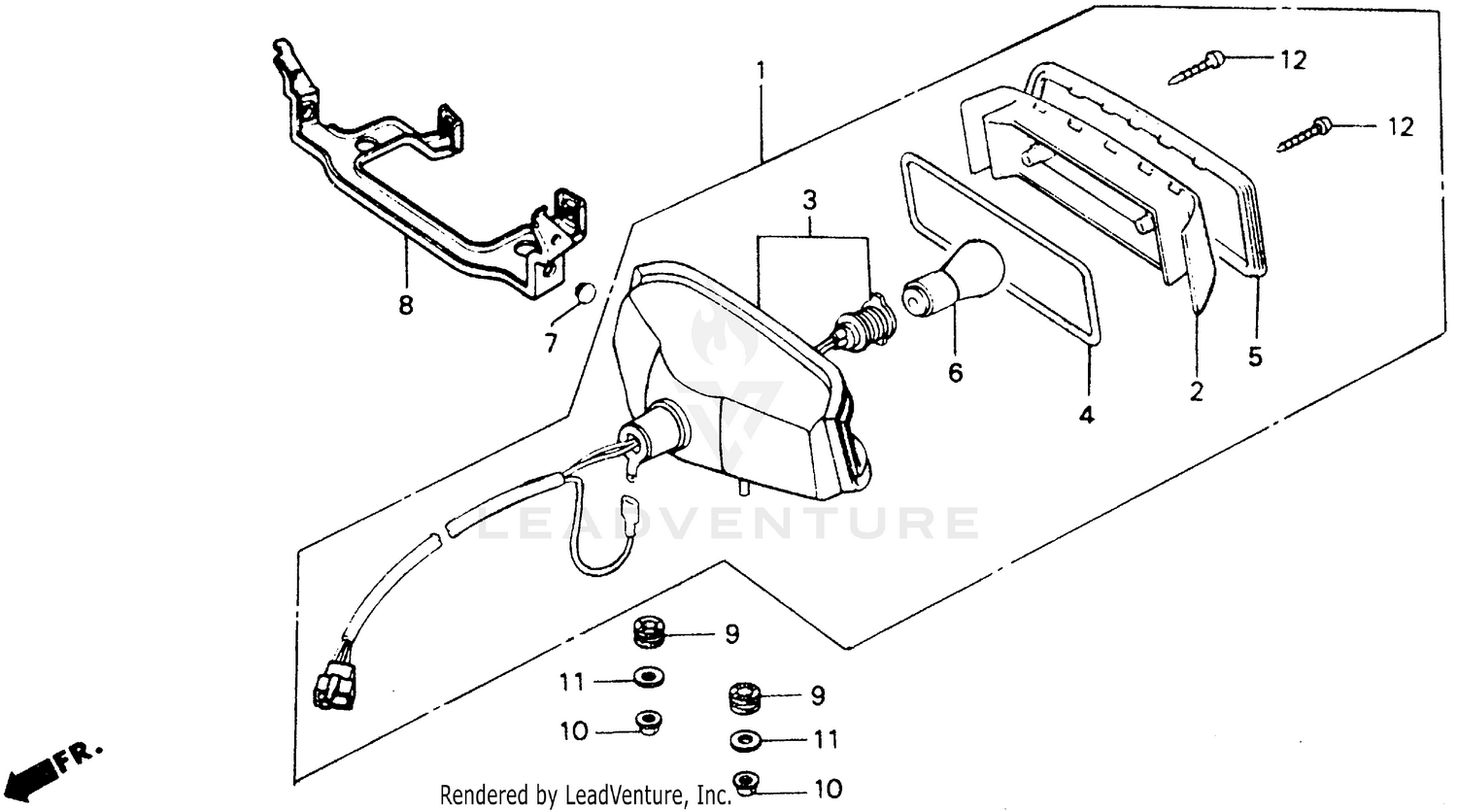

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT (NOT AVAILABLE)
33701-KC1-920
|
$84.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, TAILLIGHT
33702-KC1-003
|
$27.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, TAILLIGHT (NOT AVAILABLE)
33703-KC1-013
|
$23.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, TAILLIGHT
33709-KC1-003
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, TAILLIGHT
33718-KC1-003
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB, TAILLIGHT (12V 32/3CP) (STANLEY)
34906-425-771
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, CHAIN GUARD
40514-377-000
Superseded by 40514-333-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, TAILLIGHT
50457-KC1-000
|
$17.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, TAILLIGHT MOUNTING
84703-KC1-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE (6MM)
90203-PD1-000
Superseded by 94050-06070
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE (6MM)
90301-428-900
Superseded by 94050-06070
|
$1.45 | ||
|
Unavailable |
|||
|
#10
NUT, FLANGE (6MM)
94050-06070
|
$1.45 | ||
|
Unavailable |
|||
|
#11
WASHER, WHEEL (6MM)
90563-355-000
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, WHEEL (6MM)
91414-634-000
Superseded by 90563-355-000
|
$3.77 | ||
|
Unavailable |
|||
|
#12
SCREW, TAPPING (4X30)
93901-34780
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
