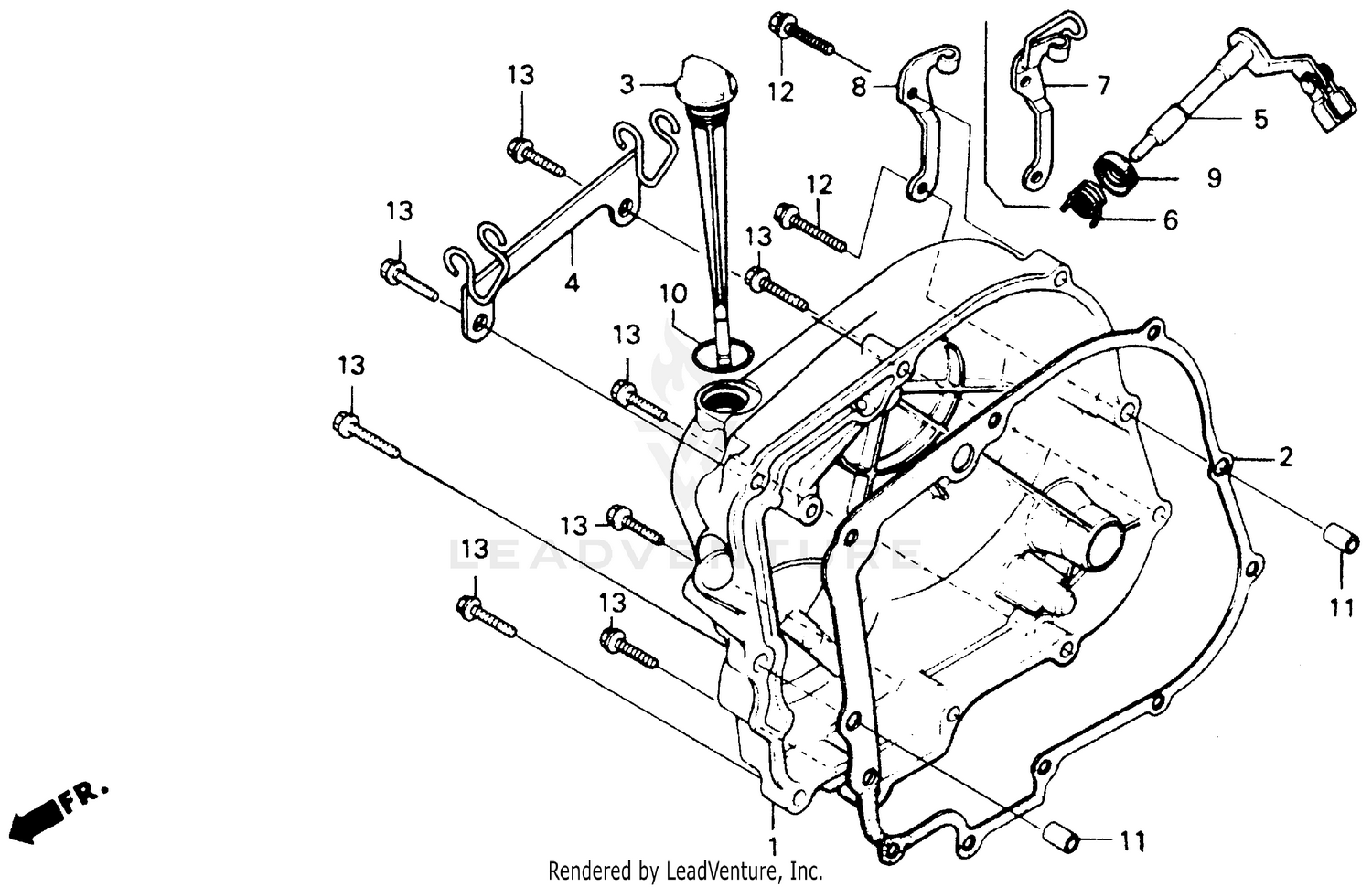

Right Clankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE (NOT AVAILABLE)
11330-KC1-920
|
$185.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, R.
11393-KBG-771
Superseded by 11393-KBG-773
|
$24.06 | ||
|
Unavailable |
|||
|
#2
GASKET, R.
11393-KBG-772
Superseded by 11393-KBG-773
|
$24.06 | ||
|
Unavailable |
|||
|
#2
GASKET, R.
11393-KB4-306
Superseded by 11393-KBG-773
|
$24.06 | ||
|
Unavailable |
|||
|
#2
GASKET, R.
11393-KB4-670
Superseded by 11393-KBG-773
|
$24.06 | ||
|
Unavailable |
|||
|
#2
GASKET, R.
11393-KC2-760
Superseded by 11393-KBG-773
|
$24.06 | ||
|
Unavailable |
|||
|
#3
DIPSTICK, OIL
15650-KC1-000
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER, CLUTCH
22810-KR3-600
|
$52.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CLUTCH LEVER
22815-KE1-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
RECEIVER, CLUTCH CABLE
22838-KR3-600
|
$26.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (12X18X5) (ARAI)
91204-KK0-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (18X3)
91307-035-000
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X40)
96001-06040-07
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
