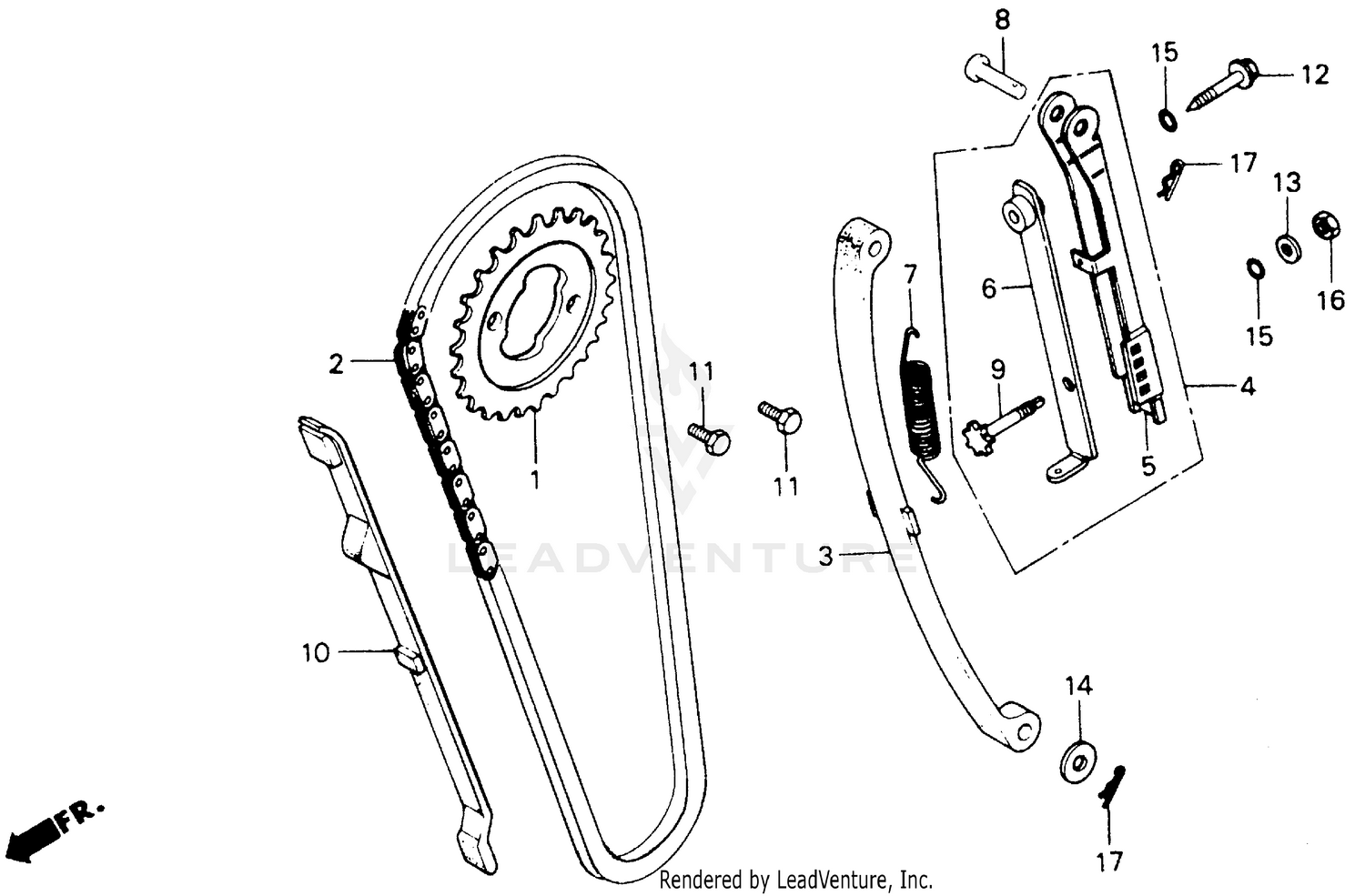

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (38T)
14321-402-730
|
$40.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM
14401-402-731
|
$135.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN
14500-464-013
|
$65.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE ASSY., CAM CHAIN TENSIONER (NOT AVAILABLE)
14510-399-010
|
$36.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
BASE, CAM CHAIN TENSIONER
14511-399-310
|
$26.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE B, CAM CHAIN TENSIONER
14513-399-300
|
$19.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, CAM CHAIN TENSIONER
14515-402-730
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CAM CHAIN TENSIONER (NOT AVAILABLE)
14518-413-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUSTER, CAM CHAIN TENSIONER
14538-399-300
|
$7.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, CAM CHAIN (HOKUSHIN)
14550-402-731
|
$31.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. KNOCK (7X13)
90086-413-000
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (6MM)
90125-KB4-670
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING (6MM)
90442-035-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPARK ADVANCER SETTING
90486-028-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (5.8X1.9)
91305-323-000
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#17
PIN, LOCK (6MM)
94251-06000
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
