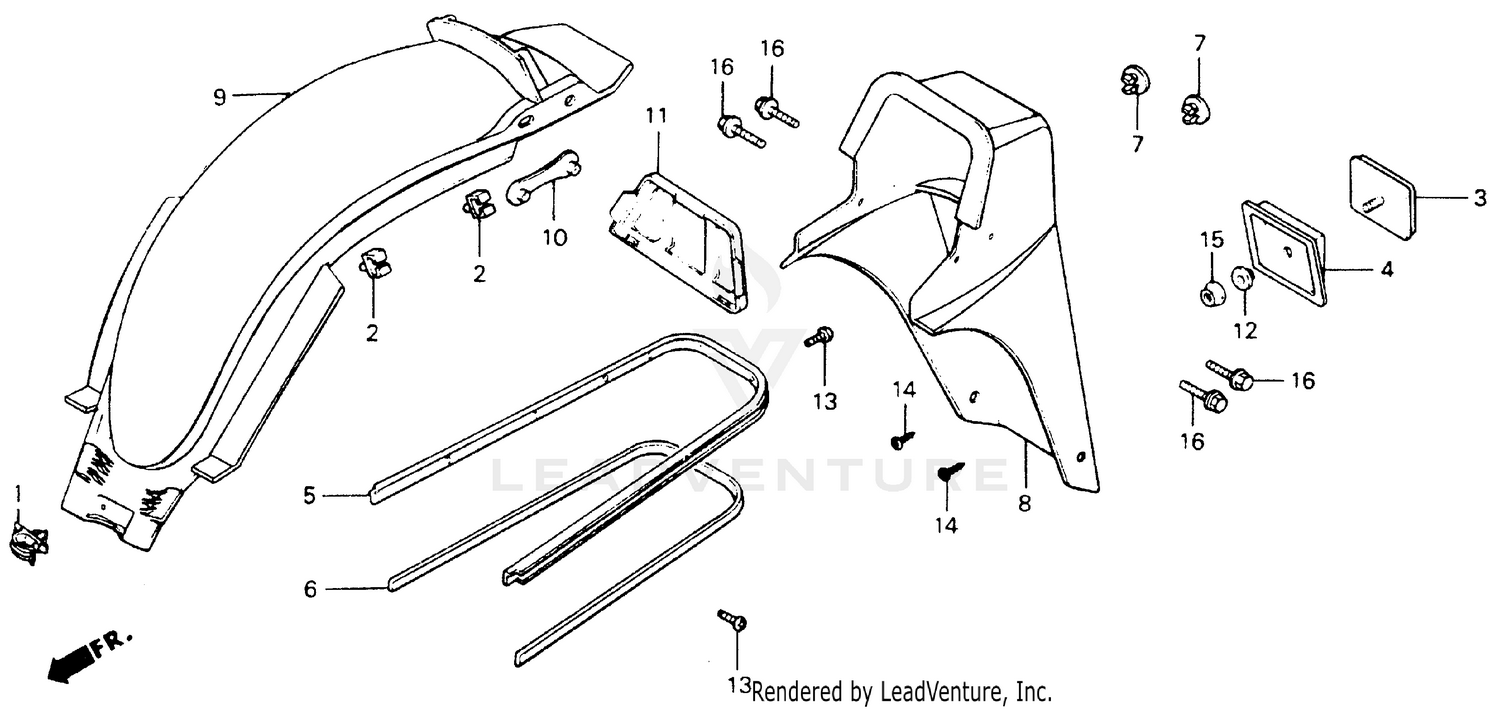

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP B, HARNESS
32172-GJ1-003
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, CABLE
32985-KC1-831
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
REFLECTOR, RR. REFLEX
33741-415-602
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE, RR. REFLEX REFLECTOR
33745-425-610
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, SIDE GRIP
50450-KC1-830
|
$251.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, SIDE GRIP BAR
50451-KC1-000
|
$33.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, METER (NOT AVAILABLE)
66214-538-911
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
FENDER A, RR.
80100-KC1-000
|
$96.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
FENDER B, RR.
80101-KC1-920
|
$91.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, RR. FENDER SETTING
80135-KC1-000
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, GLOVE BOX
83502-KC1-830
|
$21.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (6X20)
90512-300-000
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN (6X12)
93500-06012-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING (5X16)
93903-35380
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (6MM)
94050-06080
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
