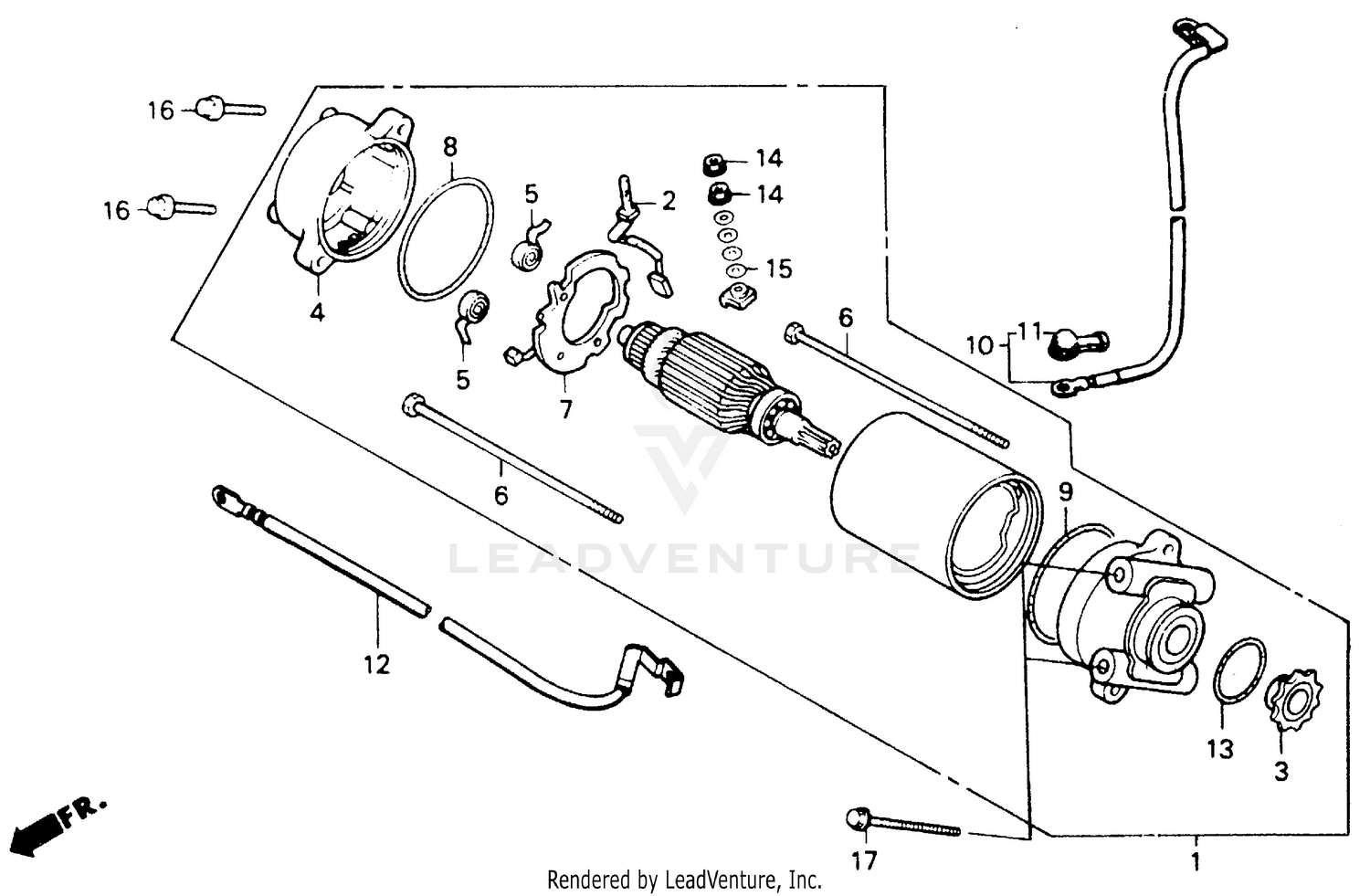

Starting Motor Diagram
Item | MSRP | Qty | |
---|---|---|---|
#1
STARTER MOTOR ASSY. (NOT AVAILABLE)
31200-KC1-010
Superseded by 31200-KC1-020
|
$302.24 | ||
Available to order. Add to View Price |
|||
#2
TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)
31201-KS5-901
|
$28.64 | ||
Available to order. Add to View Price |
|||
#3
SPROCKET, STARTER MOTOR (13T)
31202-216-154
|
$55.09 | ||
Available to order. Add to View Price |
|||
#4
BRACKET B, END (NOT AVAILABLE)
31203-KC1-000
|
$54.50 | ||
Available to order. Add to View Price |
|||
#5
SPRING, CARBON BRUSH
31204-KS5-901
|
$3.38 | ||
Available to order. Add to View Price |
|||
#6
BOLT, SETTING
31205-KC1-010
|
$6.50 | ||
Available to order. Add to View Price |
|||
#7
HOLDER SET, BRUSH
31206-MN4-008
|
$27.04 | ||
Available to order. Add to View Price |
|||
#8
RING
31207-KS5-901
|
$3.75 | ||
Available to order. Add to View Price |
|||
#9
RING, SEAL
31207-179-711
|
$5.08 | ||
Available to order. Add to View Price |
|||
#10
CABLE, STARTER MOTOR
32410-KC1-920
|
$35.35 | ||
Available to order. Add to View Price |
|||
#11
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$7.60 | ||
Available to order. Add to View Price |
|||
#11
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$7.60 | ||
Unavailable |
|||
#12
CABLE, BATTERY GROUND
32601-KC1-920
|
$21.98 | ||
Available to order. Add to View Price |
|||
#13
O-RING, PINION CAP
53438-611-000
|
$6.35 | ||
Available to order. Add to View Price |
|||
#14
NUT-WASHER (6MM)
90071-MB0-000
|
$2.25 | ||
Available to order. Add to View Price |
|||
#15
O-RING (4X2)
91320-MB0-000
|
$2.66 | ||
Available to order. Add to View Price |
|||
#16
BOLT, FLANGE (6X25)
96001-06025-07
|
$1.48 | ||
Available to order. Add to View Price |
|||
#17
BOLT, FLANGE (6X65)
96001-06065-07
|
$2.14 | ||
Available to order. Add to View Price |
