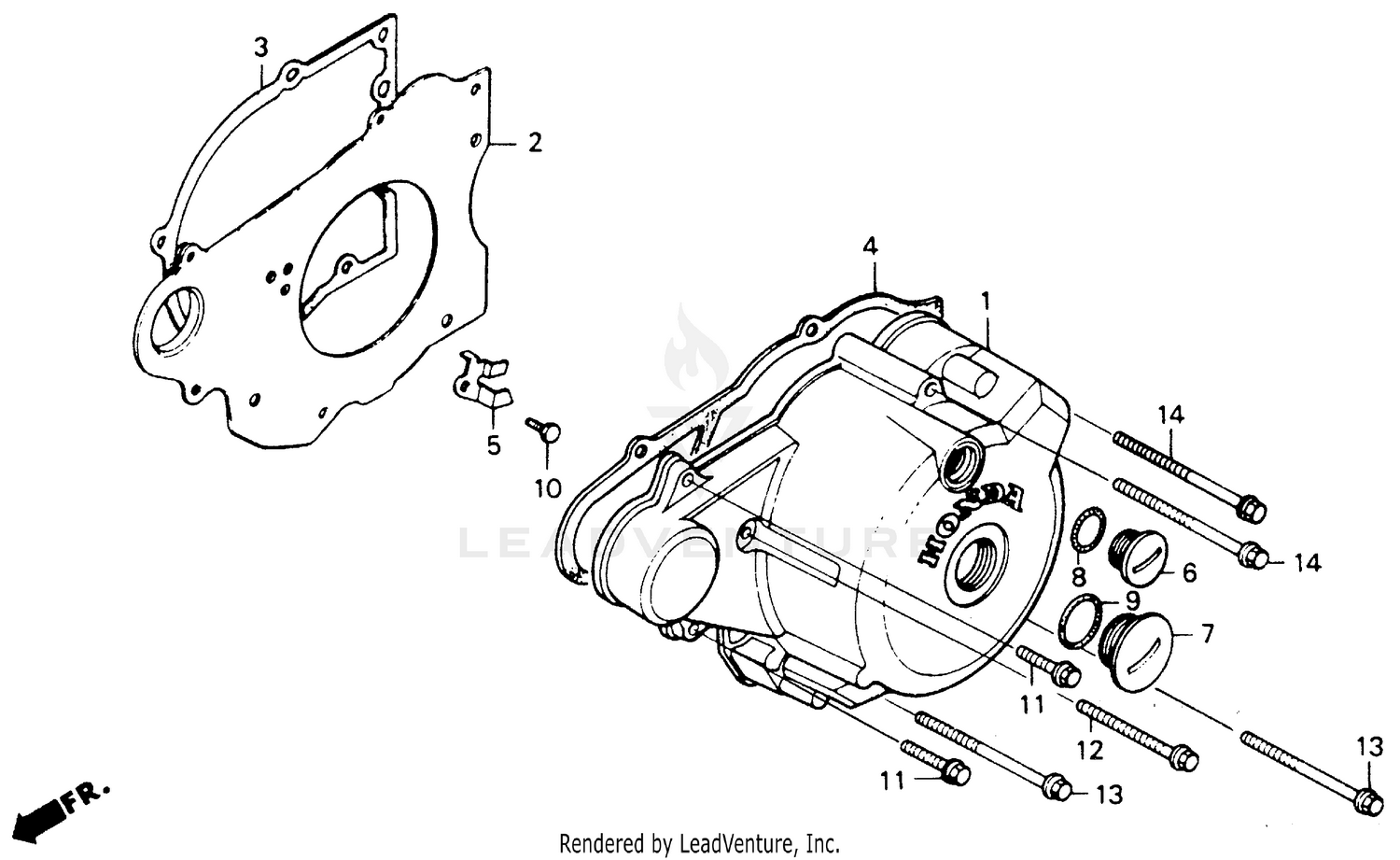

Left Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE (NOT AVAILABLE)
11341-KC1-920
|
$152.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, L. SIDE
11371-KC1-000
|
$63.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L.
11394-KBG-771
Superseded by 11394-KBG-773
|
$15.39 | ||
|
Unavailable |
|||
|
#3
GASKET, L.
11394-KBG-772
Superseded by 11394-KBG-773
|
$15.39 | ||
|
Unavailable |
|||
|
#3
GASKET, L.
11394-399-000
Superseded by 11394-KBG-773
|
$15.39 | ||
|
Unavailable |
|||
|
#3
GASKET, L.
11394-399-306
Superseded by 11394-KBG-773
|
$15.39 | ||
|
Unavailable |
|||
|
#4
GSKT, L. SIDE SPACER
11395-KBG-771
Superseded by 11395-KBG-773
|
$15.45 | ||
|
Unavailable |
|||
|
#4
GSKT, L. SIDE SPACER
11395-KC1-000
Superseded by 11395-KBG-773
|
$15.45 | ||
|
Unavailable |
|||
|
#4
GSKT, L. SIDE SPACER
11395-KC1-306
Superseded by 11395-KBG-773
|
$15.45 | ||
|
Unavailable |
|||
|
#5
PLATE, STARTING SPROCKET SETTING
28117-402-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, ALTERNATOR
90084-471-000
|
$11.65 | ||
|
Unavailable |
|||
|
#7
CAP (30MM)
90087-471-000
Superseded by 90087-MR1-000
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (27.4X2.4) (ARAI)
91302-567-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (27.4X2.4) (ARAI)
91302-567-005
Superseded by 91302-567-003
|
$9.56 | ||
|
Unavailable |
|||
|
#9
O-RING (13.8X2.5)
91303-377-000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X20)
96001-06020-07
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X40)
96001-06040-07
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X50)
96001-06050-07
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X65)
96001-06065-07
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
