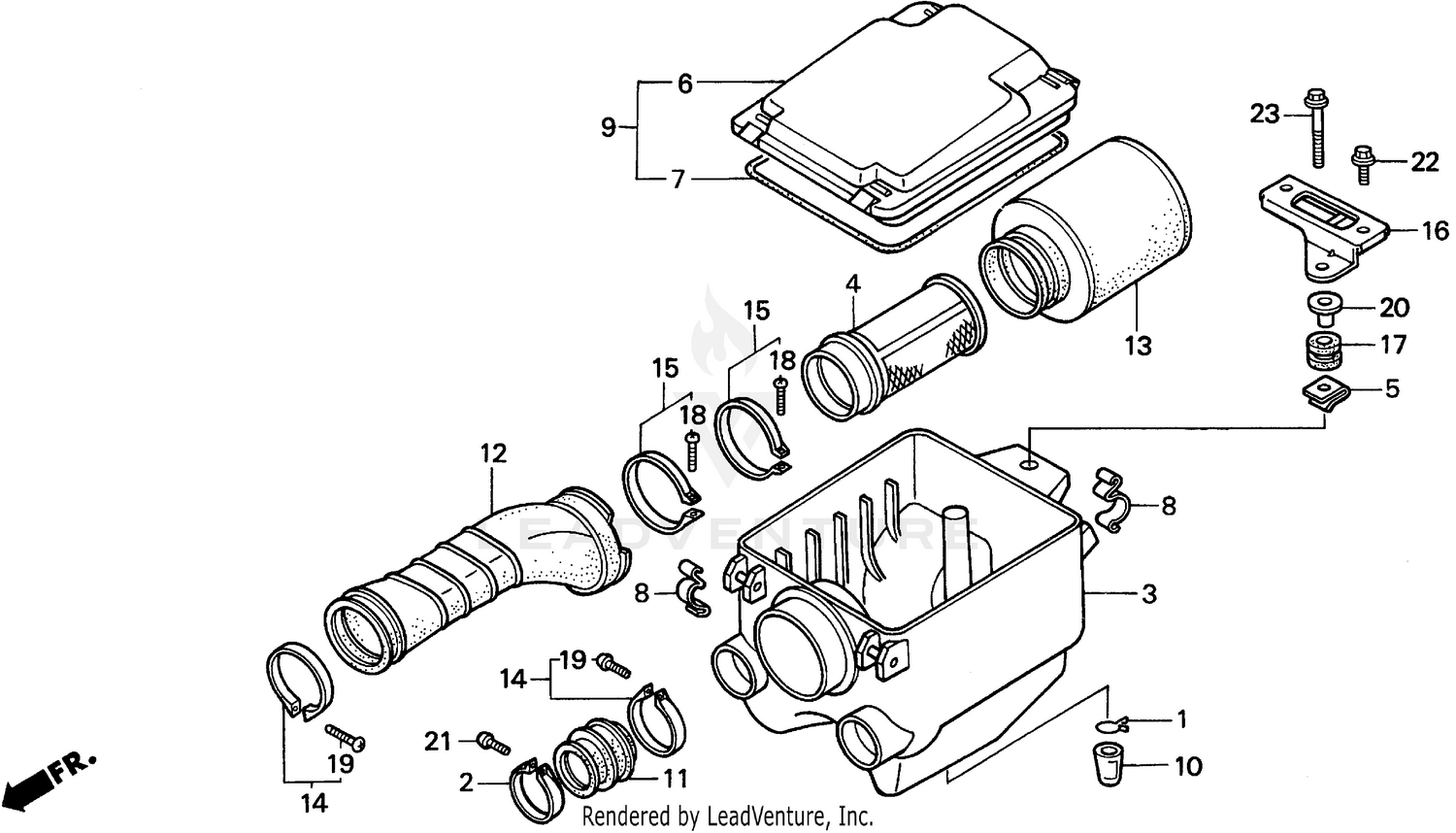

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, BREATHER TUBE
15772-500-010
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#1
CLIP, BREATHER TUBE
15772-500-013
Superseded by 15772-500-010
|
$4.69 | ||
|
Unavailable |
|||
|
#2
BAND, INSULATOR
16223-KA3-740
|
$16.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
AIR CLEANER HOUSING
17210-HC0-010
|
$124.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY, AIR CLEANER
17211-HC0-000
|
$79.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, AIR CLEANER HOUSING SETTING
17212-965-000
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
LID, AIR CLEANER HOUSING
17217-HC0-000
|
$53.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, AIR CLEANER COVER
17219-HA2-405
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, AIR CLEANER COVER
17219-HC0-000
Superseded by 17219-HA2-405
|
$7.16 | ||
|
Unavailable |
|||
|
#8
SPRING, AIR CLEANER HOUSING LID (TOYO)
17223-HB3-003
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, VINYL (11X15X45)
17227-HC0-000
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, AIR IN.
17252-HC0-000
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)
17253-HC0-000
|
$59.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
AIR CLEANER
17254-HC0-680
|
$31.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (60)
17257-HA0-000
Superseded by 95018-60250
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (60)
17257-HA0-680
Superseded by 95018-60250
|
$7.51 | ||
|
Unavailable |
|||
|
#14
BAND, AIR CLEANER CONNECTING TUBE (60)
95018-60250
|
$7.51 | ||
|
Unavailable |
|||
|
#15
BAND, AIR CLEANER
17257-HB5-000
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, SEAT LOCK
50190-HC0-000
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, SEAT SETTING
77206-MJ0-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90101-HB5-000
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (4X25)
90107-HA0-680
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR (6X14.8)
90501-438-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (5X25)
93500-05025-0G
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X28)
95701-06028-08
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
