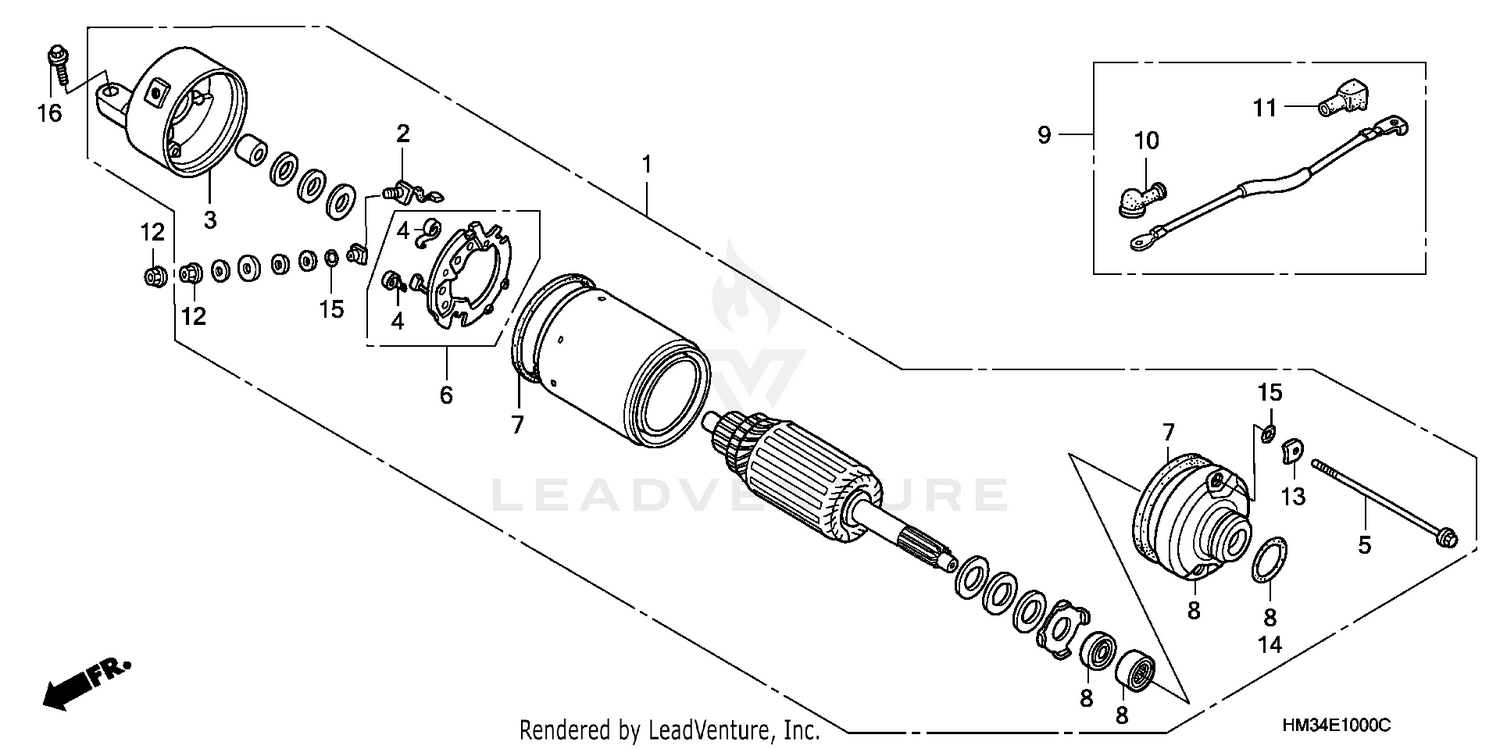

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY.
31200-HM3-671
|
$507.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)
31201-KS5-901
|
$28.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CARBON BRUSH
31204-KS5-901
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SETTING
31205-MN4-008
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)
31206-KW1-901
|
$30.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING
31207-KS5-901
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, FR.
31210-HM7-003
|
$89.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, STARTER MOTOR
32402-HM3-670
|
$35.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$7.60 | ||
|
Unavailable |
|||
|
#11
COVER B, STARTER MAGNETIC
32416-KAF-000
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-WASHER (6MM)
90071-MB0-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, STEEL PLATE
90122-MN4-008
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (24.4X3.1)
91312-MG7-003
|
$7.61 | ||
|
Unavailable |
|||
|
#15
O-RING (4X2)
91320-MB0-000
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X25)
95801-06025-00
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
