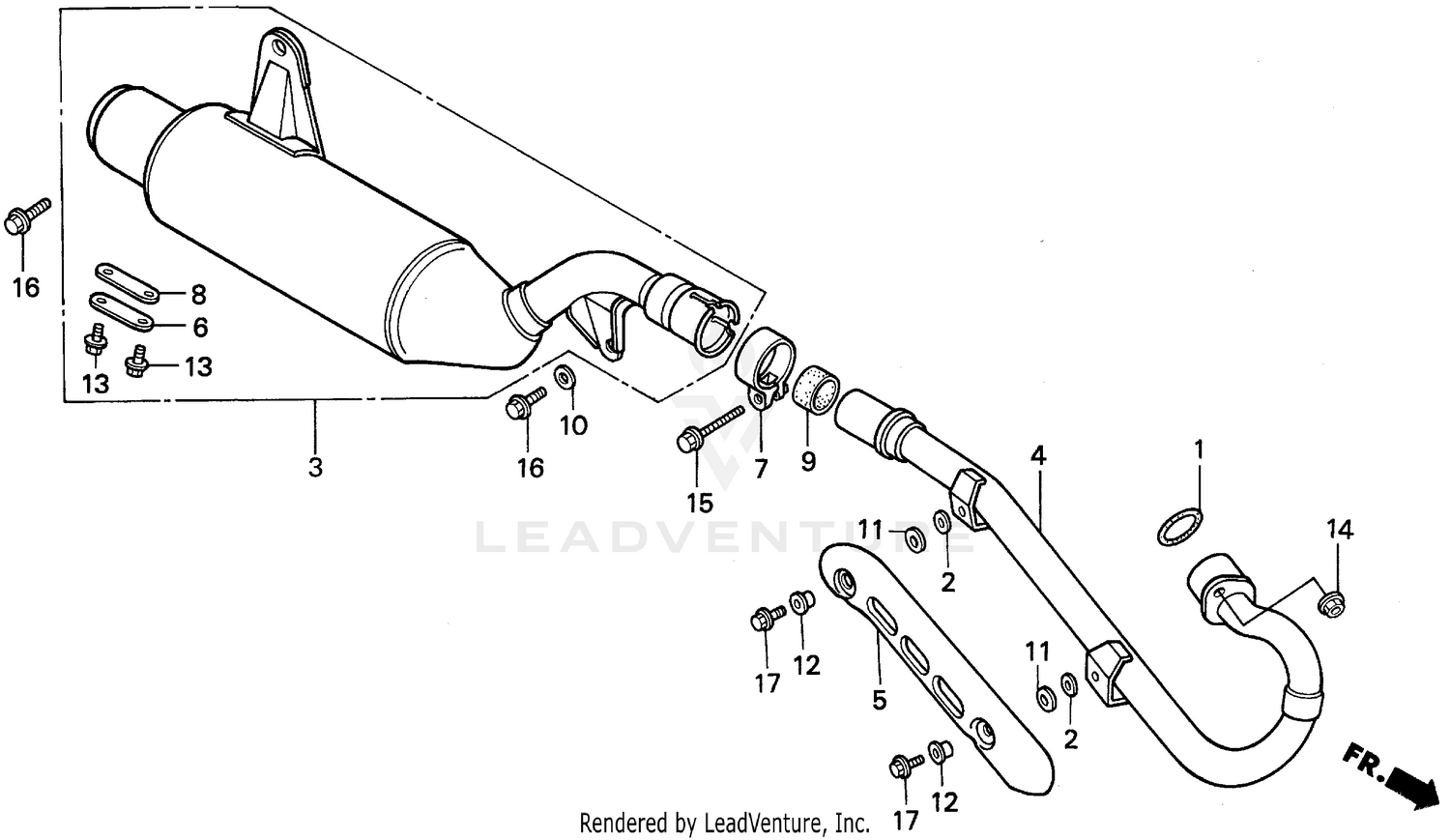

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MV9-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, PROTECTOR
18293-MCA-780
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, PROTECTOR
18293-MN5-650
Superseded by 18293-MCA-780
|
$5.81 | ||
|
Unavailable |
|||
|
#3
MUFFLER
18310-HM3-000
|
$650.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EX.
18320-HM3-000
|
$163.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, EX. PIPE
18321-HC0-000
|
$53.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
LID, MUFFLER
18373-429-010
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, L. EX. PIPE
18374-MB6-003
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, MUFFLER LID
18374-MN1-880
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, MUFFLER
18391-MN5-650
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN (10MM)
90401-437-000
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6MM)
90485-286-000
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RR. COVER
90554-GC3-000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X12)
93401-06012-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (6X12)
93411-06012-07
Superseded by 93401-06012-07
|
$1.64 | ||
|
Unavailable |
|||
|
#13
BOLT-WASHER (6X12)
93481-06012-07
Superseded by 93401-06012-07
|
$1.64 | ||
|
Unavailable |
|||
|
#14
NUT, FLANGE (8MM)
94050-08020
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X35)
95701-08035-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X16)
95701-10016-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14)
96001-06014-02
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
