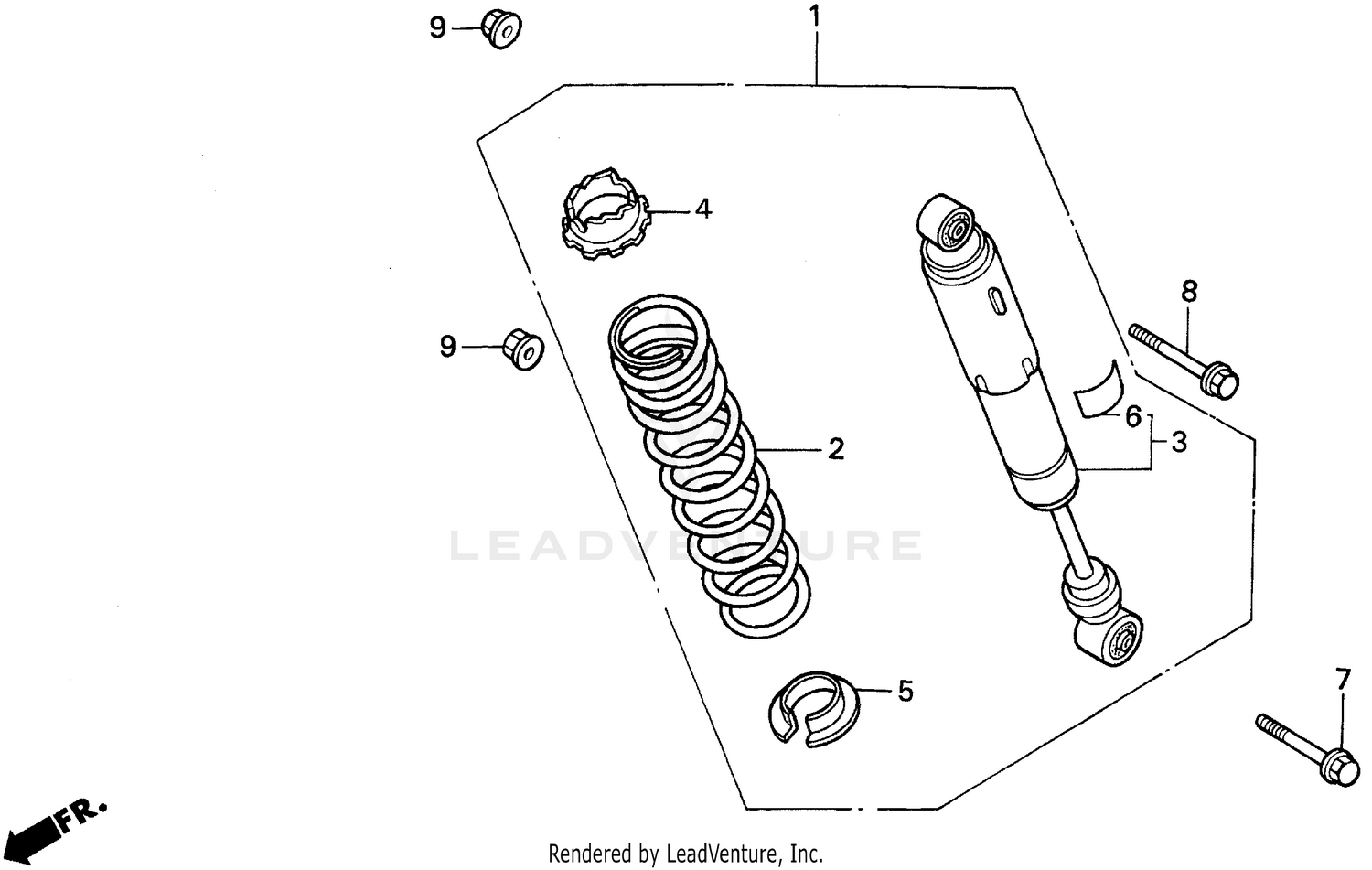

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR. (KAYABA)
52400-HM3-004
|
$471.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, RR. SHOCK ABSORBER
52401-HM3-004
|
$177.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RR.
52410-HM3-004
|
$505.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING
52422-HC0-004
|
$63.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, SPRING (LOWER)
52424-HC0-004
|
$26.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, RR. DAMPER (ENGLISH)
87516-KV6-610
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (12X58)
90155-HC0-000
|
$15.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (12X66)
90156-HC0-000
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
