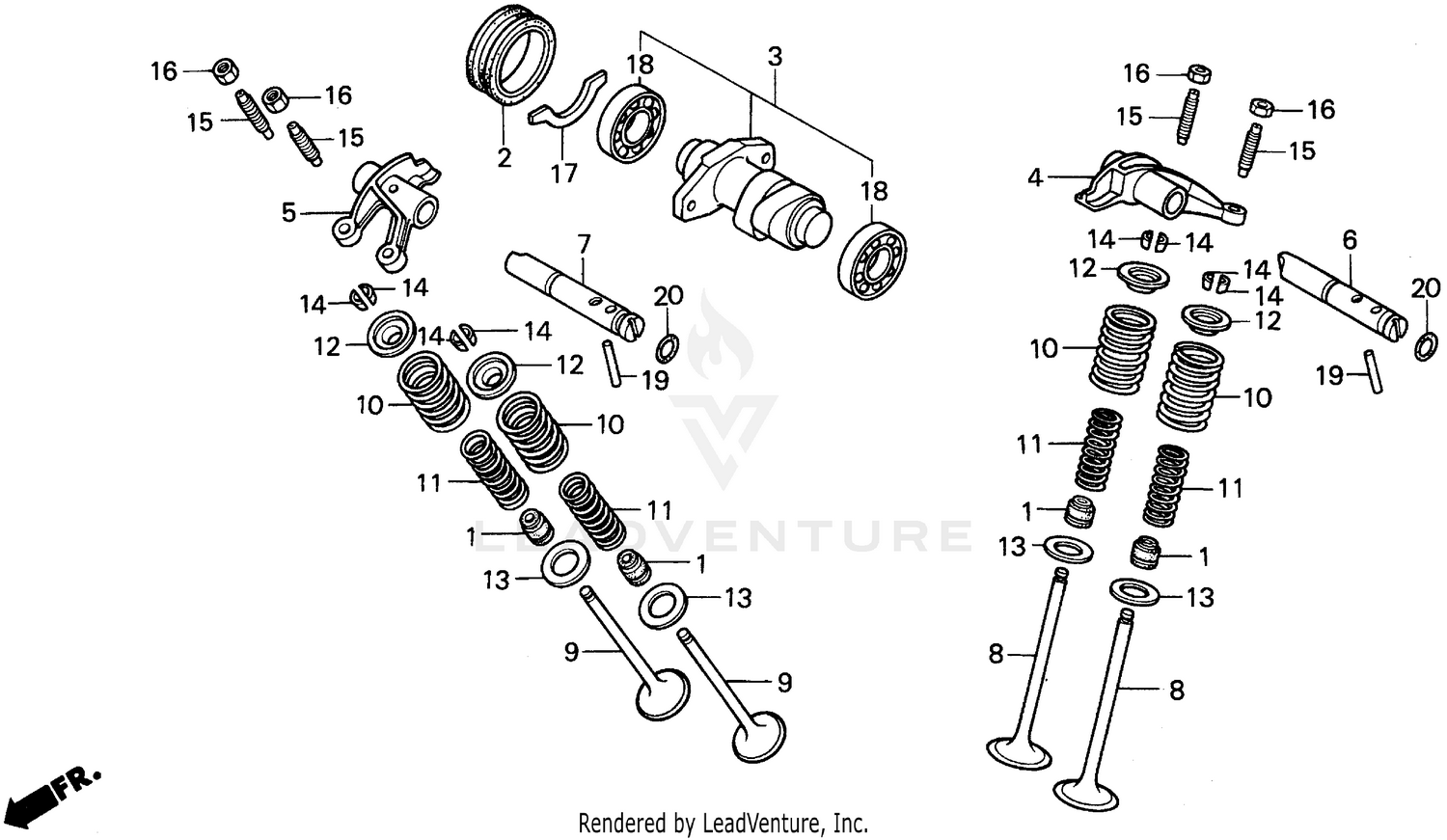

Camshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, VALVE STEM (NOK)
12209-KL4-005
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, CYLINDER HEAD SIDE
12312-HC0-000
|
$20.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAMSHAFT
14100-HC0-010
|
$187.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, IN. VALVE ROCKER
14431-HC0-000
|
$83.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM, EX. VALVE ROCKER
14441-HC0-000
|
$109.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, IN. ROCKER ARM
14455-HC0-000
|
$40.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, EX. ROCKER ARM
14456-HC0-000
|
$40.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE, IN.
14711-HC0-000
|
$47.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, EX.
14721-HC0-000
|
$81.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, VALVE (OUTER) (CHUO HATSUJO)
14751-HM3-671
Superseded by 14751-HM3-672
|
$11.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, VALVE (OUTER) (CHUO HATSUJO)
14751-HM3-672
|
$11.74 | ||
|
Unavailable |
|||
|
#11
SPRING, VALVE (INNER) (CHUO HATSUJO)
14761-HM3-671
Superseded by 14761-HM3-672
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, VALVE (INNER) (CHUO HATSUJO)
14761-HM3-672
|
$7.84 | ||
|
Unavailable |
|||
|
#12
RETAINER, VALVE SPRING
14771-KE5-000
|
$13.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT, VALVE SPRING
14775-KE5-000
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
COTTER, VALVE
14781-HA0-770
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPET ADJUSTING
90012-KK3-830
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, TAPPET ADJUSTING
90206-250-000
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, CAMSHAFT SETTING
90446-HC0-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (16003)
91010-HC0-003
Superseded by 91011-KK6-013
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (16003)
91011-KK6-013
|
$17.85 | ||
|
Unavailable |
|||
|
#19
PIN, DOWEL (5X38)
91102-HA0-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (7.7X2.5)
91303-428-003
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
