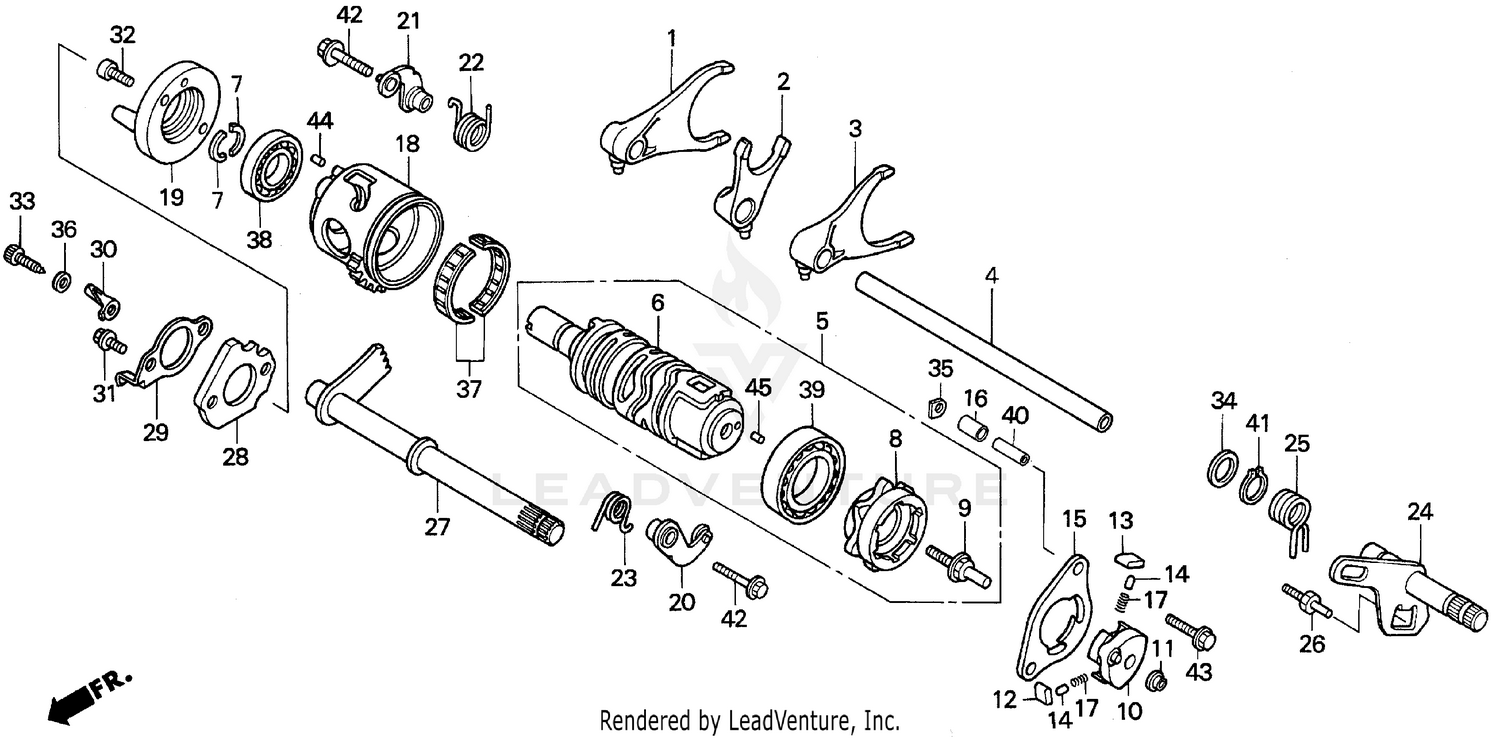

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-HM3-670
|
$77.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-HC0-000
|
$82.61 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, L. GEARSHIFT
24213-HC0-010
|
$88.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-HM3-670
|
$38.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM ASSY., GEARSHIFT
24300-HM3-671
|
$176.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRUM, GEARSHIFT
24301-HM3-671
|
$157.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, BEARING SETTING SEPARATE
24302-HC0-000
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
CENTER, SHIFT DRUM
24312-HC0-010
|
$46.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, SHIFTER
24315-HA0-000
|
$14.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFTER, DRUM
24321-HC0-000
|
$62.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SHIFTER
24322-HA0-000
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAWL A, RATCHET
24324-KA3-711
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAWL B, RATCHET
24325-KA3-711
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUNGER, PAWL
24326-KBH-901
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, GUIDE
24328-HA5-010
|
$15.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, GUIDE PLATE DISTANCE
24329-HA0-000
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
DRUM, REVERSE GEARSHIFT
24351-HC0-010
|
$88.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, REVERSE DRUM BEARING
24361-HC0-000
|
$50.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOPPER, GEARSHIFT DRUM
24430-HA0-000
|
$22.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
STOPPER, REVERSE SHIFT
24430-HC0-000
|
$21.48 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, REVERSE SHIFT DRUM STOPPER
24435-HC0-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, SHIFT DRUM STOPPER
24436-HM3-670
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#24
ARM, GEARSHIFT
24610-HC0-000
|
$68.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, SHIFT RETURN
24651-HC0-003
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, RETURN SPRING
24652-KY4-900
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPINDLE, REVERSE SHIFT
24665-HM3-670
|
$59.48 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAM, REVERSE STOPPER
24666-HC0-000
|
$25.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROTOR, REVERSE SWITCH
24667-HM3-670
Superseded by 24667-HM3-671
|
$10.02 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROTOR, REVERSE SWITCH
24667-HM3-671
|
$10.02 | ||
|
Unavailable |
|||
|
#30
ROTOR, NEUTRAL SWITCH
24668-HM3-670
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE KNOCK (6X16.5)
90001-HC0-000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, SOCKET (6X14)
90002-HC0-000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SOCKET (6X16)
90036-KY4-900
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, THRUST (13MM)
90401-HA5-000
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, BEARING HOLDER
90441-HA0-000
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, THRUST
90444-ZA8-000
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, SPECIAL NEEDLE (37X43X13)
91008-HC0-003
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (6902) (NTN)
91008-KV0-003
|
$35.41 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING (16005) (KOYO)
91051-719-003
|
$33.16 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, DOWEL (8X26.5)
91104-HA0-000
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP (OUTER) (13MM)
94510-13000
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X32)
95701-06032-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#44
ROLLER (3X8.5)
96220-30085
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#45
ROLLER (4X8)
96220-40080
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
