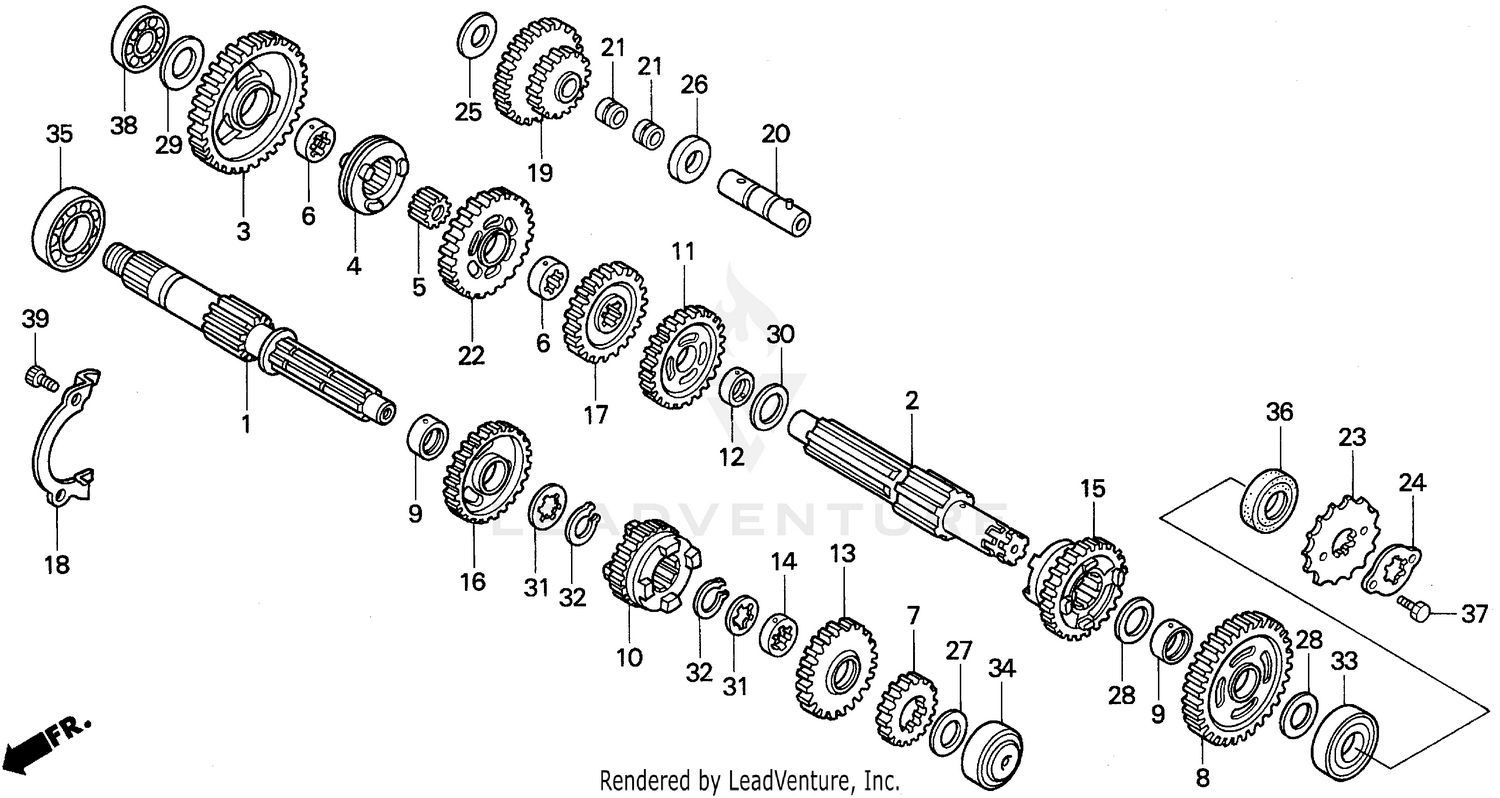

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (13T)
23210-HM3-670
|
$164.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23220-HM3-670
|
$190.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (48T)
23411-HM3-670
|
$157.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIFTER, REVERSE COUNTERSHAFT LOW GEAR
23412-HC0-000
|
$79.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SPLINE
23413-HC0-000
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, COUNTERSHAFT LOW GEAR & REVERSE GEAR
23414-HC0-000
|
$31.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT SECOND (17T)
23421-HM3-670
|
$63.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT SECOND (43T)
23431-HM3-670
|
$149.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH (22X25X10)
23432-HM3-670
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT THIRD (21T)
23441-HM3-670
|
$97.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT THIRD (39T)
23451-HM3-670
|
$119.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, COUNTERSHAFT THIRD
23452-HC0-000
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FOURTH (24T)
23461-HM3-670
|
$95.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, SPLINE (22X25X9.5)
23462-HM3-670
|
$14.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FOURTH (35T)
23471-HM3-670
|
$167.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, MAINSHAFT FIFTH (28T)
23481-HM3-670
|
$121.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT FIFTH (33T)
23491-HM3-670
|
$101.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, BEARING SETTING
23521-HA0-000
|
$16.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, REVERSE IDLE (15T/33T)
23720-HM3-670
|
$157.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT, REVERSE IDLE
23730-HC4-000
|
$29.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, REVERSE IDLE GEAR
23732-HA0-000
|
$29.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, COUNTERSHAFT REVERSE (32T)
23751-HM3-670
|
$143.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET, DRIVE (13T)
23801-HB5-000
|
$61.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, FIXING
23811-HA5-670
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (14MM)
90402-HM3-670
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN (14MM)
90412-HA0-000
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPECIAL (17MM)
90451-KAE-010
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST (22MM)
90452-357-000
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, THRUST (20X30X1.5)
90453-KZ4-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, THRUST (25MM)
90456-MA6-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPLINE (22MM)
90464-444-000
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (22MM)
90601-329-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (63/22)
91001-MN8-911
Superseded by 91002-KY4-901
|
$28.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (63/22)
91001-436-003
Superseded by 91002-KY4-901
|
$28.25 | ||
|
Unavailable |
|||
|
#33
BEARING, RADIAL BALL (63/22)
91002-KY4-901
|
$28.25 | ||
|
Unavailable |
|||
|
#34
BEARING, RADIAL BALL (6203)
91004-HC0-003
|
$39.79 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL (62/22)
91005-KF0-008
Superseded by 91005-KS4-003
|
$46.87 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL (62/22)
91005-KS4-003
|
$46.87 | ||
|
Unavailable |
|||
|
#36
OIL SEAL (22X36X6)
91206-HB3-003
|
$10.39 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, SOCKET (6X16)
96600-06016-10
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
