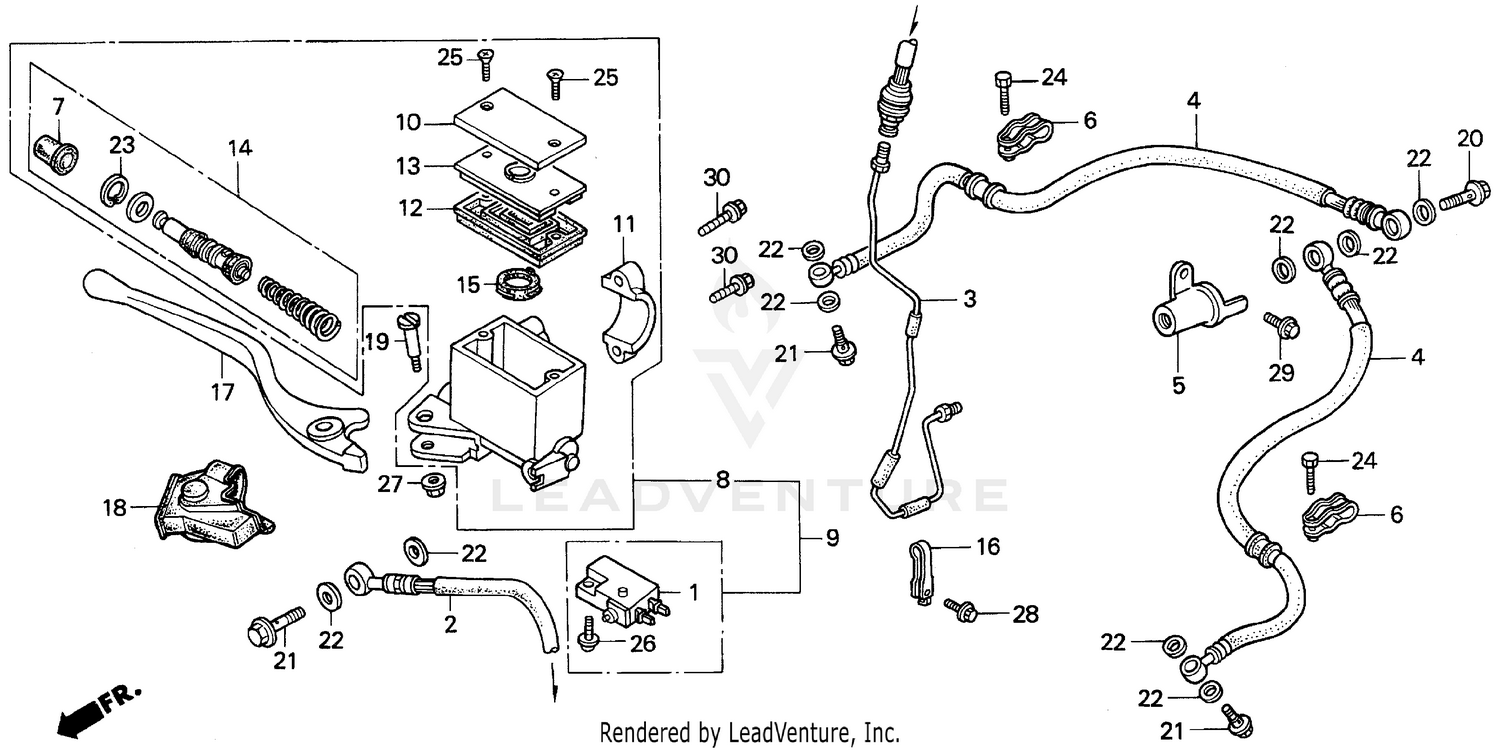

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
HOSE ASSY., FR. BRAKE (UPPER)
45126-HC0-671
|
$55.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, FR. BRAKE
45127-HC0-000
|
$23.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE ASSY., FR. BRAKE
45128-HC0-671
|
$86.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT (TWO-WAY) (NISSIN)
45129-HC0-016
|
$38.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, FR. BRAKE MIDDLE
45464-HB9-000
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)
45510-HM3-305
|
$225.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (COO)
45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#11
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
45520-MG7-006
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45521-HA2-006
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
MASTER CYLINDER SET
45530-KJ1-701
Superseded by 45530-KJ1-702
|
$59.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
MASTER CYLINDER SET
45530-KJ1-702
|
$59.94 | ||
|
Unavailable |
|||
|
#15
SEPARATOR
46666-HB9-006
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP B, FR. BRAKE HOSE (NOT AVAILABLE)
51203-HA7-670
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, R. HANDLEBAR
53175-HM3-000
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, R. HANDLE LEVER
53176-HC0-671
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HANDLE LEVER PIVOT
90114-166-006
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X34)
90145-MR8-004
Superseded by 90145-MR8-014
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X34)
90145-MR8-014
|
$7.95 | ||
|
Unavailable |
|||
|
#21
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$8.20 | ||
|
Unavailable |
|||
|
#22
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (5X16)
92101-05016-0A
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#27
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
