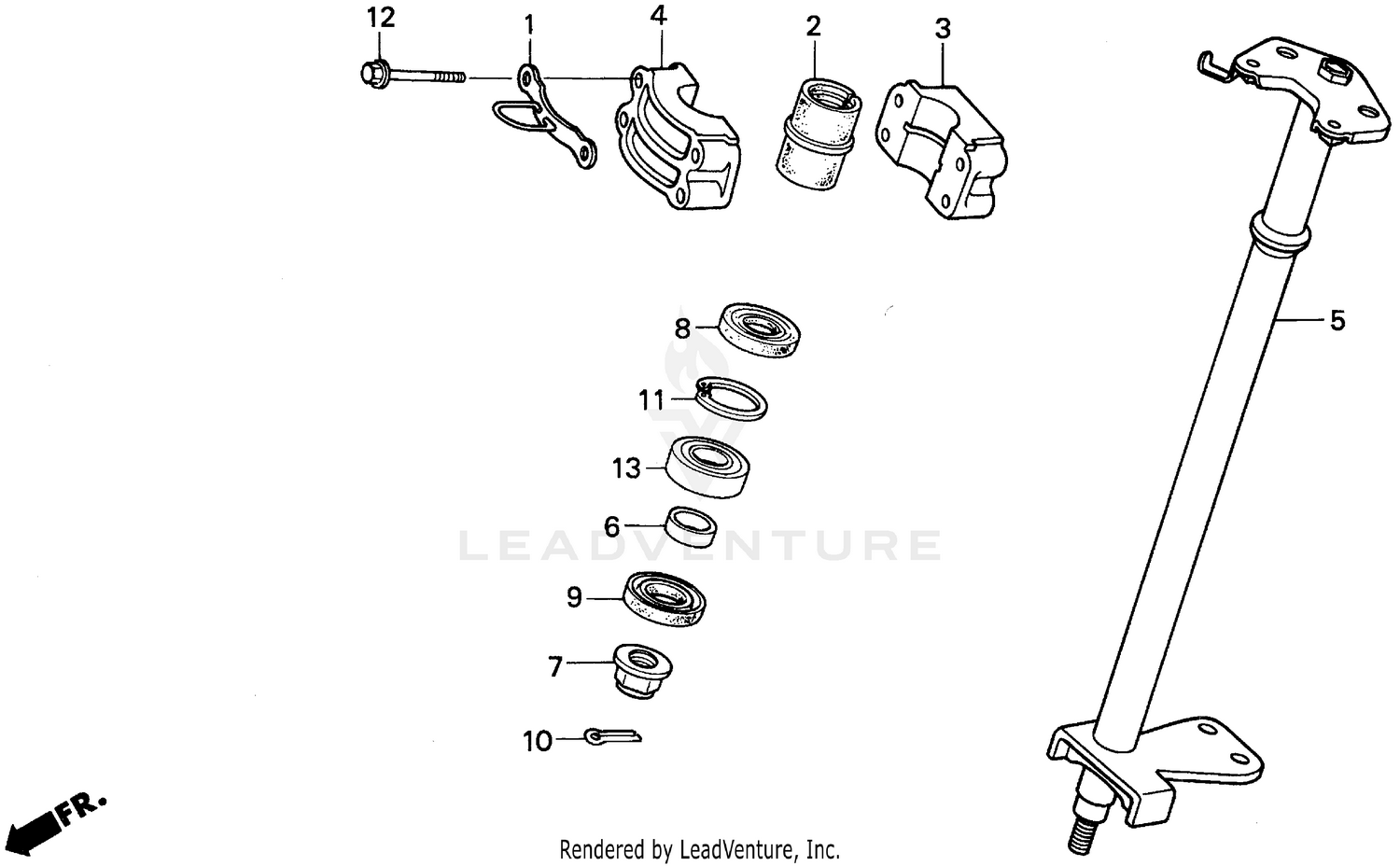

Steering Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, FR. BRAKE (UPPER)
45461-HC0-670
|
$11.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH, STEERING (YAMASHITA)
53221-HB9-670
|
$40.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, STEERING SHAFT (INNER)
53223-HB3-000
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, STEERING SHAFT (OUTER)
53224-HB3-000
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, STEERING (NOT AVAILABLE)
53310-HM3-000
|
$256.15 | ||
|
Unavailable |
|||
|
#6
COLLAR, STEERING SHAFT
53317-HB9-000
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, U (14MM)
90305-GE8-003
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL (27X40X6) (ARAI)
90753-GB4-681
Superseded by 90753-GK4-003
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL (27X40X6) (ARAI)
90753-GK4-003
|
$10.04 | ||
|
Unavailable |
|||
|
#9
DUST SEAL (35X20X7) (ARAI)
91257-HB3-003
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#10
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#10
PIN, SPLIT (3.0X45)
94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#11
CIRCLIP (INNER) (40MM)
94520-40000
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (8X55)
95701-08055-00
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (6203UU)
96150-62033-10
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
