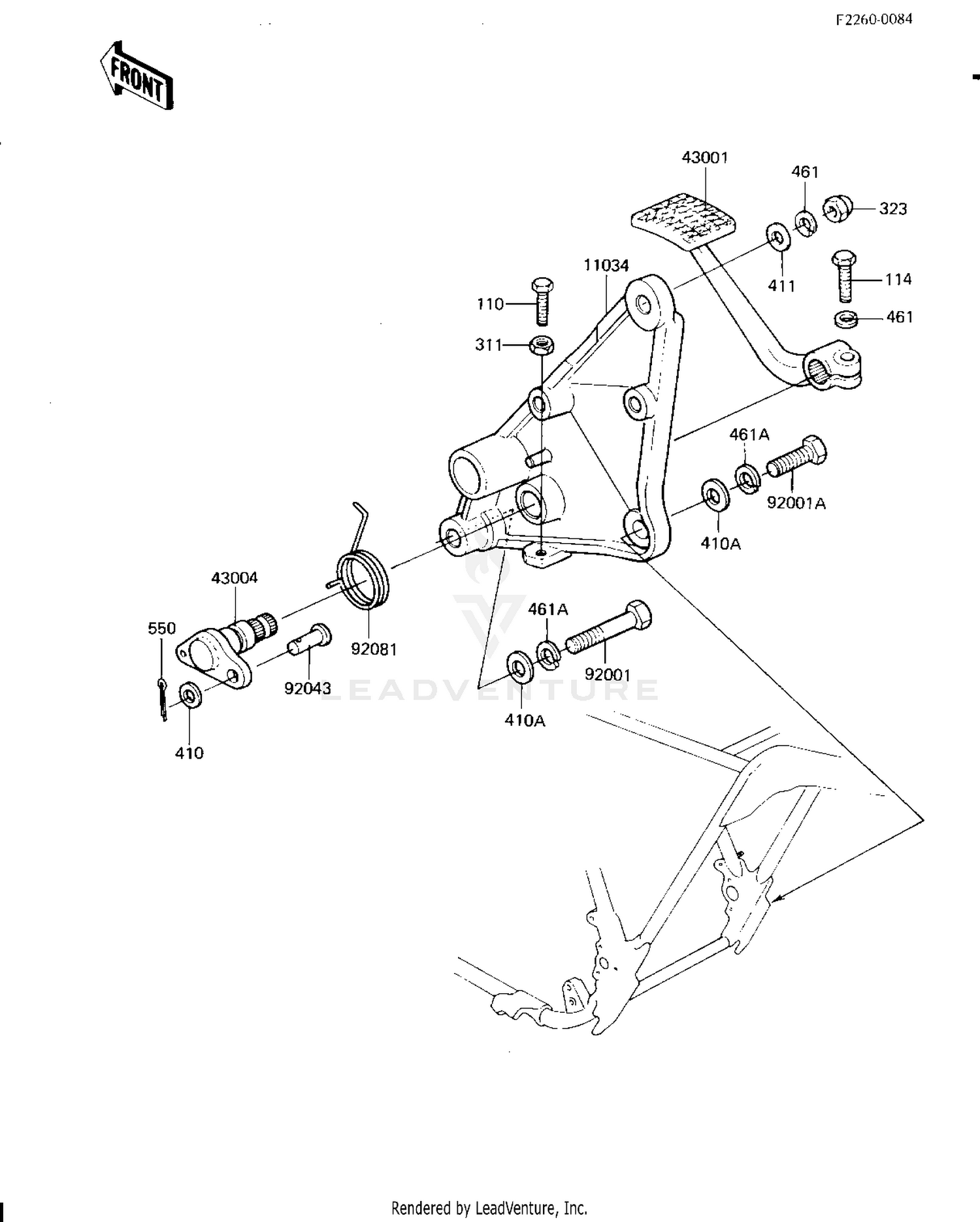

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11034
BRACKET,BRAKE PEDAL
11034-1263
|
$155.18 | ||
|
Available to order. Add to View Price |
|||
|
#43001
PEDAL,BRAKE
43001-1024
|
$127.67 | ||
|
Available to order. Add to View Price |
|||
|
#43004
SHAFT,BRAKE
43004-1006
|
$53.13 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT-HEX HEAD,10X46
92007-029
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,HEX HEAD,10X25
92007-045
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN RR BRAKE CABLE
92043-107
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL RT
92081-1088
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT-SMALL-UPSET,8X25
115G0825
Superseded by 115BA0825
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#323
NUT,CAP,8M/M
323N0800
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X20
550D2020
Superseded by 550AA2020
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
