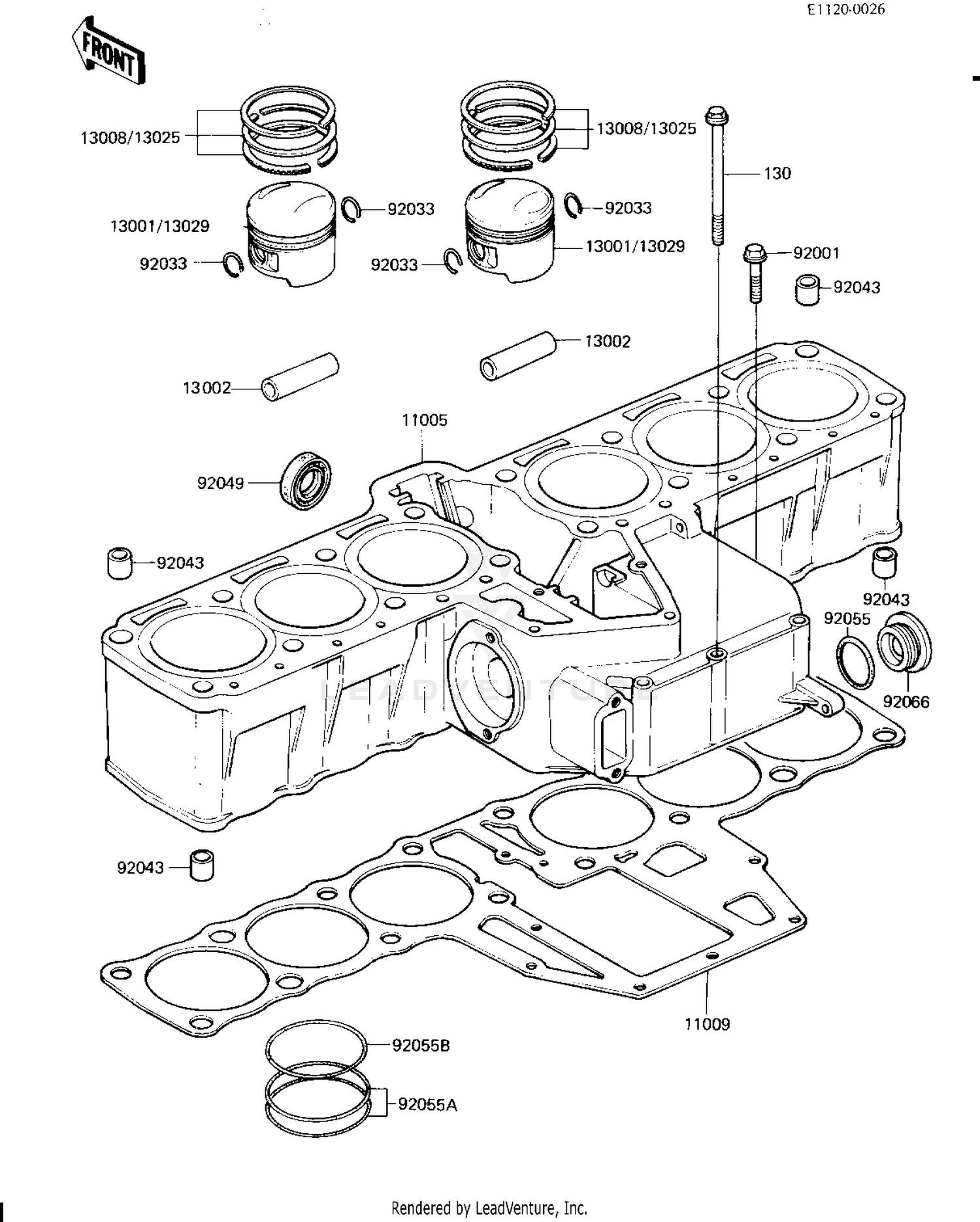

Cylinder/pistons Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11005
CYLINDER-ENGINE
11005-1104
|
$1,460.84 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CYLINDER BASE
11009-1101
Superseded by 11060-1472
|
$56.23 | ||
|
Available to order. Add to View Price |
|||
|
#13001
PISTON-ENGINE,STD
13001-1113
|
$81.44 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-032
|
$26.54 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON,STD
13008-5059
|
$94.87 | ||
|
Available to order. Add to View Price |
|||
|
#13025
RING-SET-PISTON-L
13025-5025
|
$105.69 | ||
|
Available to order. Add to View Price |
|||
|
#13029
PISTON-ENGINE L,O/S
13029-1061
|
$110.78 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT
92003-202
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92036-005
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,11X14X12.3
92043-1266
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,TC17317
92049-1028
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,27.7X2.4
92055-091
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING,67MM
92055-1032
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
0 RING,67.5MM
92055-1035
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,30X8
92067-024
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT,FLANGED,6X85
130G0685
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
