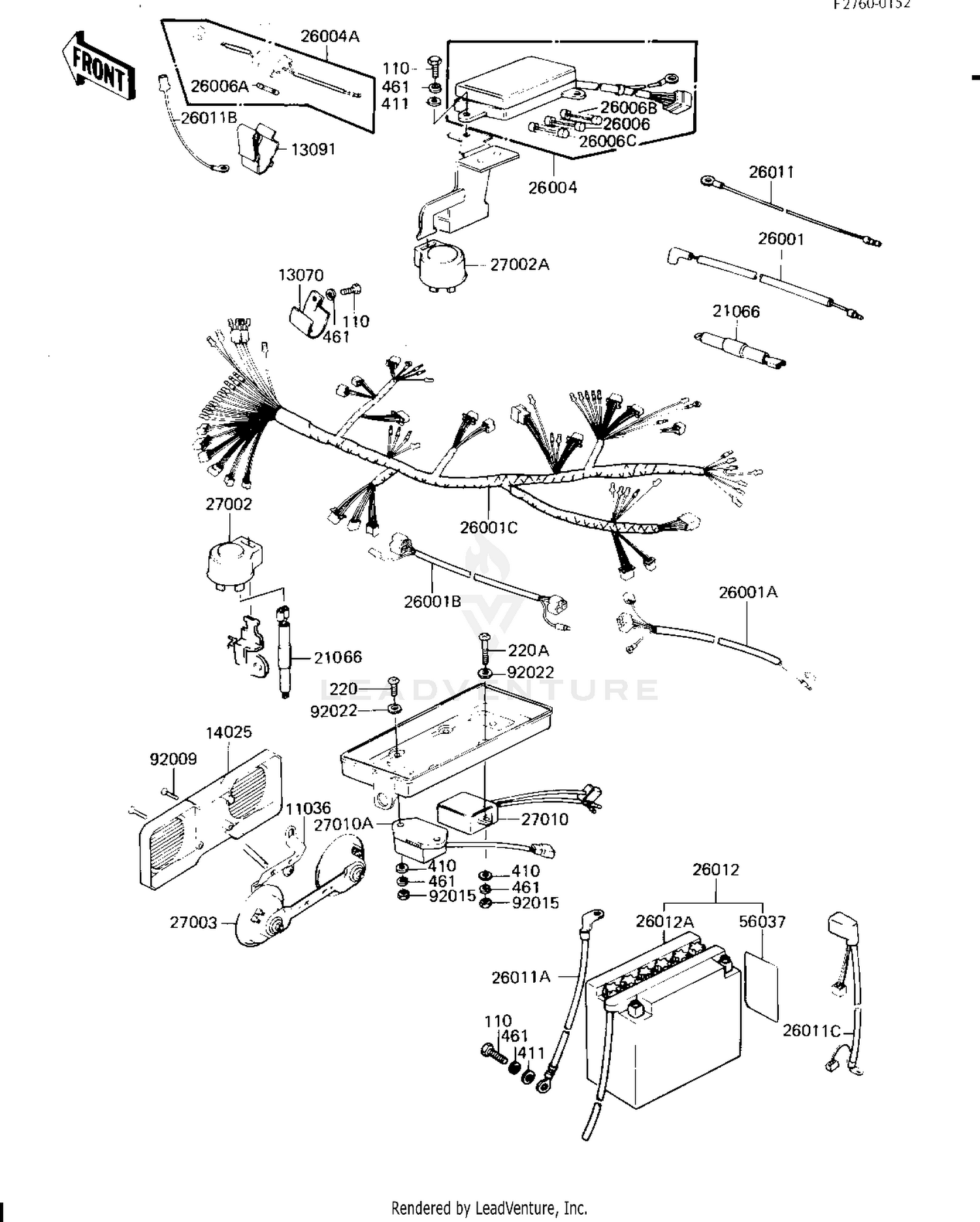

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11036
BRACKET,HORN COVER
11036-1028
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,MAIN HARNESS
13070-1022
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,ACCESSORY FUSE
13091-1102
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,HORN
14025-1310
|
$41.44 | ||
|
Available to order. Add to View Price |
|||
|
#21066
REGULATOR
21066-026
|
$24.27 | ||
|
Available to order. Add to View Price |
|||
|
#26001
WIRING HARNESS,SUB
26001-1064
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#26001A
HARNESS,REGULATOR
26001-1374
|
$16.43 | ||
|
Available to order. Add to View Price |
|||
|
#26001B
HARNESS,WARNER
26001-1375
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#26001C
HARNESS,MAIN
26001-1379
|
$210.59 | ||
|
Available to order. Add to View Price |
|||
|
#26004
FUSE ASSY
26004-1009
|
$67.00 | ||
|
Available to order. Add to View Price |
|||
|
#26004A
FUSE-ASSY
26004-1018
|
$56.69 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,GLASS TUBE,6.4X30,10
26006-1002
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006B
FUSE,2A,L=25M/M
26006-1004
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#26006C
FUSE,GLASS TUBE,6.4X25,30
26006-1005
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE,LEAD
26011-095
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE,BATTERY GROUND
26011-1038
|
$42.16 | ||
|
Available to order. Add to View Price |
|||
|
#26011B
WIRE-LEAD,ACCESSORY G
26011-1100
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#26011C
WIRE-LEAD,BATTERY
26011-1160
|
$26.90 | ||
|
Available to order. Add to View Price |
|||
|
#26012
YUA BAT Y50-N18L-A
26012-1012
|
$96.95 | ||
|
Available to order. Add to View Price |
|||
|
#26012A
26012-1012 (Canada)
26012-1019
|
|||
|
Unavailable |
|||
|
#27002
RELAY-ASSY
27002-011
Superseded by 27002-0003
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#27002A
RELAY,TURN SIGNAL
27002-016
|
$53.41 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1037
|
$182.58 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,TURN SIGNAL OP
27010-1016
|
$221.16 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,RESERVE LIGHTI
27010-1024
|
$101.08 | ||
|
Available to order. Add to View Price |
|||
|
#56037
LABEL-WARNING,BATTERY
56040-1036
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW-CSK
221C0430
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK 6MM
92017-014
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X16X1.2
92022-024
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X20
220B0620
Superseded by 220AA0620
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,6X35
220B0635
Superseded by 220AA0635
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
