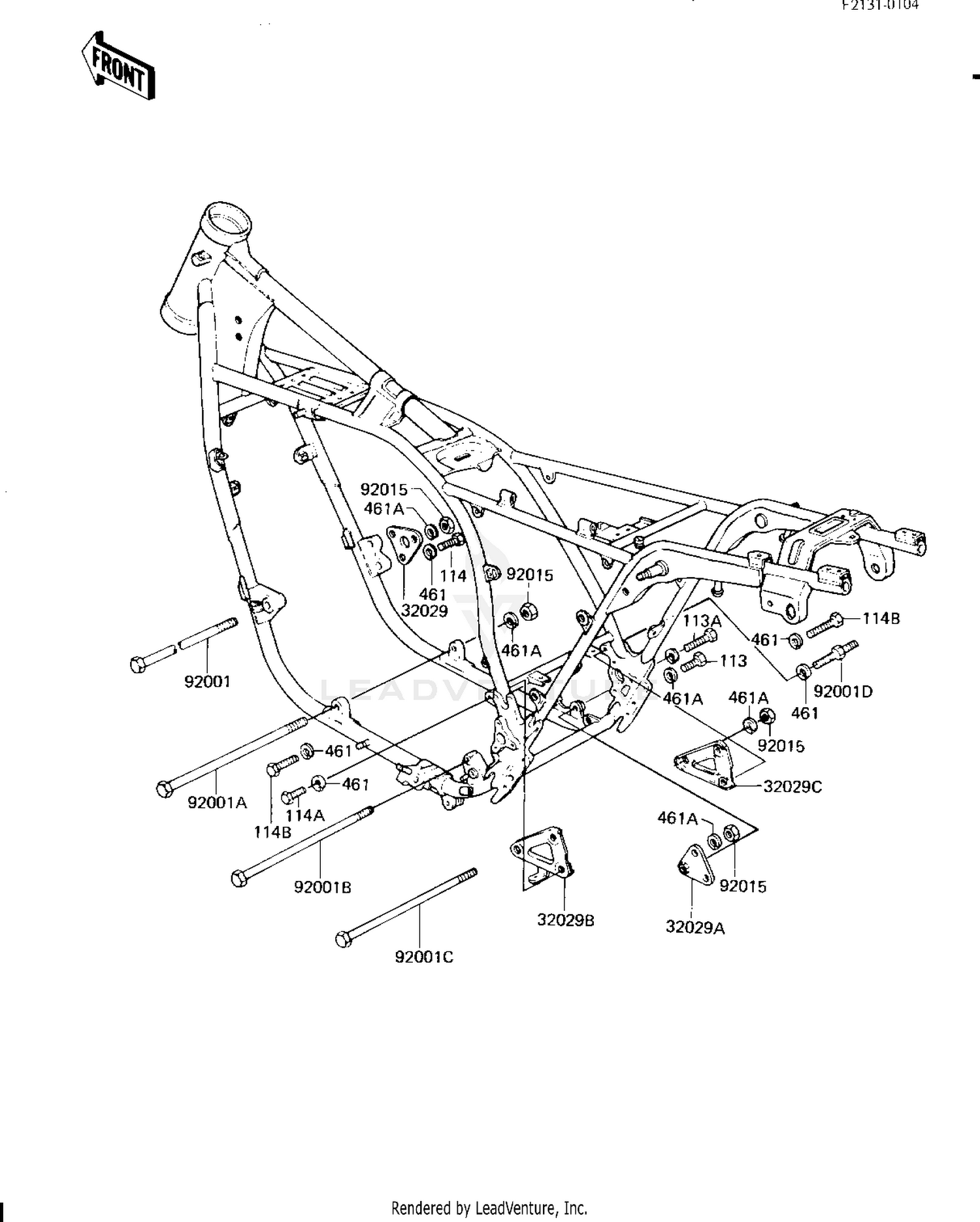

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32029
BRACKET,ENGINE,FRONT
32029-1061
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#32029A
BRACKET,ENGINE,REAR
32029-1062
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#32029B
BRACKET,ENGINE,REAR
32029-1063
|
$36.64 | ||
|
Available to order. Add to View Price |
|||
|
#32029C
BRACKET,ENGINE,REAR
32029-1064
|
$34.62 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,HEX HEAD,10X369
92001-1126
|
$27.97 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,HEX HEAD,10X3/3
92001-1127
|
$31.25 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,HEX HEAD,10X305
92001-1128
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,HEX HEAD,10X287
92001-1129
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#92001D
BOLT,ENGINE BRACKET
92001-1400
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM
92015-1429
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#113
BOLT,HEX HEAD,10X16
113G1016
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#113A
BOLT,HEX HEAD 10X40
92001-1253
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#114
BOLT,8X22
114G0822
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#114A
BOLT-SMALL-UPSET,8X25
115G0825
Superseded by 115BA0825
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#114B
BOLT-SMALL-UPSET
115G0840
Superseded by 115BA0840
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
