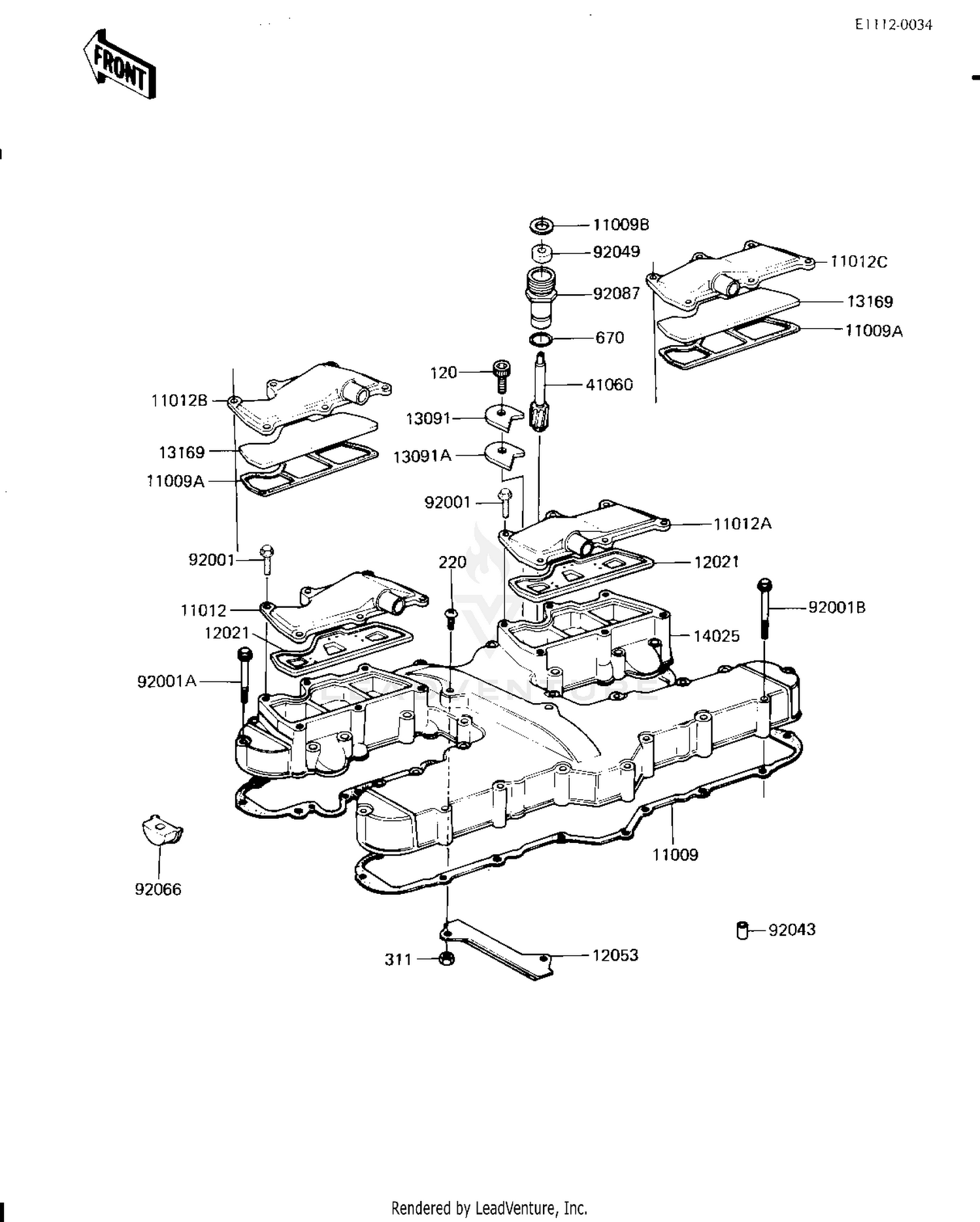

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,CYL. HEAD CUR.
11009-1095
Superseded by 11060-1471
|
$155.03 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET (Canada)
11009-1170
|
|||
|
Unavailable |
|||
|
#11009B
GASKET,TACHOMETER GER
92065-103
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,L.H,REED VALVE
11012-1057
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,R.H,REED VALVE
11012-1058
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#11012B
CAP,L.H (Canada)
11012-1107
|
|||
|
Unavailable |
|||
|
#12021C
CAP,R.H (Canada)
11012-1108
|
|||
|
Unavailable |
|||
|
#12021
VALVE ASSY,REED
12021-1004
|
$156.30 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE,CHAIN,CAM
12053-1026
|
$27.97 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,TACHOMETER2.3T
13091-1008
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#13091A
HOLDER,TACHOMETR,3.2T
13091-1009
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE (Canada)
13169-1221
|
|||
|
Unavailable |
|||
|
#14025
COVER,CYLINDER HEAD
14025-1312
|
$444.83 | ||
|
Available to order. Add to View Price |
|||
|
#41060
GEAR,TACHOMETER,10T
13223-011
|
$91.19 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,HEX HEAD,6X20
92001-1100
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,HEX HEAD,6X52
92001-1192
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,HEX HEAD,6X45
92003-092
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL
92050-075
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,CAMSHAFT
92066-1030
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#92087
GUIDE,TACHOMETER GEAR
92087-010
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X14
120P0614
Superseded by 120CA0614
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670D1510
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
