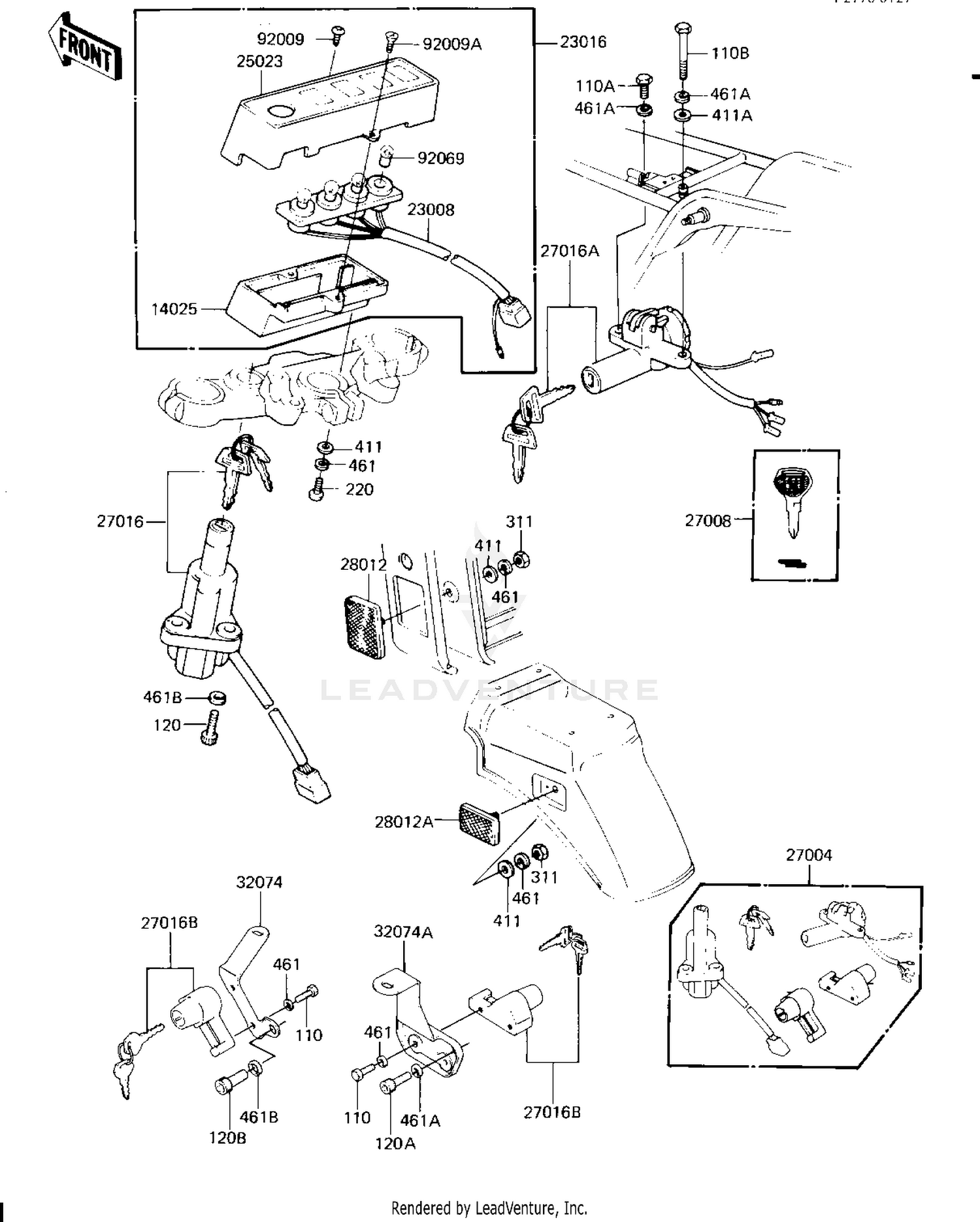

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14025
COVER,PILOT LAMP,LOWE
14025-1117
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET ASSY,PILOT LAM
23008-1041
|
$41.16 | ||
|
Available to order. Add to View Price |
|||
|
#23016
LAMP ASSY,PILOT
23016-1014
|
$81.42 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER,PILOT LAMP,UPPE
25023-1014
|
$58.37 | ||
|
Available to order. Add to View Price |
|||
|
#27004
SWITCH-ASSY
27004-5371
|
$326.62 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-1103
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#27016
IGNITION&STEERING ASY
27016-5026
|
$180.07 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK ASSY,SEAT
27016-5027
|
$125.93 | ||
|
Available to order. Add to View Price |
|||
|
#27016B
LOCK ASSY,HELMET
27016-5036
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX
28012-1003
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-1054
Superseded by 28012-1088
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#32074
BRACKET-LOCK,HLMT,LH
32074-1020
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#32074A
BRACKET-LOCK,HLMT,RH
32074-1021
|
$15.43 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,3.5X10
92009-1073
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,CNTSNK HED,4X10
92009-1074
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB 12V 3W
92069-018
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET,5X10
110B0510
Superseded by 112AA0510
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#110B
BOLT,HEX HEAD,6X50
110G0650
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT,SOCKET,8X22
120P0822
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,6X10
120S0610
Superseded by 120CB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#120B
BOLT-SOCKET
120S0814
Superseded by 120CB0814
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN+-
214B0516A
Superseded by 214AA0516
|
$0.17 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN-SMALL
411B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#411A
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461B
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
